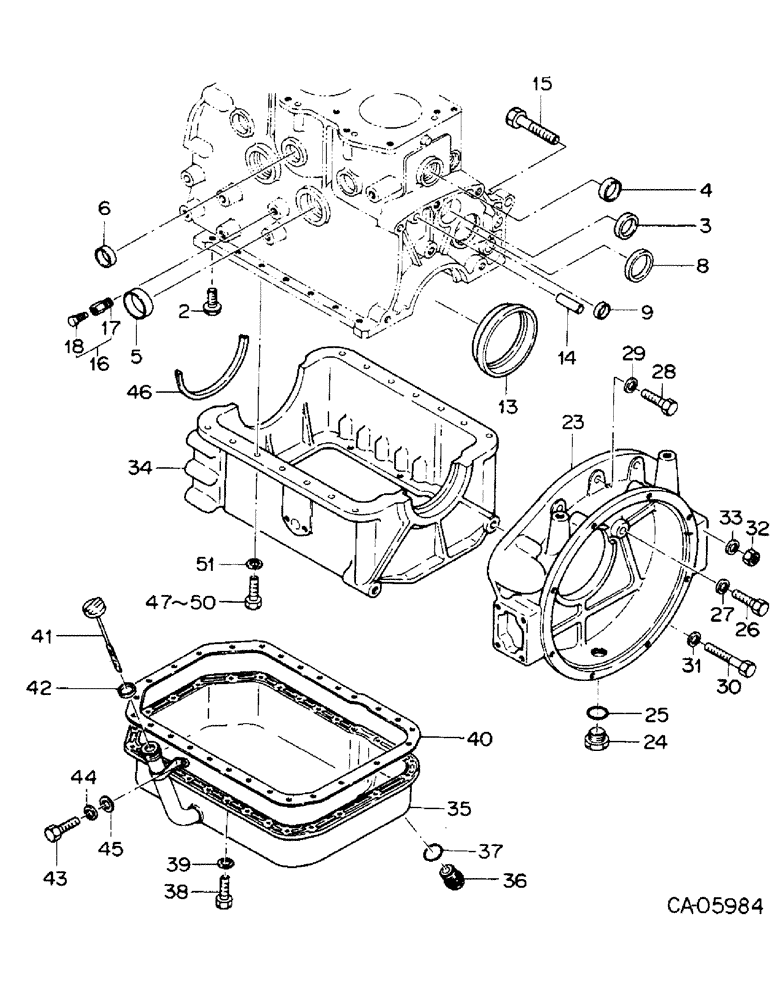

Запчасти Case 4140 (12-16) - CYLINDER BLOCK AND CRANKCASE, ISUZU ENGINE (04) - Drive Train

1

74833C91

BLOCK ASSY, cylinder, Includes ref. nos. 2 thru 7

1шт.

2

73985C1

BOLT

8шт.

3

73989C1

PLUG, cup D-38.1

1шт.

4

73988C1

PLUG, cup D-36

1шт.

5

73946C1

PLUG, cup D-44.5

2шт.

6

73990C1

PLUG, cup D-31.7

3шт.

7

73992C1

PLUG, tappet chamber

3шт.

8

73994C1

PLUG, cam bearing

1шт.

9

73995C1

PLUG, oil gallery

2шт.

10

73996C1

PLUG, oil gallery

2шт.

11

74834C1

PLUG, oil gallery

3шт.

12

73999C1

FITTING, rocker oil feed

1шт.

13

74498C1

SEAL, crankshaft

1шт.

14

74499C1

PIN, dowel

1шт.

15

74502C1

BOLT, shoulder

1шт.

16

74019C91

VALVE ASSY, water drain

1шт.

17

74495C1

ADAPTER, water drain

1шт.

18

74496C1

PLUG, water drain

1шт.

19

74505C1

PLATE, cylinder block front

1шт.

20

74506C1

GASKET, plate

1шт.

21

74835C1

PIN, dowel

2шт.

22

74508C1

BOLT, cyl block frt plate

3шт.

23

74530C1

HOUSING, flywheel

1шт.

24

74531C1

PLUG, screw

1шт.

25

74532C1

GASKET, plug

1шт.

26

74537C1

BOLT, flywheel housing

3шт.

27

74570C1

WASHER, lock

3шт.

28

74836C1

BOLT, flywheel housing

3шт.

29

74536C1

WASHER, lock

3шт.

30

74837C1

BOLT, flywheel housing

2шт.

31

74570C1

WASHER, lock

2шт.

32

74535C1

NUT

1шт.

33

74536C1

WASHER, lock

1шт.

34

74838C1

CRANKCASE

1шт.

35

74839C91

PAN W/DRAIN PLUG, oil

1шт.

36

74548C1

PLUG, oil drain

1шт.

37

74549C1

GASKET, plug

1шт.

38

74840C1

BOLT, oil pan

27шт.

39

74524C1

WASHER, lock

27шт.

40

74841C1

GASKET, oil pan

1шт.

41

74842C1

GAGE ASSY, level, Loader serial no. 360 & below, See engine & mounting for serial no. 361 & above

1шт.

42

74843C1

GASKET, level gage assy

1шт.

43

74844C1

BOLT, oil filter tube

1шт.

44

74558C1

WASHER, lock

1шт.

45

74845C1

WASHER

1шт.

46

74555C1

SEAL, crankcase

2шт.

47

74846C1

BOLT, oil pan

10шт.

48

74847C1

BOLT, oil pan

4шт.

49

74848C1

BOLT, oil pan

3шт.

50

74849C1

BOLT, oil pan

1шт.

51

74558C1

WASHER, lock

18шт.

52

74850C1

SWITCH, oil pressure warning

1шт.

53

74851C1

ADAPTER

1шт.

74970C91

PACKAGE, engine gasket overhaul, Consists of

1шт.

73951C1

WASHER

1шт.

74824C1

GASKET

1шт.

74828C1

GASKET

1шт.

74831C1

GASKET

2шт.

74498C1

SEAL

1шт.

74506C1

GASKET

1шт.

74532C1

GASKET

1шт.

74549C1

GASKET

1шт.

74841C1

GASKET

1шт.

74843C1

GASKET

1шт.

74555C1

SEAL

2шт.

74779C1

GASKET

1шт.

74855C1

GASKET

1шт.

74860C1

GASKET

1шт.

74525C1

WASHER

2шт.

74526C1

SEAL

1шт.

74528C1

GASKET

1шт.

74613C1

GASKET

1шт.

74615C1

GASKET

1шт.

74553C1

GASKET

WASHER

4шт.

73975C1

WASHER

2шт.

74900C1

RING

1шт.

74593C1

GASKET

1шт.

74904C1

GASKET

1шт.

74597C1

WASHER

2шт.

74917C1

GASKET

1шт.

77954C91

ENGINE ASSY, short block

1шт.
