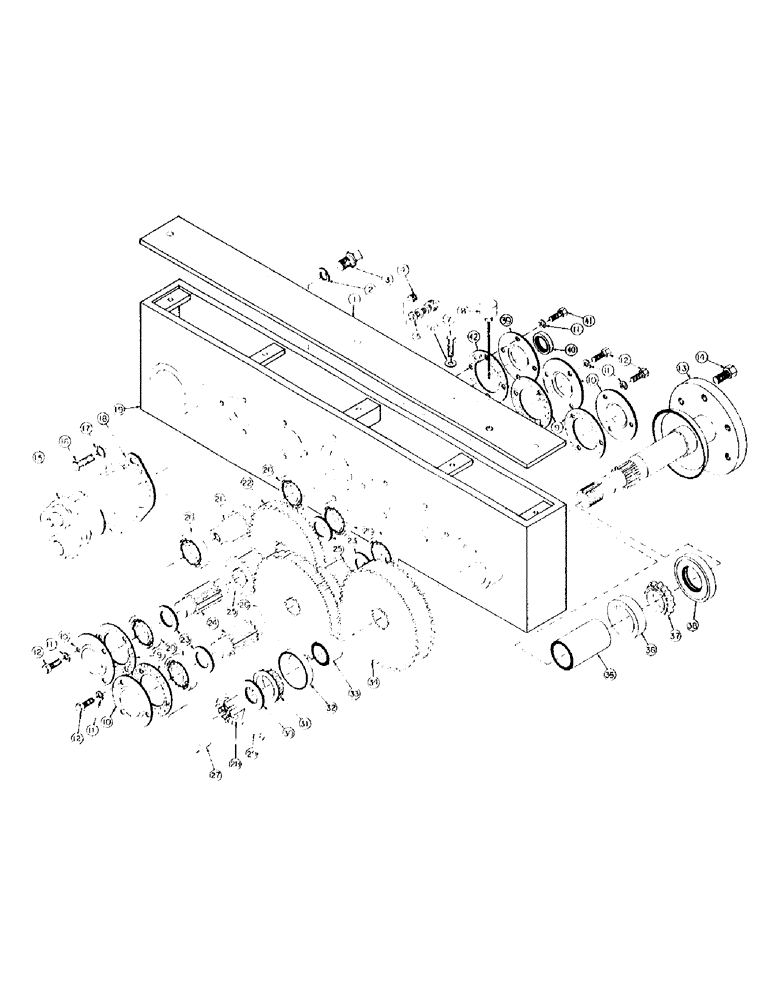

Запчасти Case 4140 (07-09) - DRIVE TRAIN, DRIVE AXLE - FRONT & REAR (04) - Drive Train

75083C91

CASE ASSY., gear, Serial no. 300 & below, Gas, Serial no. 306 & below, Diesel

2шт.

78131C91

CASE ASSY., gear, Serial no. 301 & above, Gas, Serial no. 307 & above, Diesel

2шт.

1

75084C1

BAR, gear case, cover

2шт.

2

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

12шт.

3

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

12шт.

4

444705

PLUG,Hex Soc, 1/2"-14, Brass

1/2 auto hex, socket

2шт.

5

72070C1

PLUG, drain

2шт.

6

NLS

NO LONGER SERVICED

.438 x 1.000 x .064

10шт.

7

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

10шт.

8

75085C1

GAGE, dipstick

2шт.

9

72071C1

GASKET

cover

8шт.

10

72072C1

COVER

8шт.

11

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

56шт.

12

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

48шт.

13

75086C1

AXLE

4шт.

14

364451R1

BOLT,9/16" - 18 x 1 7/32"

S, lug (Replaces 354451R1)

24шт.

15

75108C91

MOTOR, HYDRAULIC

MOTOR ASSY., hydrostatic, Refer to hydrostatic motor for service parts

4шт.

15

DR74973

REMAN-HYDROSTAT MOTO

Return No, HYDRAULIC MOTOR - for N.A. Only

1шт.

15

DC74973

CORE-HYDROSTAT MOTOR

Return No, HYDRAULIC MOTOR - for N.A. Only

1шт.

16

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

4шт.

17

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

18

72264C1

GASKET

hydrostatic motor

2шт.

19

75087C1

HOUSING, gear drive, Gas serial loader number 300 and below, Diesel loader serial number 306 and below

2шт.

19

77971C1

HOUSING, gear drive, Gas loader serial number 301 and above, Diesel loader serial number 307 and above

2шт.

20

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, primary idler

20шт.

21

75088C1

SHAFT

input, Gas loader serial number 300 and below, Diesel loader serial number 306 and below

2шт.

21

77972C1

SHAFT, input, Gas loader serial number 301 and above, Diesel loader serial number 307 and above

2шт.

22

75089C1

GEAR, bull

4шт.

23

73308C1

THRUST WASHER

spacer, 10 ga.

16шт.

73309C1

THRUST WASHER

spacer, 14 ga.

16шт.

77020C1

WASHER

spacer, 18 ga., Use 16 (Or as required)

16шт.

24

75090C1

SHAFT

idler

8шт.

25

75091C1

GEAR, intermediate, pinion

8шт.

26

75092C1

GEAR

secondary bull

4шт.

27

75093C1

CAP

axle

4шт.

28

75094C1

NUT

axle

4шт.

29

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

4шт.

30

75095C1

WASHER, thrust

4шт.

31

455387C91

BEARING ASSY,41.288 mm ID x 26.743 mm

4шт.

32

455386C1

BEARING, CUP

4шт.

33

75096C1

SPACER

axle gear, inner

4шт.

34

75097C1

GEAR, axle

4шт.

35

75098C1

SPACER, axle gear, outer

4шт.

36

533727R1

BEARING, CUP

CUP, inner wheel bearing

4шт.

37

533726R91

BEARING

CONE, inner wheel bearing

4шт.

38

75032C1

SEAL

wheel

4шт.

39

75099C1

RETAINER, pinion, Gas loader serial number 300 and below, Diesel loader serial number 306 and below

2шт.

39

77973C1

RETAINER, pinion, Gas loader serial number 301 and above, Diesel loader serial number 307 and above

2шт.

40

73936C1

SEAL

Serial no. 301 & above, Gas, Serial no. 307 & above, Diesel

1шт.

41

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 type 5, Serial no. 301 & above, Gas, Serial no. 307 & above, Diesel

4шт.

42

72071C1

GASKET

cover, Serial no. 300 & below, Serial no. 306 & below, Diesel

1шт.

42

77394C1

GASKET

cover, Serial no. 301 & above, Serial no. 307 & above, Diesel

1шт.
