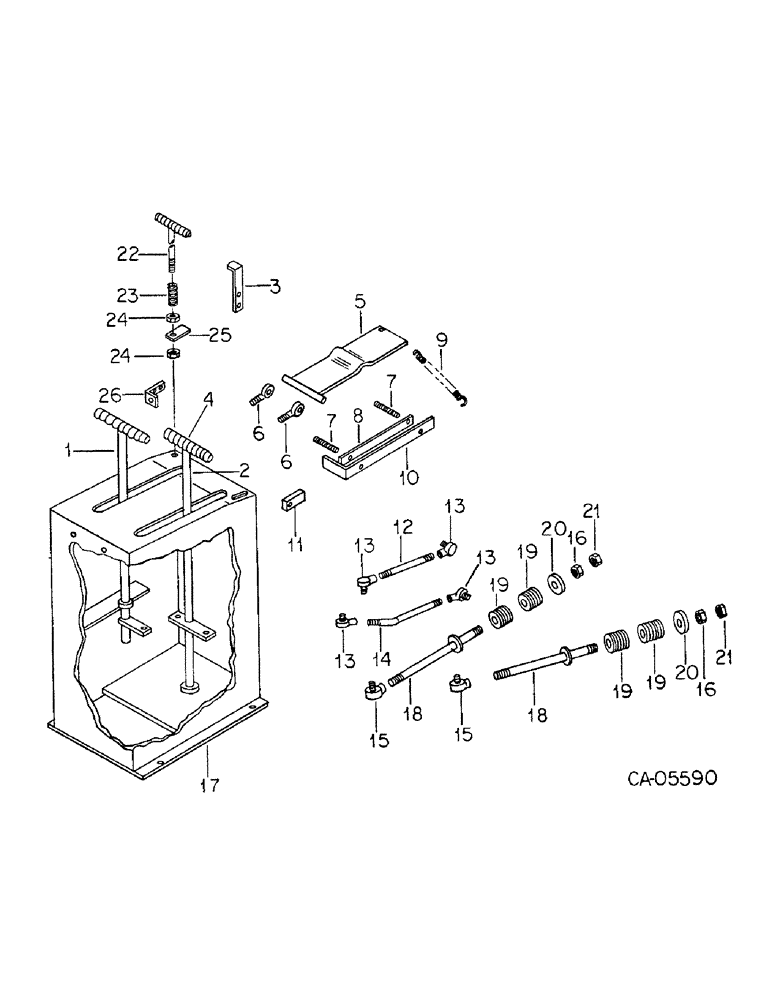

Запчасти Case 4130 (07-1) - DRIVE TRAIN, HYD & HYDROSTATIC CONTROLS, LOADER (04) - Drive Train

1

72016C1

LEVER, hyd control, Furnished as part of 73254C91

1шт.

2

73251C1

ROD, drive control, lever, Furnished as part of 73254C91

1шт.

3

72031C1

SUPPORT, choke, lever

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

9413950

LOCK NUT,1/4"-20, GB

NUT, 1/4 phc p/t lock type 5

1шт.

4

72017C1

CONDUIT, hyd. & drive lever, handle, Furnished as part of 73254C91

2шт.

72210C1

GRIP

handle

4шт.

5

72021C1

PLATE, control lock

1шт.

6

72020C1

BOLT, eye

2шт.

120376

NUT,5/16"-18, G5

2шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 5/16 phc p/t lock type 5

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

7

72188C1

SPRING

2шт.

8

72023C1

BAR, friction - loose

1шт.

9

72211C1

SPRING

tension

1шт.

10

72024C1

BAR, friction, mounted

1шт.

180048

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

1/4 x 2-1/2 type 5

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

11

72032C1

BAR, choke cable retainer

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

9413950

LOCK NUT,1/4"-20, GB

NUT, 1/4 phc p/t lock type 5

1шт.

12

73252C1

STUD, tilt, rod

1шт.

120368

NUT,5/16"-24, G5

2шт.

13

72212C1

END ASSY.

END, rod

4шт.

274558

FAN SWITCH

5/16-NF phc p/t lock type 5

3шт.

14

928876C1

STUD, lift, rod

1шт.

120368

NUT,5/16"-24, G5

2шт.

15

72554C1

END

5/16 rod

2шт.

232-4615

LOCK NUT,5/16"-24, GC

5/16-NF phc p/t lock type 5

2шт.

16

120368

NUT,5/16"-24, G5

2шт.

17

73254C91

HOUSING ASSY, control, console

1шт.

18

73255C1

ROD

drive control

2шт.

274558

FAN SWITCH

5/16-NF phc p/t lock type 5

2шт.

19

138541C1

SET

PACKAGE, spring, Contains 4 springs

1шт.

20

72365C1

THRUST WASHER

thrust

2шт.

21

232-4615

LOCK NUT,5/16"-24, GC

5/16-NF phc p/t lock type 5

2шт.

22

72029C1

HANDLE, lockout tee

1шт.

23

72188C1

SPRING

1шт.

24

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

25

72030C1

BAR, lock

1шт.

26

72672C1

SUPPORT, switch

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.
