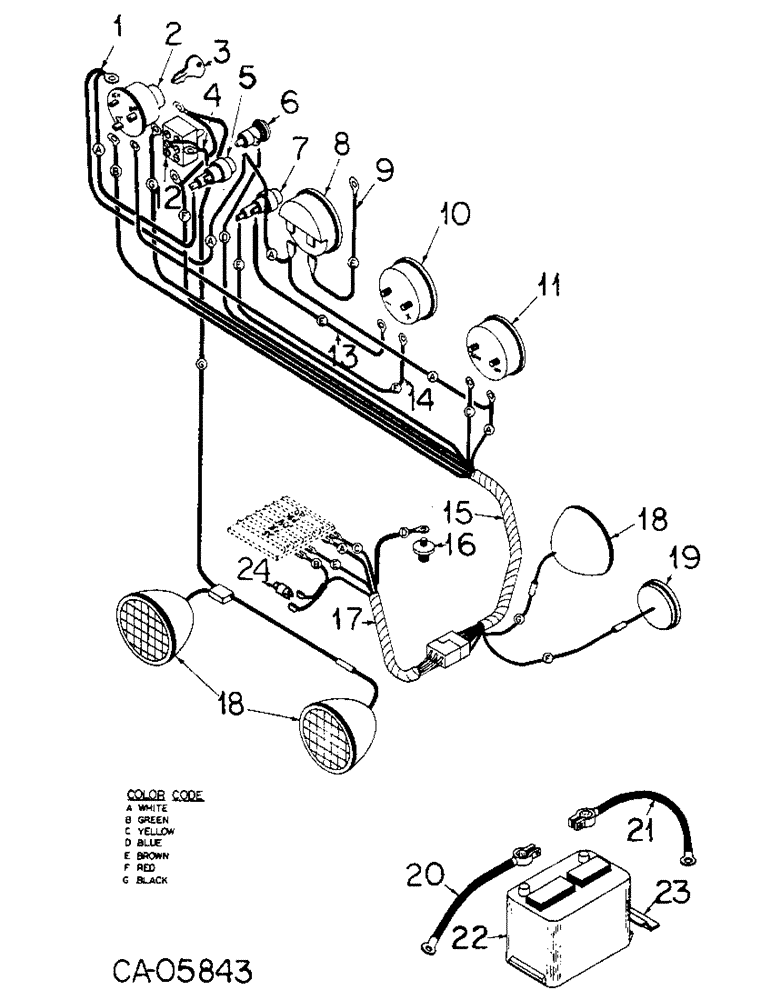

Запчасти Case 4130 (08-5) - ELECTRICAL, ELECTRICAL & LIGHTING (06) - ELECTRICAL

1

73770C1

CABLE, jumper - sw-fuse-lt

1шт.

2

72244C1

IGNITION SWITCH

SWITCH, ignition

1шт.

3

72243C1

KEY

ignition

1шт.

4

73408C1

CABLE, jumper - fuse to light switch

1шт.

5

72277C1

HOLDER, 20 amp fuse

1шт.

432644

FUSE,20 Amp, Type SFE

20 amp - SFE 20

1шт.

6

72242C1

LIGHT, indicator

1шт.

7

72245C1

HOLDER, 30 amp fuse

1шт.

147686

FUSE,30 Amp, Type SFE

30 amp - SFE 30

1шт.

8

72241C1

METER

hour

1шт.

9

72145C1

CABLE, ground, Serial Range: -554

1шт.

9

77696C1

CABLE, gauge ground, Start Serial: 555

1шт.

10

77591C1

AMMETER

, Start Serial: 555

1шт.

10

77592C91

KIT

ammeter, Loader serial no. 554 & below, Replaces 72597C1

1шт.

11

77589C1

GAUGE

oil pressure, Replaces 72239C1

1шт.

12

647646C91

SWITCH, light

1шт.

13

73771C1

CABLE, jumper - ammeter-fuse

1шт.

14

73772C1

CABLE, jumper - ammeter-switch

1шт.

15

73370C1

HARNESS

ASSY, canopy

1шт.

16

75825C1

SWITCH

sender

1шт.

17

73371C1

HARNESS

ASSY, engine

1шт.

18

72275C91

LIGHT ASSY, head, part of light att 72688C91

3шт.

373662R91

LAMP

replacement #4411, Furnished as part of 72275C91

3шт.

19

72276C91

LIGHT ASSY, tail, part of light att 72668C91

1шт.

20627R1

BULB,C2F, #194, 14V

LAMP, replacement #194, Furnished as part of 72276C91

1шт.

20

72136C1

CABLE

battery - neg

1шт.

21

73372C1

CABLE, battery - pos

1шт.

22

IHPR22NF

DRY BATTERY

1шт.

23

72349C1

CHANNEL, battery, hold down

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

24

121629C1

IGNITION SWITCH

SWITCH, neutral start

1шт.

77939C1

CABLE, jumper - fuel pump to terminal block

1шт.
