Запчасти Case 4130 (12-16) - POWER, ENGINE MOUNTING (04) - Drive Train

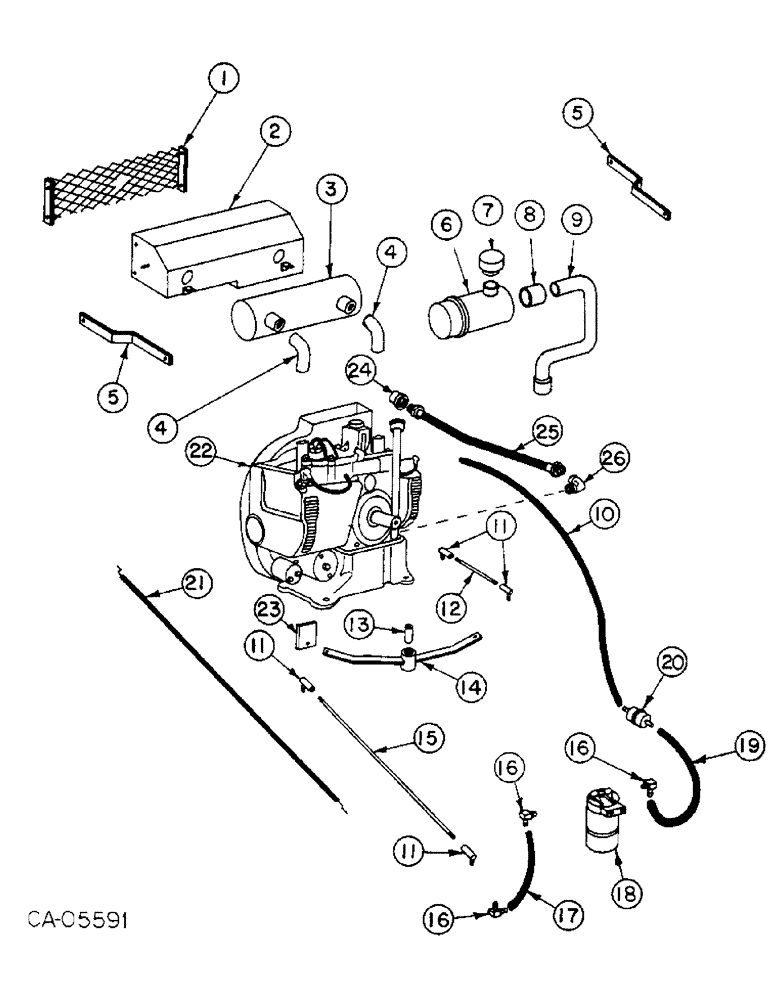

Схема запчастей Case 4130 - (12-16) - POWER, ENGINE MOUNTING (04) - Drive Train
18
26
2
11
16
16
20
16
4
24
9
5
4
11
12
23
6
11
7
14
8
5
17
15
10
1
21
3
13
22
25
19

Артикул

Название

Примечание

Количество

1

73256C1

SCREEN, exhaust shroud

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

4шт.

2

73257C1

SHROUD, exhaust

1шт.

3

73258C1

MUFFLER

exhaust

1шт.

4

73259C1

TUBE,1.625" OD, 6, 4.5" Length

exhaust, pipe

2шт.

73260C1

CLAMP, muffler

2шт.

72576C1

CLAMP

muffler

2шт.

5

73261C1

SUPPORT, exhaust shroud

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

6

73262C91

CLEANER ASSY, air, Consists of

1шт.

73264C1

ELEMENT

air cleaner

1шт.

73265C1

WASHER

gasket

1шт.

73266C1

SCREW

thumb

1шт.

73267C1

CLAMP

1шт.

73268C1

BAFFLE

1шт.

73269C1

CUP

1шт.

7

73263C1

CAP, air inlet

1шт.

8

73331C1

HOSE, air cleaner

1шт.

9

73270C1

PIPE, air cleaner

1шт.

995220R1

CLAMP

#28 hose

2шт.

10

NSS

NOT SOLD SEPARAT

HOSE, fuel, Use 24 in. from roll marked 427683C1

1шт.

72271C1

CLAMP, hose

2шт.

11

72266C1

END

1/4 rod

4шт.

126183

NUT,1/4"-28, G5, LH

1/4-NF lht type 5

8шт.

12

73272C1

STUD, governor, rod

1шт.

13

73273C1

SPACER, pivot, bushing

1шт.

14

73274C1

LEVER, throttle pivot, arm

1шт.

73275C1

BOLT, throttle pivot

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

15

73276C1

ROD, throttle

1шт.

16

72221C1

ELBOW

3шт.

17

NSS

NOT SOLD SEPARAT

HOSE, fuel, Use 17 in. from roll marked 427683C1

1шт.

72271C1

CLAMP, hose

2шт.

18

76449C1

PUMP

fuel

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4", Start Serial: 157

2шт.

18

76448C91

KIT

fuel pump service, Serial Range: -156

1шт.

19

72043C1

HOSE, fuel

1шт.

72271C1

CLAMP, hose

2шт.

20

72272C1

FILTER

fuel

1шт.

21

73279C1

CABLE

choke

1шт.

22

74968C91

ENGINE ASSEMBLY

ENGINE ASSY, onan nhcv-ms

1шт.

23

73281C1

BAR, high speed idle - stop

1шт.

24

119101

CAP,1/2" NPT

1/2 pipe

1шт.

25

73470C1

HOSE ASSY, oil drain

1шт.

26

108686

ELBOW,90 Degree, 1/2" NPT Street

1/2-90 deg street

1шт.

74020C91

KIT, product graphic, service and miscellaneous

1шт.

74021C92

ENGINE GASKET KIT

engine gasket, service and miscellaneous

1шт.

74022C91

KIT, carbon removal gasket, service and miscellaneous

1шт.

74024C91

KIT, engine overhaul, service and miscellaneous

1шт.

74025C1

PAINT, metallic green touch-up, 16 oz pressurized can, service kits and miscellaneous

1шт.

74026C1

PAINT, nn-metallic green touch-up, 13 oz pressurized can, service kits and miscellaneous

1шт.

77897C91

ENGINE ASSEMBLY

ENGINE ASSY, short block, service kits and miscellaneous

1шт.

Выбрано товаров: 55
