Запчасти Case 4130 (12-15) - POWER, HOUSING - ENGINE (04) - Drive Train

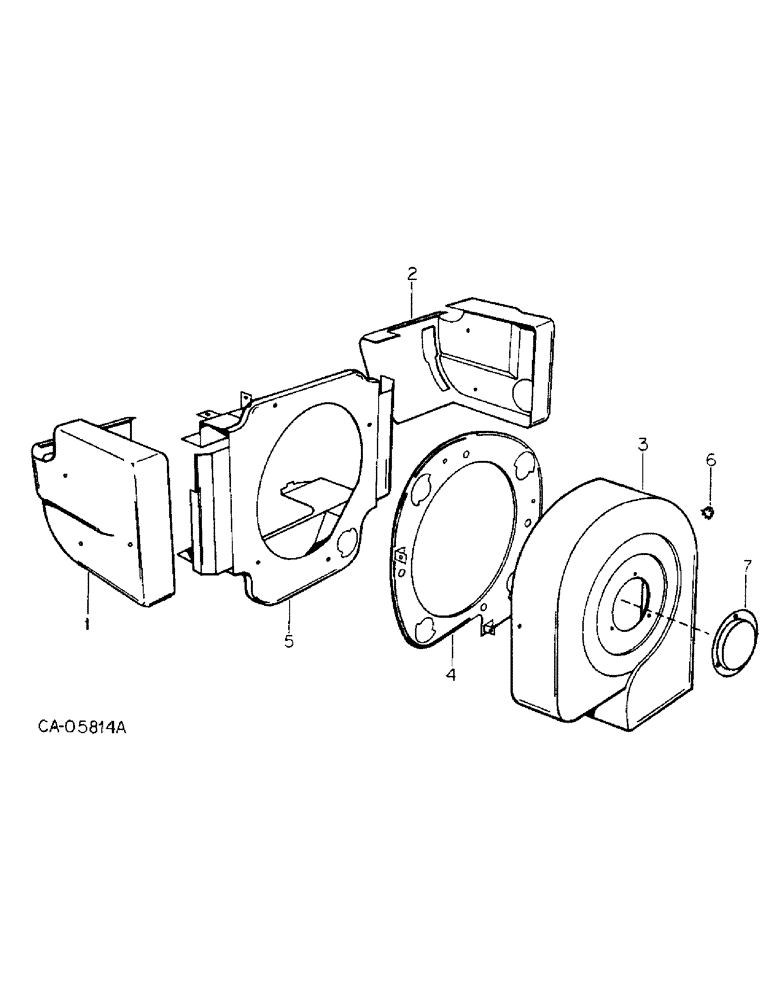

Схема запчастей Case 4130 - (12-15) - POWER, HOUSING - ENGINE (04) - Drive Train
2
3
1
6
5
4
7

Артикул

Название

Примечание

Количество

1

74253C1

HOUSING, LH air

1шт.

For 4130 loaders with serial numbers 170 & below.

1шт.

74088C1

SCREW

self locking

1шт.

1

75364C1

HOUSING, LH air

1шт.

For 4130 loaders with serial numbers 171 & above.

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

3шт.

2

74254C1

HOUSING, RH air

1шт.

For 4130 loaders with serial numbers 170 & below.

1шт.

74088C1

SCREW

self locking

1шт.

2

75365C1

HOUSING, RH air

1шт.

For 4130 loaders with serial numbers 171 & above.

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

3шт.

3

74255C91

HOUSING ASSY, air scroll

1шт.

74088C1

SCREW

self locking

5шт.

For 4130 loaders with serial numbers 170 & below.

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

5шт.

For 4130 loaders with serial numbers 171 & above.

1шт.

4

74257C1

PLATE, scroll back

1шт.

74088C1

SCREW

self locking

4шт.

For 4130 loaders with serial numbers 170 & below.

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

4шт.

For 4130 loaders with serial numbers 171 & above.

1шт.

5

74258C1

HOUSING, blower

1шт.

For 4130 loaders with serial numbers 170 & below.

1шт.

74261C1

SCREW,Hex, 1/4" - 20 x 0.50"

tapping

4шт.

5

75366C1

HOUSING, blower

1шт.

For 4130 loaders with serial numbers 171 & above.

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

4шт.

6

74259C1

PLUG, button

1шт.

7

74262C1

COVER, air scroll hsg

1шт.

74263C1

BOLT,Hex Locking Washer Hd 1/4" - 20 x 3/8"

SCREW, self locking

3шт.

For 4130 loaders with serial numbers 170 & below.

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

3шт.

For 4130 loaders with serial numbers 171 & above.

1шт.

Выбрано товаров: 34
