Запчасти Case 4130 (12-14) - POWER, GOVERNOR (04) - Drive Train

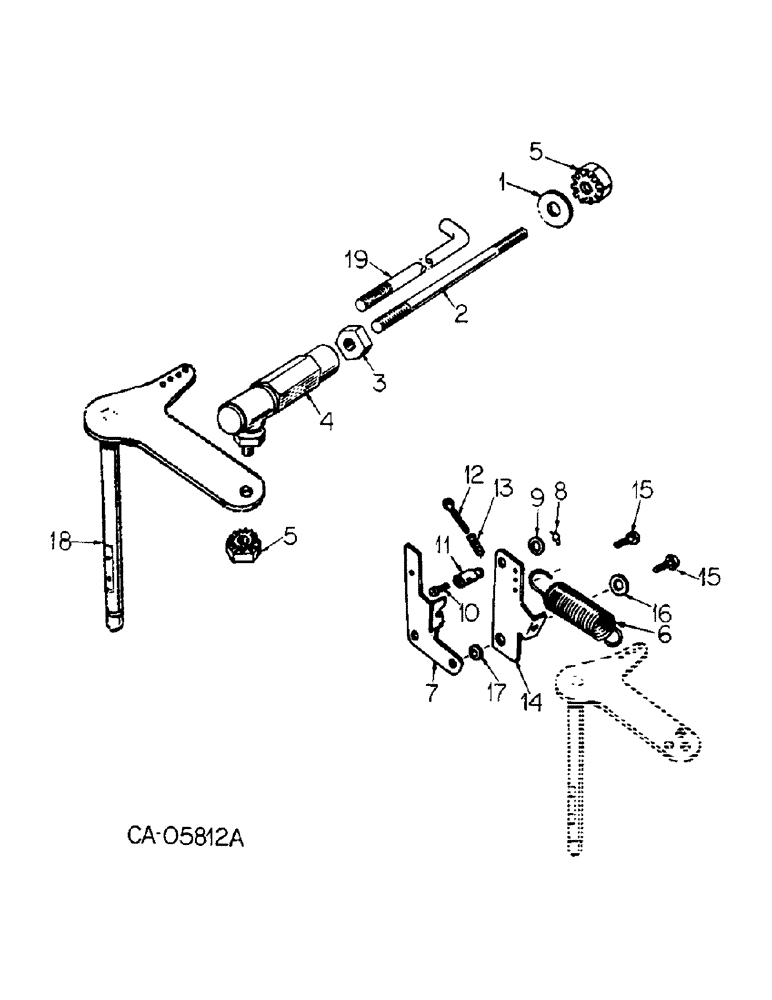

Схема запчастей Case 4130 - (12-14) - POWER, GOVERNOR (04) - Drive Train
17
15
18
10
12
15
3
8
4
5
19
2
16
11
9
1
5
14
13
6
7

Артикул

Название

Примечание

Количество

1

120391

WASHER,#10

.219 x .500 x .036

1шт.

For 4130 loaders with serial numbers 170 & below.

1шт.

2

74242C1

STUD, link

1шт.

For 4130 loaders with serial numbers 170 & below.

1шт.

3

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

4

74243C1

JOINT, ball

2шт.

For 4130 loaders with serial numbers 170 & below.

1шт.

4

74243C1

JOINT, ball

1шт.

For 4130 loaders with serial numbers 171 & above.

1шт.

5

66299C1

NUT

10-32 w/ext washer hex

2шт.

For 4130 loaders with serial numbers 170 & below.

1шт.

5

66299C1

NUT

10-32 w/ext washer hex

1шт.

For 4130 loaders with serial numbers 171 & above.

1шт.

6

74244C1

SPRING

gov

1шт.

7

74245C1

BRACKET, cable

1шт.

For 4130 loaders with serial numbers 170 & below.

1шт.

8

74246C1

LINCH PIN

PIN, cotter

1шт.

For 4130 loaders with serial numbers 170 & below.

1шт.

9

74247C1

WASHER

WASHER, cable holding swivel

1шт.

For 4130 loaders with serial numbers 170 & below.

1шт.

10

113625

SCREW, no. 8 x 5/16 pln fil/hds mach Slotted Fil Hd, #8-32 x 5/16"

1шт.

For 4130 loaders with serial numbers 170 & below.

1шт.

11

74248C1

BUSHING

SWIVEL, cable holding

1шт.

For 4130 loaders with serial numbers 170 & below.

1шт.

12

100740

SCREW, no. 6 x 3/4 pln r/hds mach Slotted Rd Hd, #6-32 x 3/4"

1шт.

13

74249C1

COMPRESSION SPRING

SPRING, idle setting

1шт.

14

74250C1

ARM

gov control

1шт.

15

74088C1

SCREW

self locking

2шт.

For 4130 loaders with serial numbers 170 & below.

1шт.

15

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

For 4130 loaders with serial numbers 171 & above.

1шт.

16

74251C1

WASHER, LOCK

WASHER, flat

1шт.

17

74252C1

BUSHING

control arm

1шт.

18

NSS

NOT SOLD SEPARAT

REFER TO GEARCASE REF. NO. 3

1шт.

19

75362C1

STUD, governor

1шт.

For 4130 loaders with serial numbers 171 & above.

1шт.

Выбрано товаров: 36
