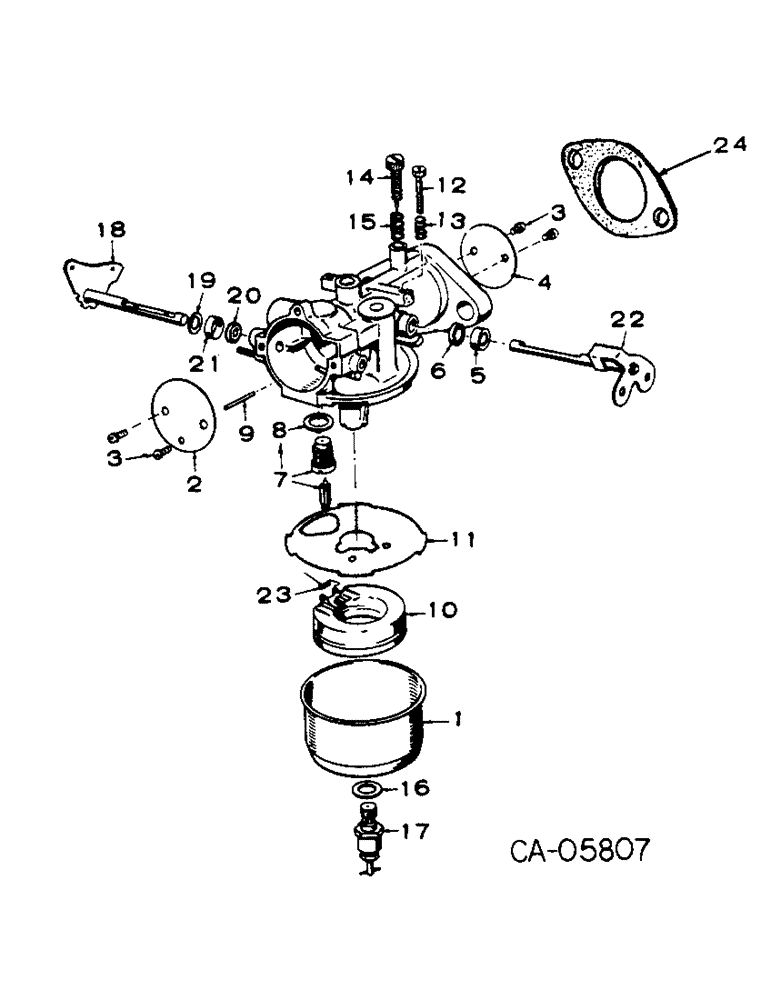

Запчасти Case 4130 (12-11) - 74168C91 - POWER, CARBURETOR, FOR 4130 LOADERS WITH (04) - Drive Train

74168C91

CARBURETOR ASSY

1шт.

1

74179C1

BOWL, fuel

1шт.

2

74180C1

PLATE, choke

1шт.

3

74181C1

SCREW, choke & throttle plate mtg

4шт.

4

74182C1

PLATE, manifold

1шт.

5

74183C1

RETAINER, seal

1шт.

6

74184C1

SEAL, rubber

1шт.

7

74185C1

SEAT, valve

1шт.

8

74186C1

WASHER, valve seat

1шт.

9

74187C1

SHAFT

float pivot

1шт.

10

74188C1

FLOAT, carb

1шт.

11

74189C1

GASKET, bowl

1шт.

12

74190C1

SCREW, throttle stop

1шт.

13

74191C1

SPRING, throttle stop

1шт.

14

74192C1

NEEDLE, idle adjusting

1шт.

15

74193C1

SPRING, idle adjusting needle

1шт.

16

74194C1

WASHER, main jet

1шт.

17

74195C1

JET, adjustable main

1шт.

18

74196C1

SHAFT, choke

1шт.

19

74197C1

WASHER

choke shaft

1шт.

20

74198C1

SEAL

choke shaft felt

1шт.

21

74199C1

RETAINER, seal

1шт.

22

74200C1

SHAFT, throttle

1шт.

23

74201C1

SPRING, fuel float

1шт.

24

74169C1

GASKET

carb flange

1шт.

74203C91

KIT, carb repair, Includes ref. nos. 5, 6, 7, 9, 11, 14, 16, 19, 20, 21, 23 & 24

1шт.

74204C91

KIT, carb gasket, Includes ref. nos. 6, 8, 11, 16, 20 & 24

1шт.
