Запчасти Case 4130 (12-06) - POWER, PISTON & ROD, GEARCASE (04) - Drive Train

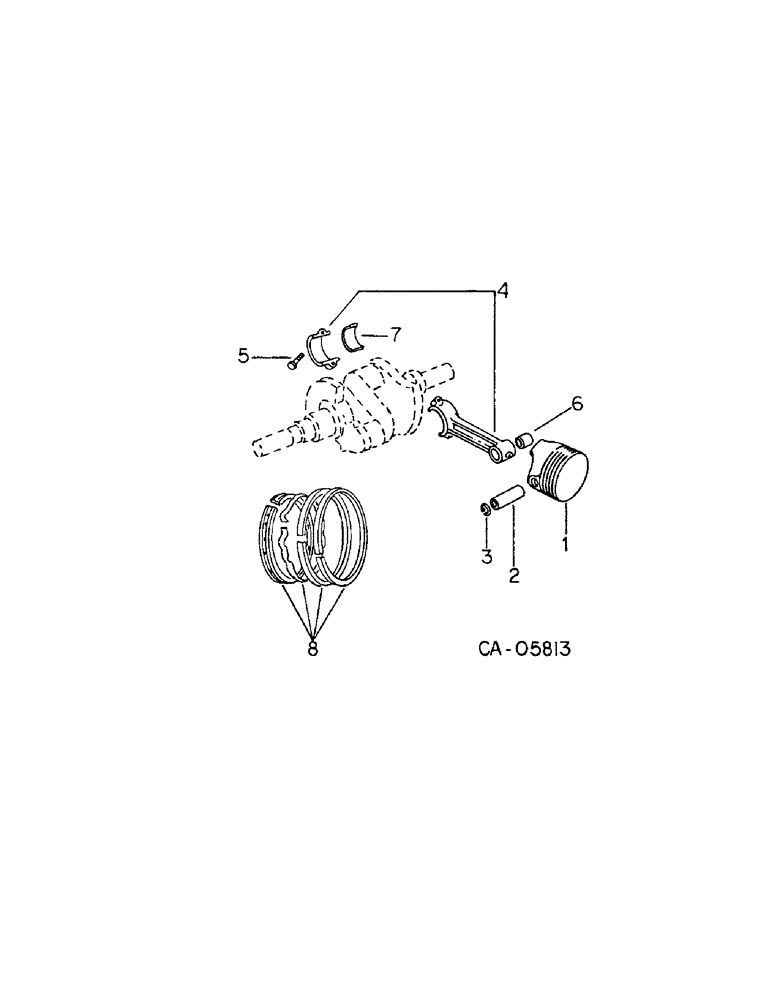

Схема запчастей Case 4130 - (12-06) - POWER, PISTON & ROD, GEARCASE (04) - Drive Train
3
6
8
2
5
7
1
4

Артикул

Название

Примечание

Количество

1

74119C91

SET

piston & pin - std

2шт.

1

74120C91

SET, piston & pin - .005 O/S

2шт.

1

74121C91

SET, piston & pin - .010 O/S

2шт.

1

74122C91

SET

piston & pin - .020 O/S

2шт.

1

74123C91

SET, piston & pin - .030 O/S

2шт.

1

74124C91

SET, piston & pin - .040 O/S

2шт.

2

74125C1

PIN, piston - std, Included in piston & pin sets

2шт.

2

74126C1

PIN, piston - .002 O/S, For 4130 loaders, Serial Range: -170

2шт.

3

74127C1

RING, piston pin retaining, Included in piston & pin sets

4шт.

4

74128C91

ROD

ASSY, connecting, Includes ref. nos. 5 & 6

2шт.

5

74129C1

BOLT, rod cap

4шт.

6

74130C1

BUSHING, piston pin

2шт.

7

74131C1

CRANKSHAFT BEARING

connecting rod half - std

4шт.

7

74132C1

BEARING, connecting rod half - .002 U/S

4шт.

7

74133C1

BEARING, connecting rod half - .010 U/S

4шт.

7

74134C1

CRANKSHAFT BEARING

connecting rod half - .020 U/S

4шт.

7

74135C1

BEARING, connecting rod half - .030 U/S

4шт.

8

74136C1

RING

SET, piston - std

2шт.

8

74137C1

RING SET, piston - .005 O/S

2шт.

8

74138C1

RING

SET, piston - .010 O/S

2шт.

8

74139C1

RING

SET, piston - .020 O/S

2шт.

8

74140C1

RING SET, piston - .030 O/S

2шт.

8

74141C1

RING SET, piston - .040 O/S

2шт.

Выбрано товаров: 23
