Запчасти Case 4130 (12-06[1]) - GEARCASE (04) - Drive Train

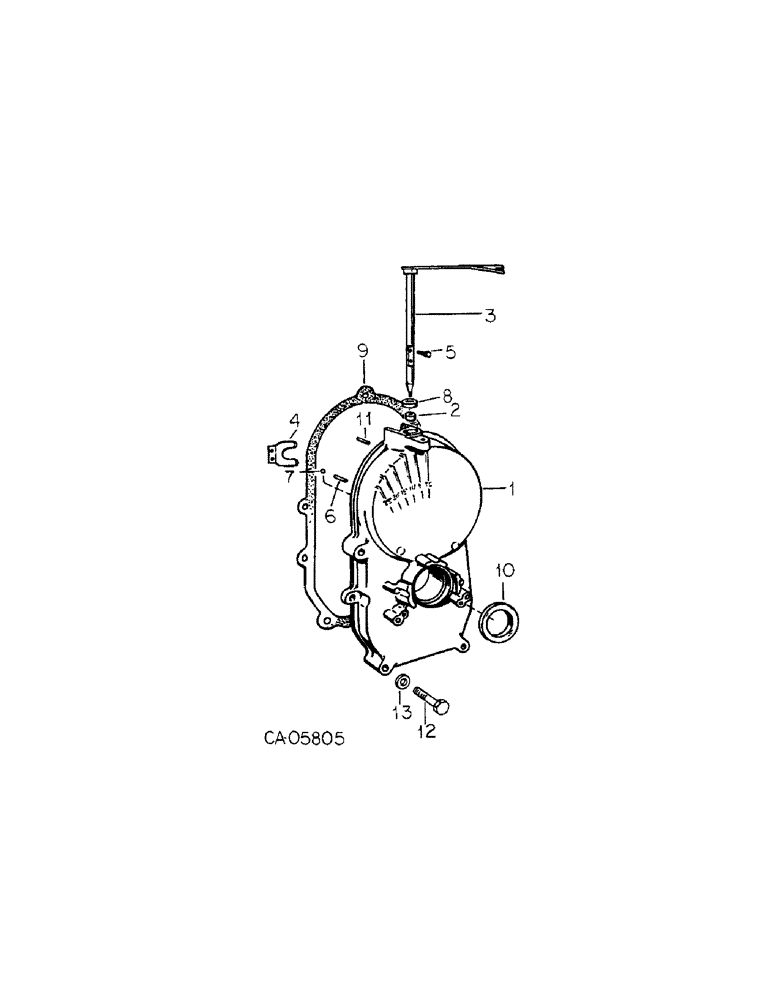

Схема запчастей Case 4130 - (12-06[1]) - GEARCASE (04) - Drive Train
5
10
6
2
1
11
3
4
7
13
9
12
8

Артикул

Название

Примечание

Количество

1

74142C91

CASE ASSY, gear, Includes ref. nos. 2, 3, 4, 5, 6, 7, 8, & 10, For 4130 loaders, Serial Range: -170

1шт.

1

75316C91

CASE ASSY, gear, Includes ref. nos. 2, 3, 4, 5, 6, 7, 8, & 10, For 4130 loaders, Start Serial: 171

1шт.

2

74143C1

BALL BEARING

upper gov shaft sleeve

1шт.

3

74144C1

SHAFT ASSY, gov arm

1шт.

4

74145C1

FORK

YOKE, gov shaft

1шт.

5

159582

SCREW,Cross Pan Hd, #8 x 3/8"

no. 8 x 3/8 znp p/hdcr mach

2шт.

6

74146C1

PIN

roll

1шт.

7

74147C1

BALL

BEARING, ball

1шт.

8

74148C1

SEAL

SEAL, gov shaft oil

1шт.

9

74149C1

GASKET

gear case

1шт.

10

74150C1

SEAL

SEAL, crankshaft oil

1шт.

11

74151C1

PIN

roll, For 4130 loaders, Serial Range: -170

1шт.

11

75317C1

PIN, roll, For 4130 loaders, Start Serial: 171

1шт.

12

25750R1

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8

5/16 x 1-3/4 phc type 8

4шт.

12

25234R1

BOLT,Hex, 5/16" - 18 x 2 1/4", Gr 8

5/16 x 2-1/4 phc type 8

1шт.

13

74152C1

WASHER

gear case mtg

5шт.

Выбрано товаров: 16
