Запчасти Case 4130 (12-04) - POWER, CRANKSHAFT & FLYWHEEL (04) - Drive Train

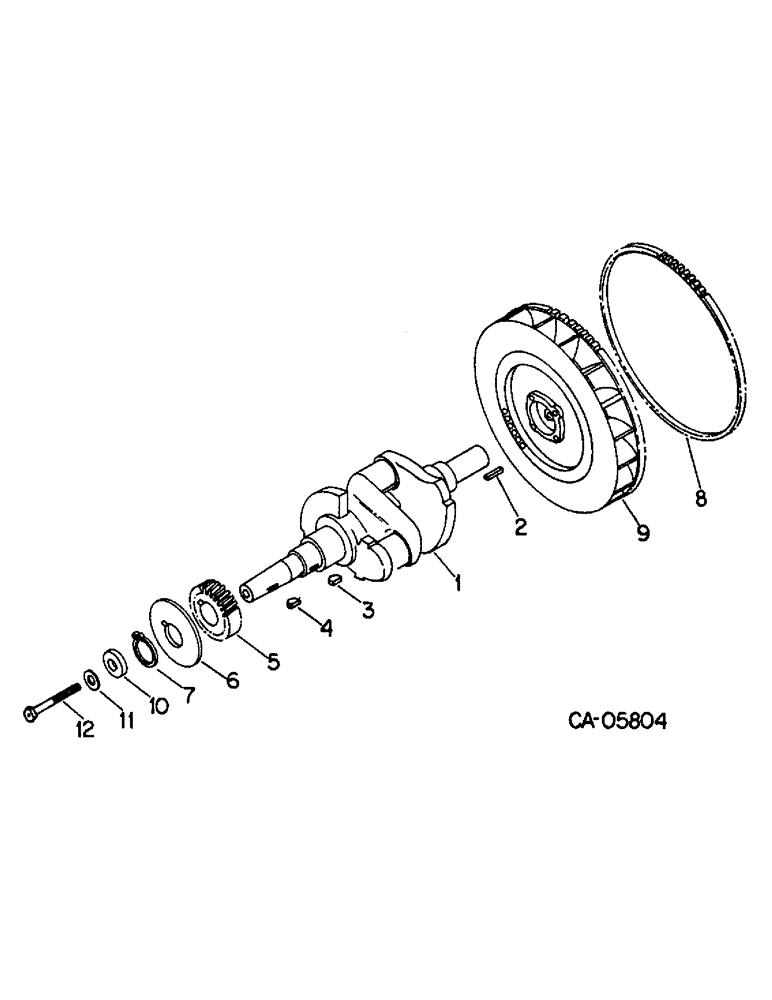

Схема запчастей Case 4130 - (12-04) - POWER, CRANKSHAFT & FLYWHEEL (04) - Drive Train
1
4
8
9
7
12
3
11
5
10
6
2

Артикул

Название

Примечание

Количество

1

74098C1

CRANKSHAFT

1шт.

2

74099C1

KEY, crankshaft stub

1шт.

3

74100C1

KEY

crankshaft gear

1шт.

4

74101C1

KEY

flywheel

1шт.

5

74102C1

GEAR

crankshaft

1шт.

6

74103C1

WASHER

gear retaining

1шт.

7

74104C1

RING, SNAP

RING, gear retaining

1шт.

8

74105C1

GEAR, ring

1шт.

9

74106C91

FLYWHEEL ASSY, Includes ref. no 8 and charging alternator rotor

1шт.

10

74107C1

WASHER, flywheel mtg bolt

1шт.

11

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

12

74108C1

SCREW,Hex

BOLT, flywhell mtg

1шт.

Выбрано товаров: 12
