Запчасти Case 4130 (12-03) - POWER, OIL BASE (04) - Drive Train

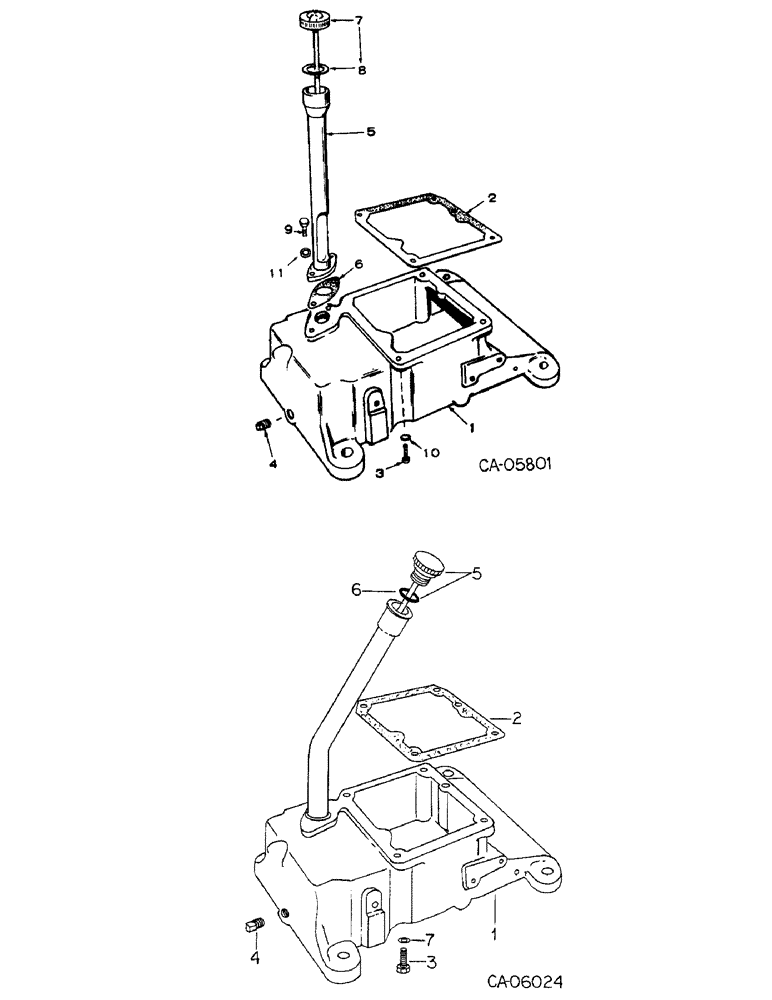

Схема запчастей Case 4130 - (12-03) - POWER, OIL BASE (04) - Drive Train
8
2
11
6
1
6
7
10
3
2
3
5
9
7
1
5
4
4

Артикул

Название

Примечание

Количество

1

74090C1

BASE, oil

1шт.

2

74091C1

GASKET

1шт.

3

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

4шт.

4

444631

PLUG

1/2-14 autom hex-hd pipe

1шт.

5

74093C1

TUBE, oil fill

1шт.

6

74094C1

GASKET, fill tube

1шт.

7

74095C91

CAP ASSY, oil fill indicator

1шт.

8

74096C1

GASKET, oil fill cap

1шт.

9

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4 x 5/8 type 5

2шт.

10

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

11

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

1

75312C1

BASE, oil, 4130 loaders, Start Serial: 171

1шт.

2

74091C1

GASKET

4130 loaders, Start Serial: 171

1шт.

3

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

4130 loaders Hex, 3/8"-16 x 1 1/4", G8, Full Thd, Start Serial: 171

4шт.

4

444631

PLUG

1/2-14 zn autom hex-hd pipe, 4130 loaders, Start Serial: 171

1шт.

5

75313C91

CAP ASSY, oil fill indicator, 4130 loaders, Start Serial: 171

1шт.

6

75314C1

GASKET

4130 loaders, Start Serial: 171

1шт.

7

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 4130 loaders 3/8", Start Serial: 171

4шт.
