Запчасти Case 4125 (07-3) - DRIVE TRAIN, DRIVE AXLE - FRT & REAR (04) - Drive Train

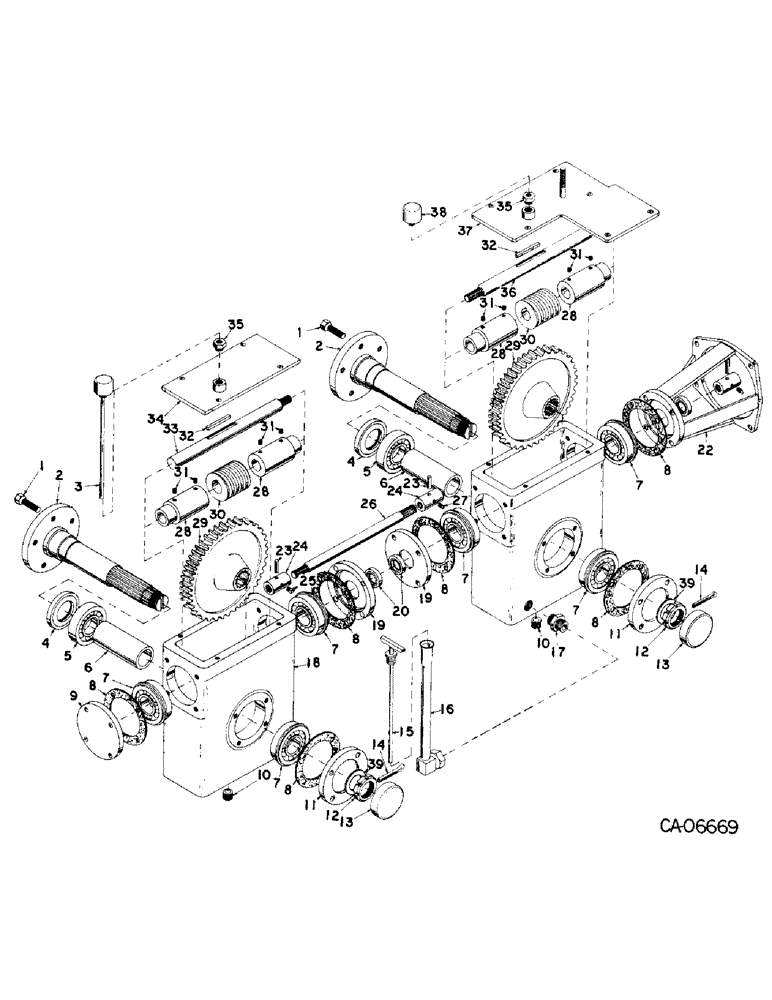

Схема запчастей Case 4125 - (07-3) - DRIVE TRAIN, DRIVE AXLE - FRT & REAR (04) - Drive Train

Артикул

Название

Примечание

Количество

1

364451R1

BOLT,9/16" - 18 x 1 7/32"

20шт.

2

77392C1

AXLE

4шт.

3

74764C1

GAUGE, dipstick

2шт.

4

77537C1

SEAL

axle

4шт.

5

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING, axle

4шт.

6

77393C1

SPACER, axle

4шт.

7

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

BEARING

12шт.

8

77394C1

GASKET

12шт.

9

77395C1

COVER, front

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

8шт.

10

444705

PLUG,Hex Soc, 1/2"-14, Brass

1/4-14 socket hd auto pipe

4шт.

11

77396C1

RETAINER, bearing

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

12шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

4шт.

12

73314C1

NUT

axle

4шт.

13

560950R1

HUB CAP

CAP, axle

4шт.

14

103391

COTTER PIN,1/8" x 2 1/2"

Pin, Split (Cotter), 1/8" x 2 1/2"

4шт.

15

75124C1

GAUGE

dipstick

2шт.

16

76082C1

PIPE, dipstick 0.75" OD, 12" Length

2шт.

17

75116C1

NIPPLE

2шт.

18

77397C1

HOUSING, gear

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

12шт.

19

77398C1

RETAINER, bearing

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

16шт.

20

382229R91

OIL SEAL

SEAL, shaft

6шт.

22

77399C1

ADAPTER, hydrostatic

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

8шт.

23

617057R1

PIN,1/4" x 1", Coiled

6шт.

24

77400C1

COUPLING

COUPLER, refer to park brake for brake discs

4шт.

25

20969R1

PLUG

3/4 sq. hd male pipe

6шт.

26

77401C1

SHAFT, interconnect

2шт.

27

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight 1/4"-28 NPT x .54" lg

6шт.

28

77402C1

SPACER, worm shaft

8шт.

29

77403C1

GEAR, worm

4шт.

30

77404C1

GEAR, pinion

4шт.

31

77539C1

SCREW, set

16шт.

32

126

KEY,1/4" Sq x 2 1/2", Par

1/4 x 2-1/2 sq parallel

4шт.

33

77405C1

SHAFT, worm, front

2шт.

34

77406C1

COVER, RH front

1шт.

34

77407C1

COVER, LH front

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

8шт.

35

175778H1

ADAPTER

1/2-3/8 reducing pipe

4шт.

36

77408C1

SHAFT, worm, rear

2шт.

37

77409C1

COVER, RH rear

1шт.

37

77410C1

COVER, LH rear

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

4шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

4шт.

38

72217C1

BREATHER

2шт.

39

73308C1

THRUST WASHER

4шт.

77741C1

FLUID, 2 gal. container of gear case oil

1шт.

Выбрано товаров: 57
