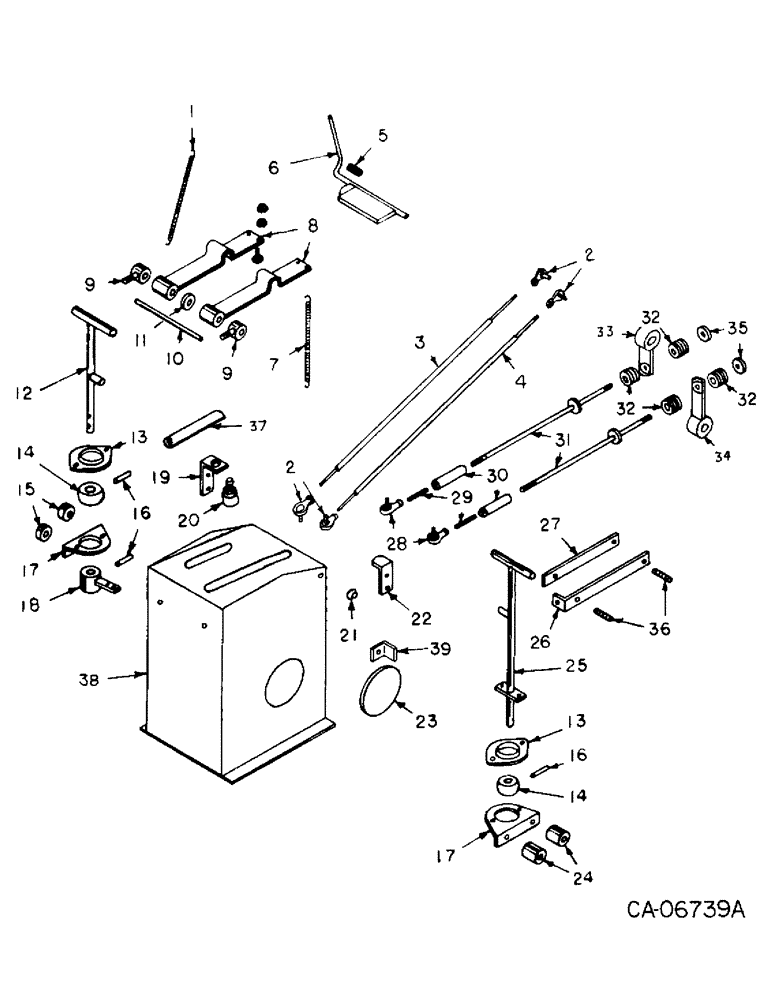

Запчасти Case 4125 (07-1) - DRIVE TRAIN, HYD & HYDROSTATIC CONTROLS (04) - Drive Train

1

72211C1

SPRING

tension - RH

1шт.

2

72212C1

END ASSY.

END, 5/16 rod

4шт.

232-4615

LOCK NUT,5/16"-24, GC

5/16-NF phc p/t lock type 5

4шт.

3

77360C1

ROD, tilt

1шт.

120368

NUT,5/16"-24, G5

2шт.

4

77359C1

ROD, lift

1шт.

120368

NUT,5/16"-24, G5

2шт.

5

76472C1

SPRING

compression

1шт.

6

76468C1

LEVER, control lock

1шт.

7

77804C1

SPRING, tension - LH

1шт.

8

76471C1

ARM, control lock

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

9

76466C1

PIVOT, lock arm

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

10

76467C1

ROD, pivot

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

11

127530H1

SPACER

lock arm

1шт.

12

77805C1

LEVER, hyd control

1шт.

72210C1

GRIP

handle

2шт.

13

77806C1

RETAINER

ball

2шт.

14

77807C1

BUSHING

BALL, pivot

2шт.

15

73907C1

BUSHING

SPACER

2шт.

16

617057R1

PIN,1/4" x 1", Coiled

3шт.

17

77808C1

SUPPORT

ball

2шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1 crg type 5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

18

77809C1

ARM, pivot

1шт.

19

72672C1

SUPPORT, neutral start switch

1шт.

598796R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

BOLT, 1/4 x 1 crg type 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

20

121629C1

IGNITION SWITCH

SWITCH, neutral start, Serial Range: refer-electrical

1шт.

21

77536C1

NUT, cap

1шт.

22

78113C1

LEVER, choke, replaces 72931C1

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

3шт.

9413950

LOCK NUT,1/4"-20, GB

NUT, 1/4 phc p/t lock type 5

1шт.

23

77810C1

COVER

2шт.

24

154397C1

SPACER,5/8" Tube x 1 1/4"

3/8 x 1.250

2шт.

25

77811C1

LEVER, drive control

1шт.

72210C1

GRIP

handle

2шт.

26

72024C1

BAR, friction - mounted

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

27

72023C1

BAR, friction, loose

1шт.

413-432

1/4 x 2 type 5

2шт.

120392

WASHER,1/4", SAE

3/8 lock

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

28

72213C1

END

3/8 rod

2шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

2шт.

29

77812C1

STUD

2шт.

30

77813C1

UNION

adjusting

2шт.

31

77737C1

ROD, drive

2шт.

120369

NUT,3/8"-24, G5

2шт.

32

138540C1

SPRING

compression

4шт.

33

77989C1

LEVER

drive, RH, replaces 77362C1 by also ordering 77990C1

1шт.

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

9413956

LOCK NUT,1/2"-13, GB

NUT, 1/2 phc p/t lock type 5

1шт.

34

77990C1

LEVER

drive, LH, replaces 77361C1 by also ordering 77889C1

1шт.

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

9413956

LOCK NUT,1/2"-13, GB

NUT, 1/2 phc p/t lock type 5

1шт.

35

72166C1

THRUST WASHER

thrust

2шт.

36

77817C1

SPRING, compression

2шт.

37

77738C1

BAR, neutral switch activator

1шт.

38

77739C1

HOUSING, control, console

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

120832

WASHER, 3/8 lock

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

72032C1

CLAMP, choke cable retainer

1шт.

39

78694C1

ANGLE, brake handle, stop

1шт.
