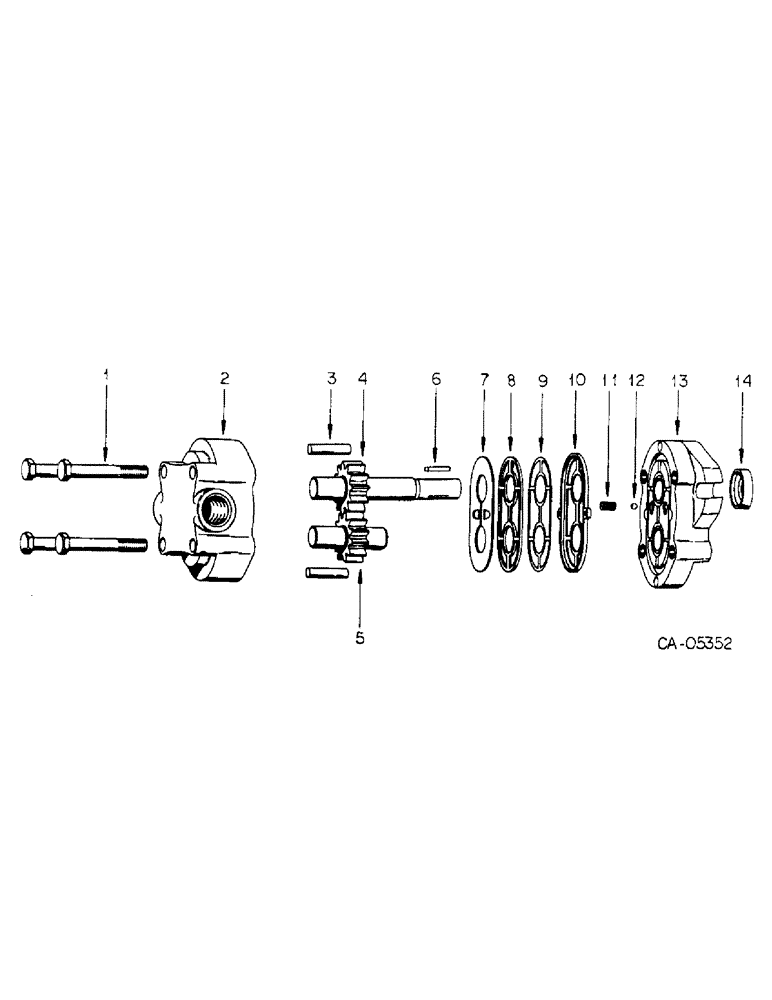

Запчасти Case 4125 (10-6) - HYDRAULICS, HYDRAULIC PUMP (07) - HYDRAULICS

72383C91

PUMP ASSY, hydraulic

1шт.

1

NSS

NOT SOLD SEPARAT

SCREW, order pump assembly

4шт.

2

NSS

NOT SOLD SEPARAT

HOUSING ASSY, order pump assy

1шт.

3

NSS

NOT SOLD SEPARAT

PIN, dowel, order pump assy

2шт.

4

NSS

NOT SOLD SEPARAT

GEAR ASSY, drive, order pump assy

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR ASSY, idler, order pump assy

1шт.

6

72632C1

KEY

1шт.

7

NSS

NOT SOLD SEPARAT

DIAPHRAGM, order seal kit

1шт.

Part of Gasket & Seal Service kit, P/N 827392C1

1шт.

8

NSS

NOT SOLD SEPARAT

GASKET, back-up, order seal kit

1шт.

Part of Gasket & Seal Service kit, P/N 827392C1

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET, protector, order seal kit

1шт.

Part of Gasket & Seal Service kit, P/N 827392C1

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL, diaphragm, order seal kit

1шт.

Part of Gasket & Seal Service kit, P/N 827392C1

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING, order seal kit

1шт.

Part of Gasket & Seal Service kit, P/N 827392C1

1шт.

12

17007R1

BALL

steel

1шт.

Part of Gasket & Seal Service kit, P/N 827392C1

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE ASSY, front, order pump assy

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL, shaft, order seal kit

1шт.

Part of Gasket & Seal Service kit, P/N 827392C1

1шт.

827392C1

SEAL KIT

KIT, gasket & seal service, includes ref. nos. 7 thru 12 & 14

1шт.
