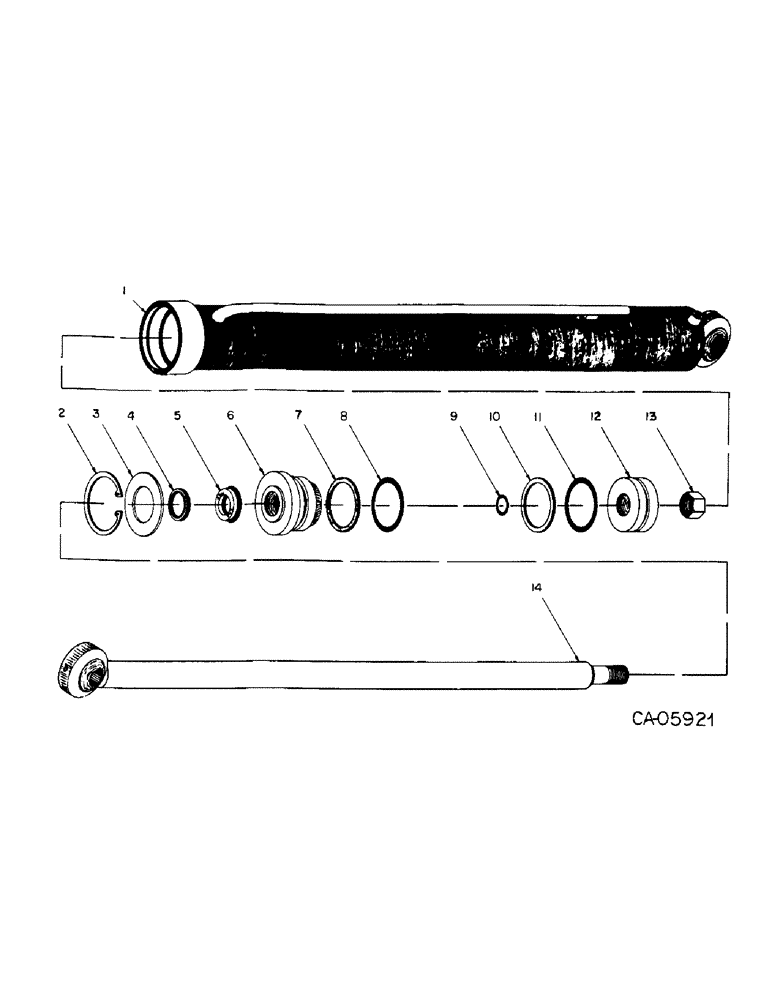

Запчасти Case 4125 (10-4) - 73333C91 - HYDRAULICS, LIFT CYLINDER (07) - HYDRAULICS

73333C91

CYLINDER ASSY, lift

1шт.

1

73402C1

CYLINDER

BODY, cylinder

1шт.

2

562025R1

CIRCLIP

RING, retaining

1шт.

3

72929C1

THRUST WASHER

thrust

1шт.

4

NSS

NOT SOLD SEPARAT

order package 75137C91

1шт.

5

NSS

NOT SOLD SEPARAT

order package 75137C91

1шт.

6

72928C1

END

packing, head

1шт.

7

NSS

NOT SOLD SEPARAT

order package 75137C91

1шт.

9

NSS

NOT SOLD SEPARAT

order package 75137C91

1шт.

9

NSS

NOT SOLD SEPARAT

order package 75137C91

1шт.

10

NSS

NOT SOLD SEPARAT

order package 75137C91

1шт.

11

NSS

NOT SOLD SEPARAT

order package 75137C91

1шт.

12

72191C1

PISTON

1шт.

13

19638R1

LOCK NUT,3/4"-16, GB

NUT, 3/4-NF p/t lock type

5шт.

14

73410C1

ROD

cylinder

1шт.

75137C91

SEAL KIT

PACKAGE, o-ring and seal service

1шт.
