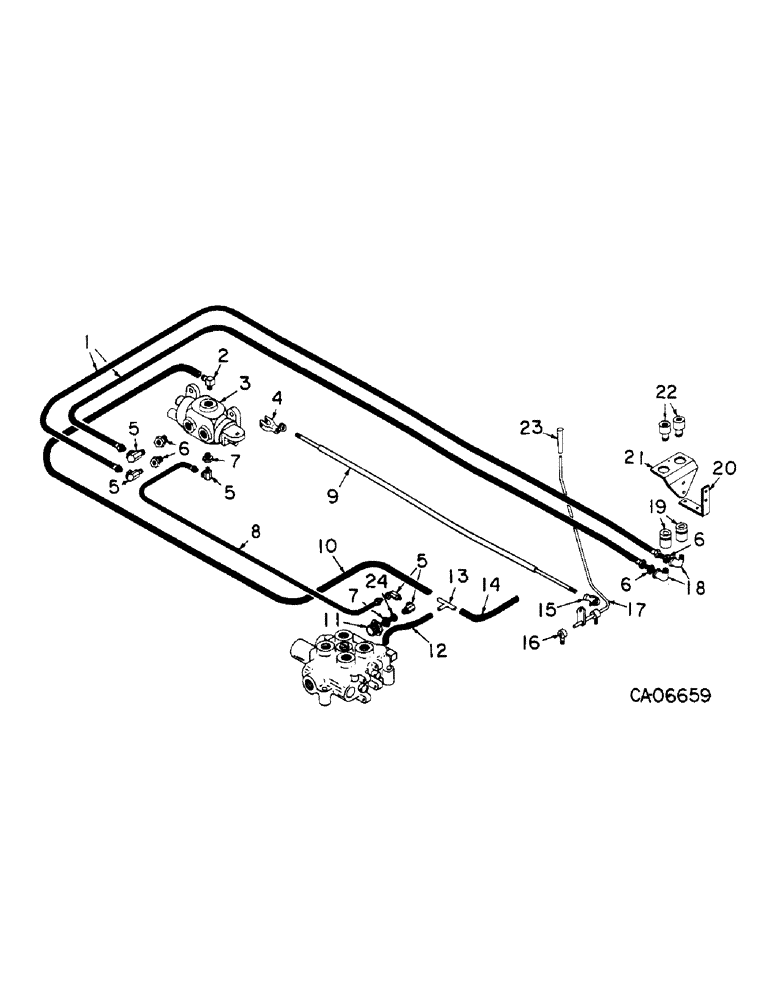

Запчасти Case 4125 (10-3) - HYDRAULICS, AUX CONTROL VALVE & FRT MOUNT ATT (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
72088C1
HOSE ASSY, Serial Range: valve-coupler
2шт.
120875
CLAMP, conduit hose
4шт.
86505867
BOLT,Hex, 1/4" - 20 x 1", Gr 5
2шт.
2
73496C1
ELBOW, beaded
1шт.
3
72180C91
VALVE ASSY, auxiliary control, refer to aux valve for service parts
1шт.
113-257
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
3/8 x 2-1/2 type 5
2шт.
9413953
LOCK NUT,3/8"-16, GB
NUT, 3/8 phc p/t lock type 5
2шт.
4
77453C1
YOKE, linkage
1шт.
180046
SPRING
1/4 x 2-1/4 type 5
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
5
77426C1
ELBOW
5шт.
6
175778H1
ADAPTER
1/2-3/8 reducing pipe
4шт.
7
217-45
REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF
adapter, pipe 3/4"-14 NPTF x 1/2"-18 Fem NPTF
2шт.
8
77428C1
HOSE
ASSY, MCV to aux valve
1шт.
9
77456C1
ROD, control
1шт.
120368
NUT,5/16"-24, G5
2шт.
10
NSS
NOT SOLD SEPARAT
HOSE, aux valve to tee, use 38 inches from bulk roll marked 526602R1
1шт.
28085R1
HOSE CLAMP,#08, 0.50/0.91 Type F Worm
CLAMP, #8 hose
2шт.
11
73343C91
KIT, power beyond conversion sleeve
1шт.
12
NSS
NOT SOLD SEPARAT
HOSE, tee to MCV, use 38 inches from bulk roll marked 526602R1
1шт.
28085R1
HOSE CLAMP,#08, 0.50/0.91 Type F Worm
CLAMP, #8 hose
2шт.
120875
CLAMP, conduit hose
1шт.
77457C1
PAD, foam
1шт.
13
73499C1
TEE, beaded
1шт.
14
NSS
NOT SOLD SEPARAT
HOSE, tee to reservoir, use 6 inches from bulk roll marked 526602R1
1шт.
28085R1
HOSE CLAMP,#08, 0.50/0.91 Type F Worm
CLAMP, #8 hose
2шт.
15
72212C1
END ASSY.
END, rod
1шт.
120368
NUT,5/16"-24, G5
1шт.
16
76466C1
PIVOT
1шт.
9413953
LOCK NUT,3/8"-16, GB
NUT, 3/8 phc p/t lock type 5
1шт.
17
77458C1
HANDLE
1шт.
9413953
LOCK NUT,3/8"-16, GB
NUT, 3/8 phc p/t lock type 5
1шт.
18
108686
ELBOW,90 Degree, 1/2" NPT Street
1/2-90 deg street
2шт.
19
72299C1
COUPLING, female
2шт.
75155C1
SET, plug
1шт.
20
77459C1
BRACKET, mount
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1 type 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
21
77460C1
BRACKET, coupler
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1 type 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
22
72305C1
COUPLING, male
2шт.
75154C1
CAP, dust
2шт.
23
77461C1
GRIP, handle
1шт.
24
175778H1
ADAPTER
1/2-3/8 reducing pipe
1шт.
Выбрано товаров: 46
