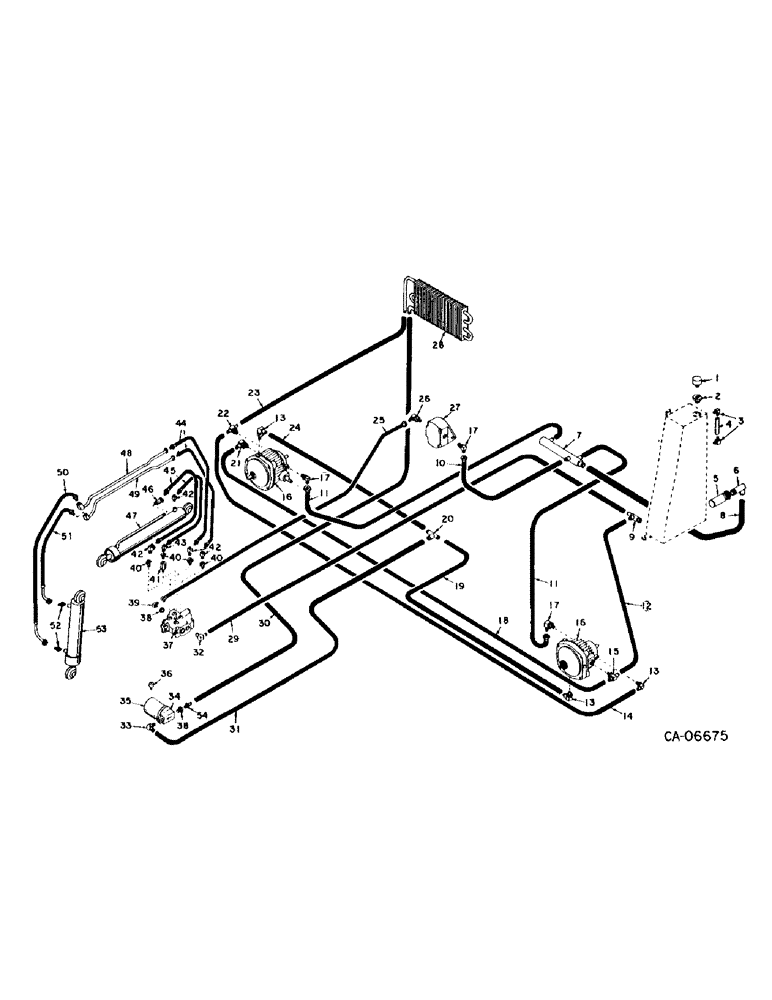

Запчасти Case 4125 (10-1) - HYDRAULICS, HYDRAULIC & HYDROSTATIC SYSTEM (07) - HYDRAULICS

1

72220C1

VALVE

BREATHER

1шт.

2

115224

ADAPTER

3/4 - 3/8 reducing pipe

1шт.

3

72221C1

ELBOW

2шт.

4

72010C1

HOSE, indicator

1шт.

5

77411C1

SCREEN, sump

1шт.

6

77412C1

ELBOW, tank outlet

1шт.

7

77413C1

MANIFOLD

1шт.

8

73493C1

HOSE, Serial Range: tank-manifold

1шт.

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

CLAMP, #16 hose

2шт.

9

77414C1

TEE

1шт.

10

77415C1

HOSE ASSY, manifold to hyd pump

1шт.

27861R1

HOSE CLAMP,#10, .56/1.06 Type F Worm, W/liner

CLAMP, #10 hose

1шт.

11

77416C1

HOSE ASSY, manifold to hydro tans

2шт.

27861R1

HOSE CLAMP,#10, .56/1.06 Type F Worm, W/liner

CLAMP, #10 hose

1шт.

12

NSS

NOT SOLD SEPARAT

HOSE, transmission to tank, Use 18 inches from bulk roll marked as 526602R1

1шт.

27861R1

HOSE CLAMP,#10, .56/1.06 Type F Worm, W/liner

CLAMP, #10 hose

2шт.

13

77417C1

ELBOW, beaded

3шт.

14

NSS

NOT SOLD SEPARAT

HOSE, transmission to transmission, Use 30 inches from bulk roll marked 526602R1

1шт.

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP, #8 hose

2шт.

15

77418C1

TEE

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

.755 x .097

1шт.

16

R77419C91

TRANSMISSION

ASSY, hydrostatic

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

17

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg, hyd flared tube adj 90 deg

3шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

.755 x .097

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE, transmission to transmission, Use 34 inches from bulk roll marked 526602R1

1шт.

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP, #8 hose

2шт.

19

NSS

NOT SOLD SEPARAT

HOSE, case drain, Use 6 inches from bulk roll marked 526602R1

1шт.

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP, #8 hose

2шт.

20

73499C1

TEE

1шт.

21

77420C1

ELBOW

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

.755 ID x .097

1шт.

22

77421C1

TEE

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE, trans to cooler, Use 25 inches from bulk roll marked 526602R1

1шт.

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP, #8 hose

2шт.

24

NSS

NOT SOLD SEPARAT

HOSE, tee to trans, Use 37 inches from bulk roll marked 526602R1

1шт.

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP, #8 hose

2шт.

25

77422C1

HOSE ASSY, hyd, Serial Range: pump-valve

1шт.

26

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg, hyd flared tube adj 90 deg

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .087

1шт.

27

72383C91

PUMP ASSY, hydraulic, Refer to hyd pump for service parts

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

28

73497C1

COOLER

oil

1шт.

29

NSS

NOT SOLD SEPARAT

HOSE, valve to tank, Use 14 inches from bulk roll marked 526602R1

1шт.

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP, #8 hose

2шт.

30

NSS

NOT SOLD SEPARAT

HOSE, filter to cooler, Use 19 inches from bulk roll marked 526602R1

1шт.

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP, #8 hose

2шт.

31

NSS

NOT SOLD SEPARAT

HOSE, filter to tee, Use 30 inches from bulk roll marked 526602R1

1шт.

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP, #8 hose

2шт.

32

73496C1

ELBOW

1шт.

33

77423C1

ELBOW

1шт.

34

76396C1

HEAD, filter

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

35

72563C1

ELEMENT

filter

1шт.

36

77424C1

SWITCH, pressure

1шт.

37

73342C91

VALVE ASSY, control, Refer to control valve for service parts

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

38

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

adapter, pipe 3/4"-14 NPTF x 1/2"-18 Fem NPTF

2шт.

39

556656R1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

1/2-14-3/4-16 reducing 90 deg

1шт.

40

175778H1

ADAPTER

1/2-3/8 reducing pipe

4шт.

41

72569C1

RESTRICTOR

1шт.

42

603880C91

ELBOW

4шт.

43

77426C1

ELBOW

1шт.

44

77427C1

HOSE ASSY, valve to tilt cyl

2шт.

45

77428C1

HOSE

ASSY, valve to lift cyl

2шт.

46

77429C1

ELBOW

1шт.

47

73333C91

CYLINDER ASSY, lift, Refer to lift cylinder for service parts

1шт.

48

77430C1

TUBE ASSY, outside 0.5" OD, 64.25" Length

1шт.

49

77431C1

TUBE ASSY, inside 0.5" OD, 64.25" Length

1шт.

50

77432C1

HOSE

ASSY, tilt cyl

1шт.

51

72382C1

HOSE ASSY, tilt cyl

1шт.

52

610774R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, 9/16-18 37 deg reducer

2шт.

53

77445C91

CYLINDER

ASSY, tilt, Refer to tilt cylinder for service parts

1шт.

54

74761C1

CONNECTOR

1шт.
