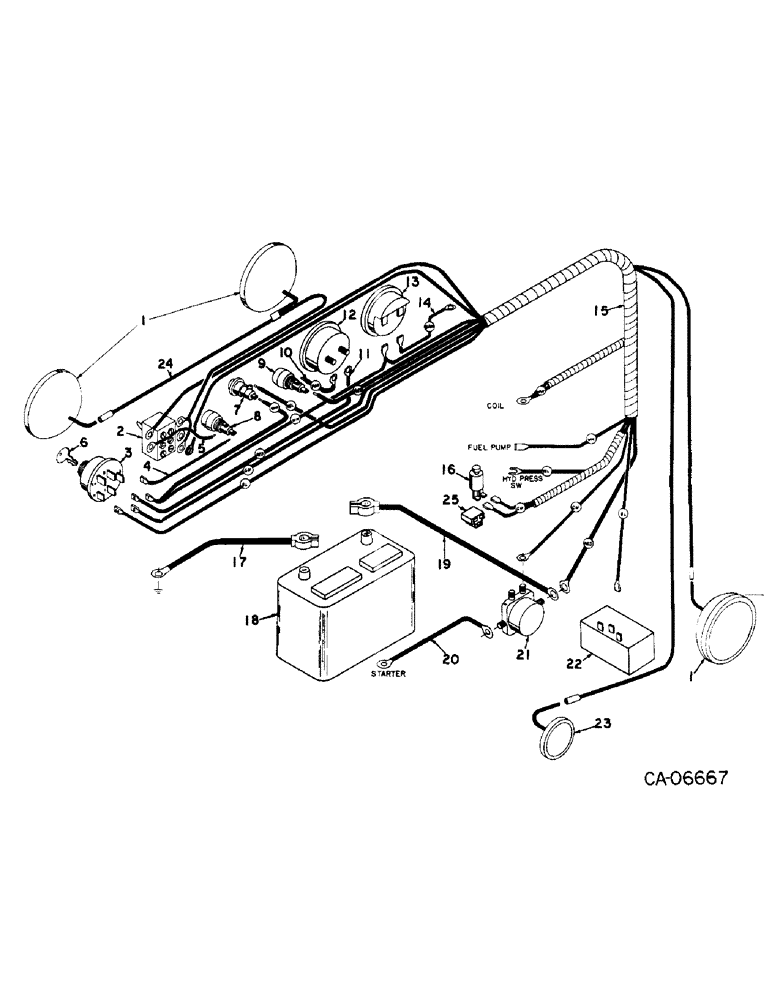

Запчасти Case 4125 (08-1) - ELECTRICAL (06) - ELECTRICAL

1

72275C91

LIGHT ASSY, head

3шт.

373662R91

LAMP

replacement #4411, Optional w/131508C1

3шт.

131508C1

LAMP BASE

LAMPS REPLACEMENT, Optional w/373662R91, Furnish as part of 72275C91

3шт.

2

647646C91

SWITCH, light

1шт.

3

72541C1

SWITCH

ignition

1шт.

4

77439C1

CABLE, fuse, ign switch

1шт.

5

73408C1

CABLE, fuse, light switch

1шт.

6

72243C1

KEY

ignition

1шт.

7

72242C1

LIGHT, indicator

1шт.

200557H1

BULB,C2V, #1815, 14V

replacement, furnished as part of 72242C1

1шт.

8

72277C1

HOLDER, fuse

1шт.

432644

FUSE,20 Amp, Type SFE

20 amp, SFE 20

1шт.

9

72277C1

HOLDER, fuse

1шт.

147686

FUSE,30 Amp, Type SFE

30 amp, SFE 30

1шт.

10

77440C1

CABLE, ammeter, fuse

1шт.

11

72472C1

CABLE, ammeter - ign switch

1шт.

12

77591C1

AMMETER

1шт.

13

72241C1

METER

hour

1шт.

14

77696C1

CABLE, ground

1шт.

15

77441C1

HARNESS, wiring

1шт.

16

121629C1

IGNITION SWITCH

SWITCH, neutral start

1шт.

17

72136C1

CABLE

battery, neg

1шт.

18

538976R1

BATTERY

1шт.

19

77442C1

CABLE, battery, pos

1шт.

20

77443C1

CABLE, solenoid, starter

1шт.

21

72589C1

RELAY

starter

1шт.

22

74239C1

REGULATOR

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

4шт.

130380

SHANK

WASHER, 1/4 lock

2шт.

23

72276C91

LIGHT ASSY, tail

1шт.

20627R1

BULB,C2F, #194, 14V

tail light #194, Furnished as part of 72276C91

1шт.

24

77444C1

CABLE, Serial Range: switch-headlights

1шт.

25

77675C1

CONNECTOR

1шт.

77540C91

LIGHTING ATTACHMENT, Consists of ref. 1, 2, 4, 5, 8, 23 & 24

1шт.
