Запчасти Case 4125 (17-08) - MOUNTED EQUIPMENT, PTO GEAR CASE (05) - SUPERSTRUCTURE

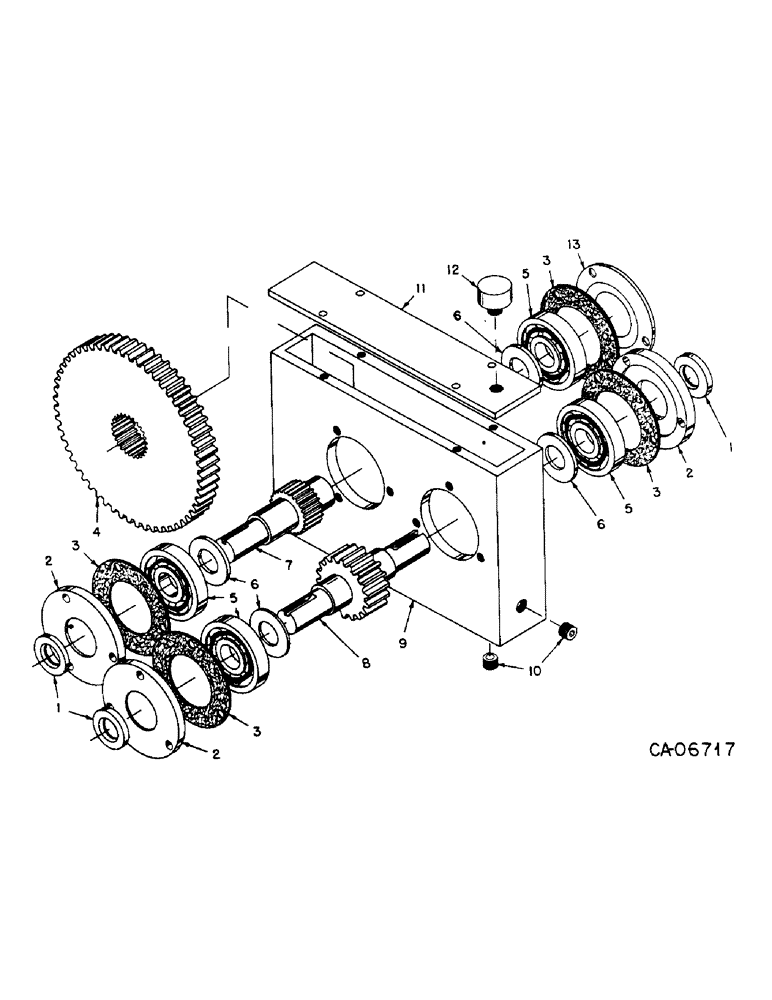

Схема запчастей Case 4125 - (17-08) - MOUNTED EQUIPMENT, PTO GEAR CASE (05) - SUPERSTRUCTURE

Артикул

Название

Примечание

Количество

77524C91

CASE ASSY, PTO gear

1шт.

1

382229C91

SEAL

3шт.

2

77525C1

RETAINER, bearing

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

9шт.

3

72071C1

GASKET

3шт.

4

75089C1

GEAR, 2200-014

1шт.

5

ST204A

BALL BEARING,35mm ID x 71.99mm OD x 17mm W

BEARING

4шт.

6

73308C1

THRUST WASHER

spacer, 10 ga., or as required

1шт.

6

73309C1

THRUST WASHER

spacer, 14 ga., or as required

1шт.

7

77526C1

SHAFT, output

1шт.

8

77527C1

SHAFT, input

1шт.

9

77528C1

CASE

1шт.

10

444699

PLUG,Hex Soc, 3/8"-18

3/8 auto hex soc pipe

2шт.

11

77529C1

COVER

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

4шт.

12

72217C1

BREATHER

1шт.

13

72072C1

COVER

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

3шт.

Выбрано товаров: 21
