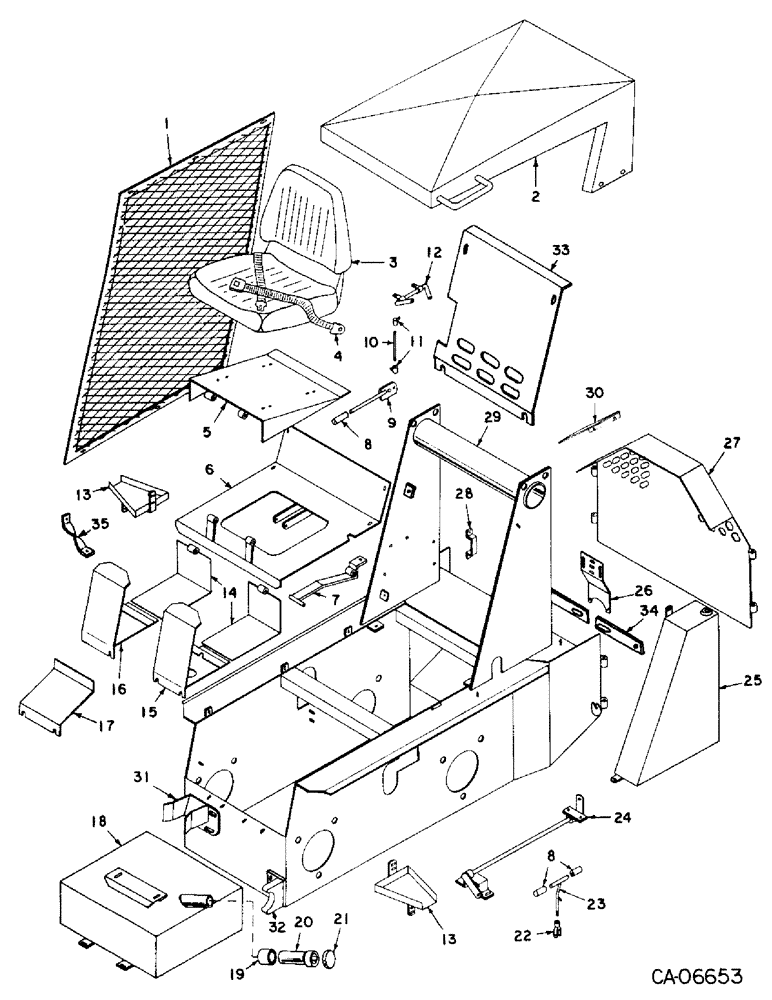

Запчасти Case 4125 (13-1) - SUPERSTRUCTURE (05) - SUPERSTRUCTURE
№
Артикул
Название
Примечание
Количество
1
77330C1
SCREEN, side
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1 type 5
6шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
12шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
6шт.
120377
NUT,3/8" - 16, Gr 5
6шт.
2
77331C1
CAB, ROPS, canopy
1шт.
180173
BOLT,Hex, 1/2" - 13 x 1", Gr 5
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
3
77332C91
SEAT ASSY
1шт.
77992C1
CUSHION
seat, back, replaces 77333C1
1шт.
77993C1
CUSHION
seat, bottom, replaces 77334C1
1шт.
77335C1
FRAME, seat
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4 type 5
12шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
12шт.
4
72179C1
BELT
SAFETY BELT
1шт.
5
77336C1
PLATE, seat mount
1шт.
189305
BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5
3/8 x 3-1/2 type 5
2шт.
9413953
LOCK NUT,3/8"-16, GB
NUT, 3/8 phc p/t lock type 5
2шт.
78054C1
STRIP, wear pad
1шт.
159336
SCREW,Cross Pan Hd, #6 - 32 x 1/2"
no. 6 x 1/2 znp p/hdcr mach
2шт.
178349
LOCK WASHER,Ext-Int Tooth, #6
WASHER, no. 6 ext-int tooth lock
2шт.
134530
NUT,Hex, #6 - 32
Machine screw #6-32
2шт.
6
77337C1
PLATE, seat
1шт.
24201R1
SELF-TAP SCREW,1/4" - 14 x 1"
SCREW, 1/4-14 x 1 h/hd tap
2шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1 type 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
7
77338C1
BAR, seat lock
1шт.
180130
BOLT,Hex, 3/8" - 16 x 2", Gr 5
3/8 x 2 type 5
1шт.
120377
NUT,3/8" - 16, Gr 5
3шт.
634979R1
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"
BOLT, 3/8 x 1-1/2 crg type 5
1шт.
8
72125C1
GRIP, throttle
3шт.
9
72006C1
LEVER, throttle
1шт.
72007C1
PAD, friction
1шт.
78242C1
BELLEVILLE WASHER
Belleville
2шт.
180183
BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5
1/2 x 2-1/4 type 5
1шт.
25555R1
WASHER,17/32" x 1 1/4" x .188", HDN
.531 x 1.250 x .188 phc hdn
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
10
77374C1
ROD, throttle
1шт.
120367
NUT,Hex, 1/4" - 28, Gr 5
1/4-NF type 5
2шт.
11
72266C1
END
rod
2шт.
120367
NUT,Hex, 1/4" - 28, Gr 5
1/4-NF type 5
2шт.
12
77340C1
PIVOT, throttle
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
13
73856C1
SUPPORT, filter mount
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
14
77341C1
PLATE, foot, RH
1шт.
14
77745C1
PLATE, foot, LH
1шт.
180138
BOLT,Hex, 3/8" - 16 x 3", Gr 5
3/8 x 3 type 5
2шт.
9413953
LOCK NUT,3/8"-16, GB
NUT, 3/8 phc p/t lock type 5
2шт.
15
77342C1
GUARD, foot, LH
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
16
77343C1
GUARD, foot, RH
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
17
77344C1
SHIELD, battery
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
18
77345C1
TANK, fuel
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
19
73331C1
HOSE, connector
1шт.
995220R1
CLAMP
hose
2шт.
20
77346C1
TUBE, extension
1шт.
21
72187C1
CAP
fuel
1шт.
22
144243
CLEVIS
3/8-24 adj rod end
1шт.
23
77347C1
HANDLE, belt tightener
1шт.
24
77348C1
PIVOT, belt tightener
1шт.
113-257
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
3/8 x 2-1/2 type 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
25
77349C1
TANK, hyd oil, reservoir
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
3шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
120377
NUT,3/8" - 16, Gr 5
3шт.
26
77350C1
BRACKET, pump, mount
1шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
189305
BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5
3/8 x 3-1/2 type 5
2шт.
27
77351C1
GATE, tail
1шт.
180138
BOLT,Hex, 3/8" - 16 x 3", Gr 5
3/8 x 3 type 5
4шт.
120377
NUT,3/8" - 16, Gr 5
8шт.
28
72117C1
SUPPORT, hose, clamp
1шт.
180126
BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5
3/8 x 1-1/2 type 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
29
77352C1
FRAME, main
1шт.
30
77353C1
PLATE, tailgate
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
31
77354C1
SUPPORT, lift arm, guide, Serial Range: -199
1шт.
31
78735C1
SUPPORT, lift arm, guide, Start Serial: 200
1шт.
120396
WASHER
.531 x 1.062 x .074
3шт.
120384
WASHER,1/2"
LOCK, 1/2"
3шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
3шт.
32
77355C1
SUPPORT, lift arm, Serial Range: -199
1шт.
32
78734C1
SUPPORT, lift arm, Start Serial: 200
1шт.
NLS
NO LONGER SERVICED
.531 x 1.062 x .074
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
33
77356C1
SHIELD, engine
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
34
77357C1
BAR, spreader
2шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1 type 5
2шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
2шт.
9413953
LOCK NUT,3/8"-16, GB
NUT, 3/8 phc p/t lock type 5
2шт.
35
77358C1
GUARD, foot
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
Выбрано товаров: 120
