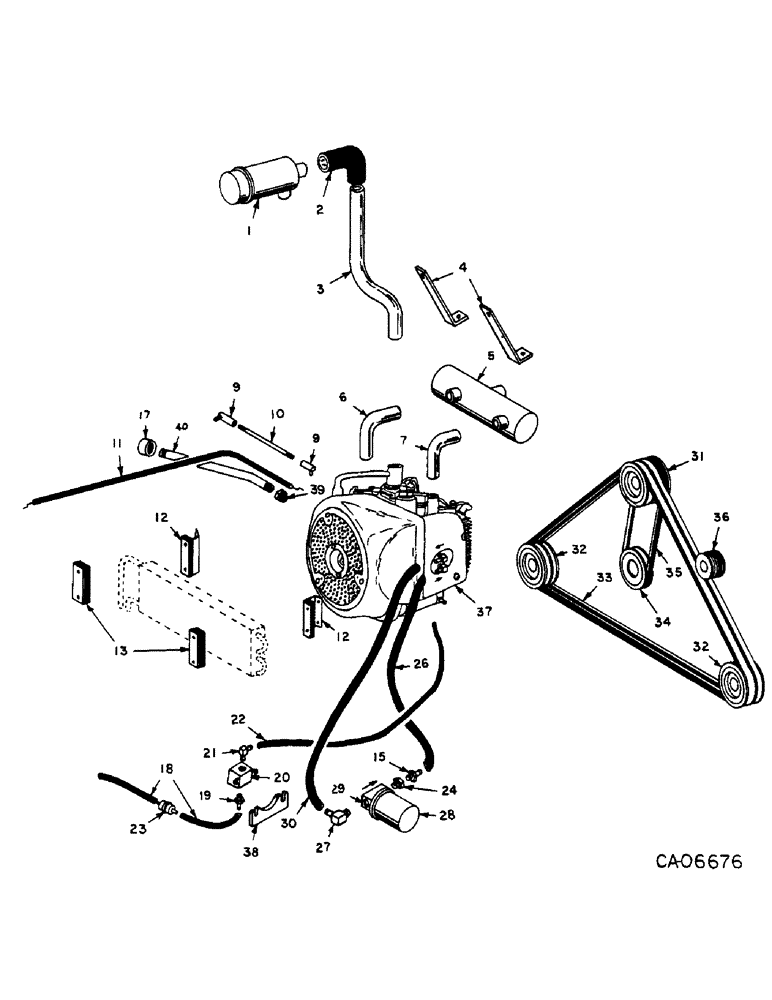

Запчасти Case 4125 (12-12) - POWER, ENGINE & MOUNTING (04) - Drive Train

1

73262C91

CLEANER ASSY, air

1шт.

73264C1

ELEMENT

air cleaner

1шт.

73265C1

WASHER

gasket

1шт.

73266C1

SCREW

WASHER, gasket

1шт.

73267C1

CLAMP

1шт.

73268C1

BAFFLE

1шт.

73269C1

CUP

1шт.

2

77366C1

HOSE, adapter

1шт.

27337R1

HOSE CLAMP,#28, 1.31/2.25 Type F Worm, W/liner

CLAMP, #28 hose

2шт.

3

77367C1

PIPE, air inlet

1шт.

4

77368C1

BRACKET, muffler

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

77369C1

MUFFLER

1шт.

77370C1

CLAMP

muffler

2шт.

6

77371C1

TUBE,4.625" Length

exhaust, RH

1шт.

77372C1

CLAMP, muffler

1шт.

7

77373C1

TUBE,1.375" OD, 7" Length

exhaust, LH

1шт.

77372C1

CLAMP, muffler

1шт.

9

72266C1

END

rod

2шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-NF type 5

2шт.

10

77374C1

ROD, throttle

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-NF type 5

1шт.

11

77375C1

CABLE

choke

1шт.

12

77376C1

BRACKET, oil cooler

2шт.

77377C1

PAD, foam

2шт.

23998R1

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Hd, 1/4" x 1/2"

4шт.

13

77378C1

BAR, retainer

2шт.

77377C1

PAD, foam

2шт.

180044

SPRING

1/4 x 2 type 5

4шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

15

74761C1

CONNECTOR

1шт.

17

110675

CAP,3/8" NPT

3/8 pipe

1шт.

18

77379C1

HOSE, fuel

2шт.

72271C1

CLAMP, hose

4шт.

19

75322C1

ELBOW

1шт.

20

76449C1

PUMP

fuel

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

21

72221C1

ELBOW

1шт.

22

77380C1

HOSE, fuel

1шт.

72271C1

CLAMP, hose

2шт.

23

72272C1

FILTER

fuel

1шт.

24

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

adapter, pipe 3/4"-14 NPTF x 1/2"-18 Fem NPTF

1шт.

26

NSS

NOT SOLD SEPARAT

HOSE, engine oil feed, use 22 inches from bulk roll marked 526602R1

1шт.

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP, #8 hose

2шт.

27

73496C1

ELBOW

1шт.

28

73321C1

ELEMENT

filter

1шт.

29

76396C1

HEAD, filter

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

30

NSS

NOT SOLD SEPARAT

HOSE, oil return, use 36 inches from bulk roll marked 526602R1

1шт.

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP, #8 hose

2шт.

31

77381C1

PULLEY, engine

1шт.

72406C1

HUB, pulley, 5005-013

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

479370R1

KEY,1/4" Sq x 2", Par

1/4 x 2 sq. parallel

1шт.

32

77382C1

PULLEY, pump drive

2шт.

77383C1

HUB, pulley

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

2шт.

33

77384C1

SET OF BELTS,70.00" L

70.00" L

1шт.

34

77385C1

PULLEY, pump drive

1шт.

72429C1

HUB, pulley

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

35

77386C1

BELT

Pump Drive

1шт.

36

77387C1

PULLEY

idler

2шт.

77388C1

SPACER

inner

1шт.

77389C1

SPACER

outer

1шт.

271725

SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8 x 2-1/2 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

37

77023C91

ENGINE ASSY

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

38

77390C1

BRACKET, fuel pump

1шт.

39

175778H1

ADAPTER

1/2-3/8 reducing pipe

1шт.

40

77391C1

PIPE, oil drain

1шт.
