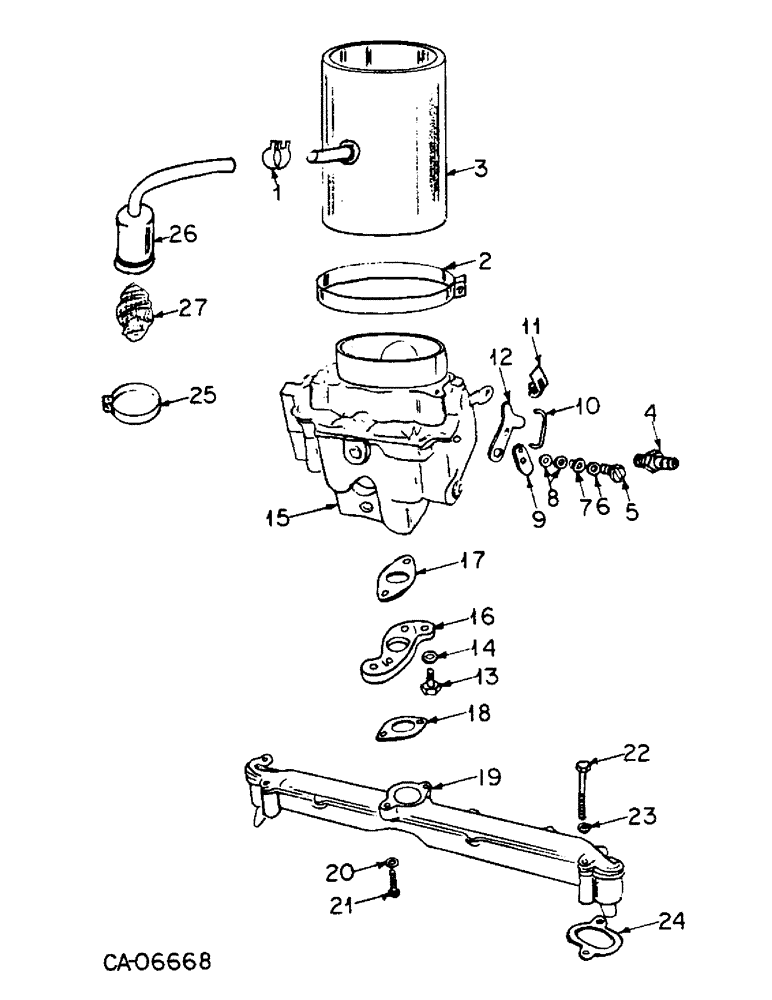

Запчасти Case 4125 (12-10) - POWER, FUEL SYSTEM (04) - Drive Train

1

77103C1

CLAMP

1шт.

2

77104C1

CLAMP, air inlet

1шт.

3

77105C1

TUBE, air inlet

1шт.

4

75322C1

CONNECTOR

1шт.

5

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

no. 10-NF x 1/2 znp p/hds mach

2шт.

6

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

7

77106C1

BUSHING

1шт.

8

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

9

77107C1

PLATE, swivel

1шт.

10

77108C1

SPLIT PIN/SAFETY PIN

ROD, link

1шт.

11

74176C1

CLAMP

choke

1шт.

12

75327C1

BRACKET, choke

1шт.

13

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

2шт.

14

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

NSS

NOT SOLD SEPARAT

REFER TO CARBURETOR

1шт.

16

77109C1

ADAPTER

1шт.

17

75324C1

GASKET

carb mtg.

1шт.

18

77100C1

GASKET

1шт.

19

77111C1

KIT

MANIFOLD, intake

1шт.

20

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

413-422

BOLT,Hex, 1/4" - 20 x 1-3/8", Gr 5

1/4 x 1-3/8 type 5

2шт.

22

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16 x 2 type 5

1шт.

23

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

24

77112C1

MANIFOLD GASKET

manifold

2шт.

25

77113C1

CLAMP

filter

1шт.

26

77114C1

TUBE

breather

1шт.

27

74030C1

BAFFLE, breather

1шт.
