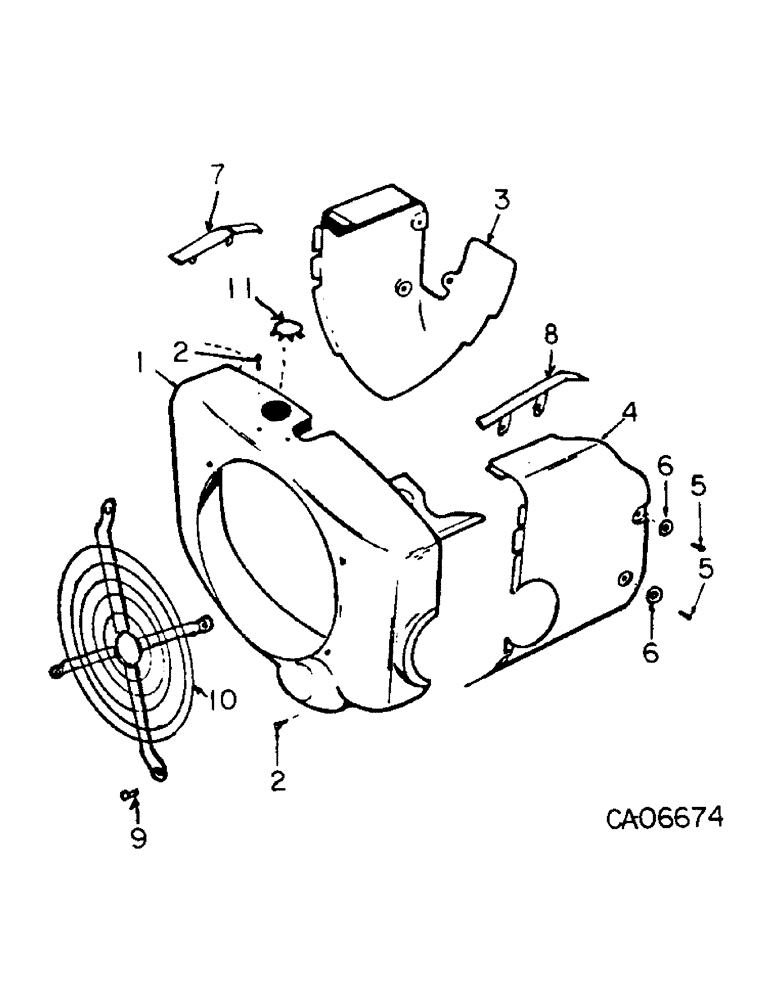

Запчасти Case 4125 (12-06) - POWER, HOUSING (04) - Drive Train

1

77087C1

HOUSING, blower

1шт.

2

74261C1

SCREW,Hex, 1/4" - 20 x 0.50"

1/4 x 7/16

3шт.

3

77088C1

HOUSING

cyl air, LH

1шт.

4

77089C1

HOUSING, cyl air, RH

1шт.

5

77090C1

SCREW

1/4 x 5/8

4шт.

6

120392

WASHER,1/4", SAE

.281 x .625 x .051

4шт.

7

77091C1

BAFFLE ASSY.

BAFFLE, cyl head, LH

1шт.

8

77092C1

BAFFLE ASSY.

BAFFLE, cyl head, RH

1шт.

9

77093C1

SCREW W/WASHER, #14 x 1/2

4шт.

10

77094C1

GUARD

1шт.

11

77095C1

BUTTON

PLUG, button

1шт.
