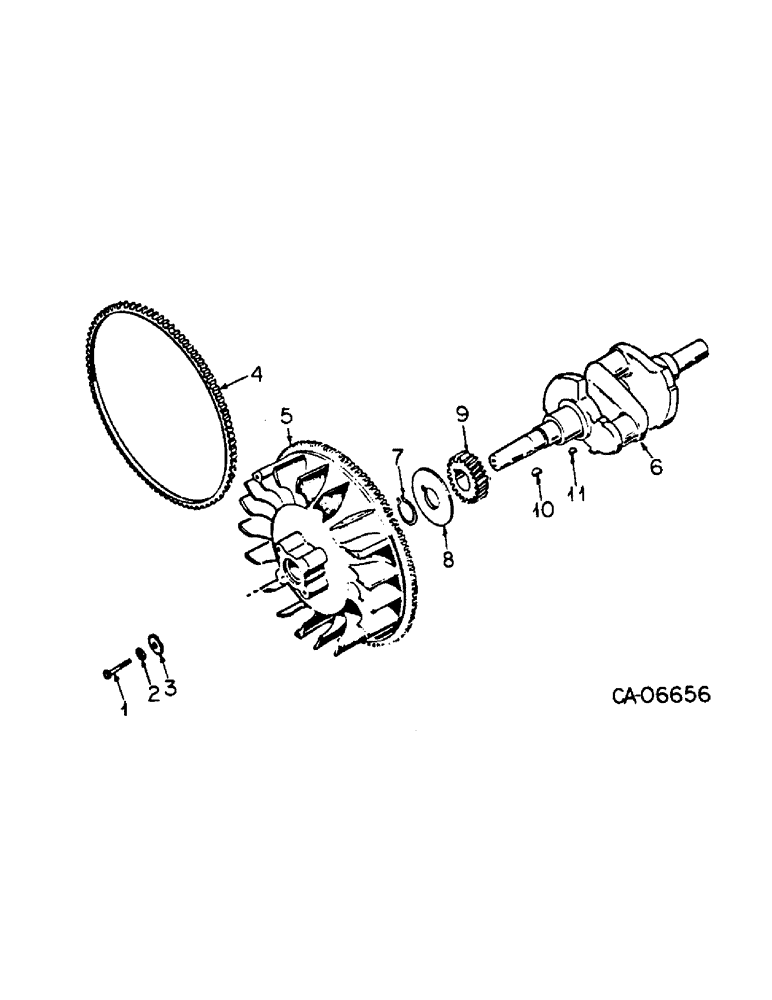

Запчасти Case 4125 (12-05) - POWER, CRANKSHAFT & FLYWHEEL (04) - Drive Train

1

180165

BOLT,Hex, 7/16" - 14 x 4", Gr 5

7/16 x 4 type 5

1шт.

2

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

3

77080C1

WASHER

1шт.

4

77081C1

RING

GEAR, ring

1шт.

5

77082C91

FLYWHEEL

ASSY, includes ref. no. 4

1шт.

6

77036C1

CRANKSHAFT

1шт.

7

NLS

NO LONGER SERVICED

RING, gear retaining

1шт.

8

74103C1

WASHER

gear retaining

1шт.

9

74102C1

GEAR

crankshaft

1шт.

10

74101C1

KEY

flywheel

1шт.

11

74100C1

KEY

crankshaft gear

1шт.
