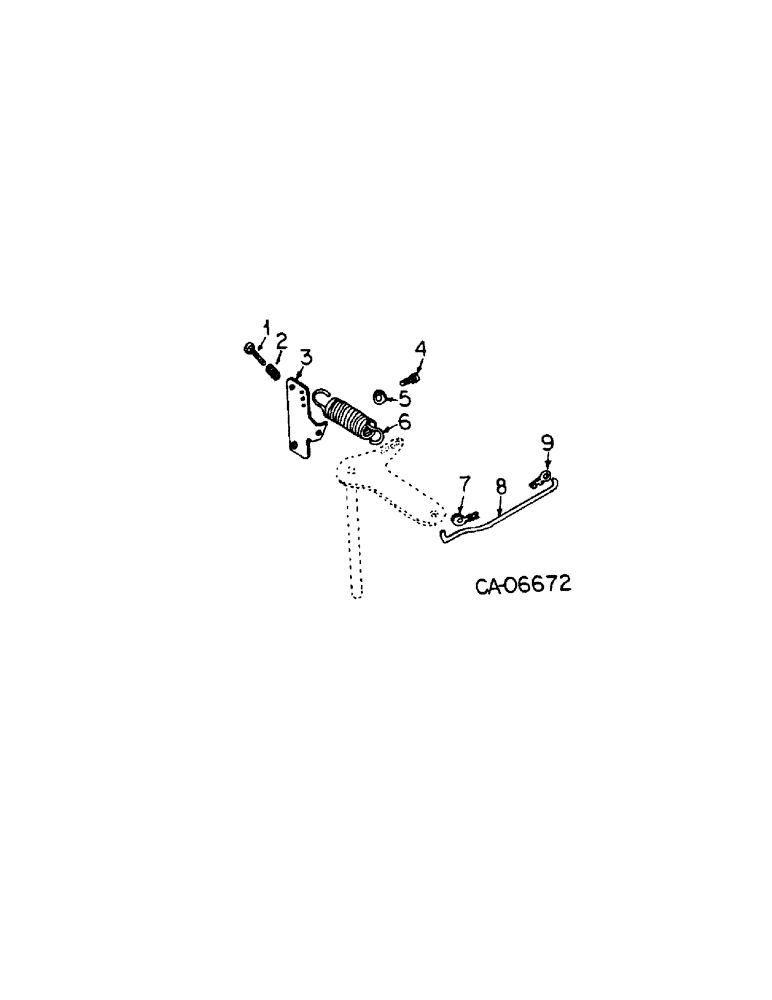

Запчасти Case 4125 (12-05[A]) - POWER, GOVERNOR (04) - Drive Train

1

100740

SCREW, no. 6 x 3/4 pln r/hds mach Slotted Rd Hd, #6-32 x 3/4"

1шт.

2

74249C1

COMPRESSION SPRING

SPRING, idle setting

1шт.

3

77084C1

ARM

governor control

1шт.

4

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

5

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

6

74244C1

SPRING

governor

1шт.

7

77085C1

CLIP

retaining

1шт.

8

77086C1

ROD

control

1шт.

9

76899C1

CLIP, retaining

1шт.
