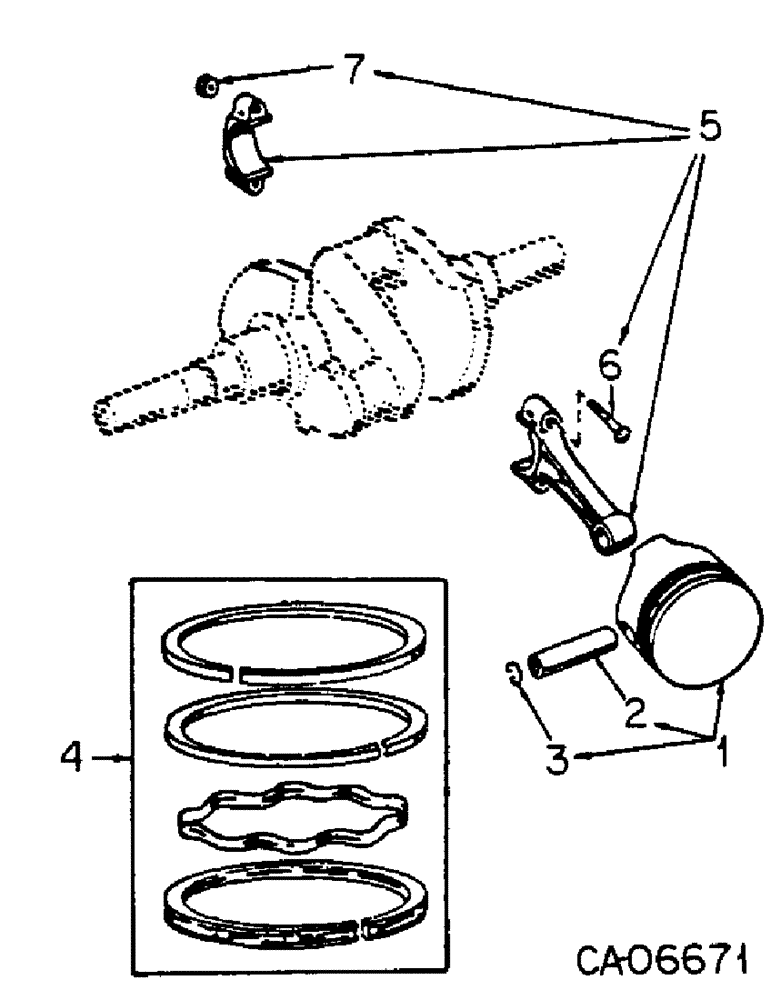

Запчасти Case 4125 (12-03) - POWER, PISTON & ROD (04) - Drive Train

1

77059C91

PISTON

SET, piston & pin, std.

2шт.

1

77060C91

PISTON

SET, piston & pin, .005 O/S

2шт.

1

77061C91

PISTON

SET, piston & pin, .010 O/S

2шт.

1

77062C91

PISTON

SET, piston & pin, .020 O/S

2шт.

1

77063C91

PISTON

SET, piston & pin, .030 O/S

2шт.

1

77064C91

PISTON

SET, piston & pin, .040 O/S

2шт.

2

74125C1

PIN, piston

2шт.

3

77065C1

OIL SEAL

RING, piston pin retaining

4шт.

4

77066C1

SET, piston ring, std.

2шт.

4

77067C1

SET, piston ring, .005 O/S

2шт.

4

77068C1

SET, piston ring, .010 O/S

2шт.

4

77069C1

SET, piston ring, .020 O/S

2шт.

4

77070C1

SET, piston ring, .030 O/S

2шт.

4

77071C1

SET, piston ring, .040 O/S

2шт.

5

77072C91

ROD, CONNECTING

ROD ADDY, connecting, std.

2шт.

5

77073C91

ROD, CONNECTING

ROD ASSY, connecting, .010 U/S

2шт.

5

77074C91

ROD, CONNECTING

ROD ASSY, connecting, .020 U/S

2шт.

5

77075C91

ROD, CONNECTING

ROD ASSY, connecting, .030 U/S

2шт.

6

77076C1

BOLT, connecting rod 2

4шт.

7

25737R1

LOCK NUT,5/16"-24, GB

NUT, 5/16-NF p/t lock type 5

4шт.
