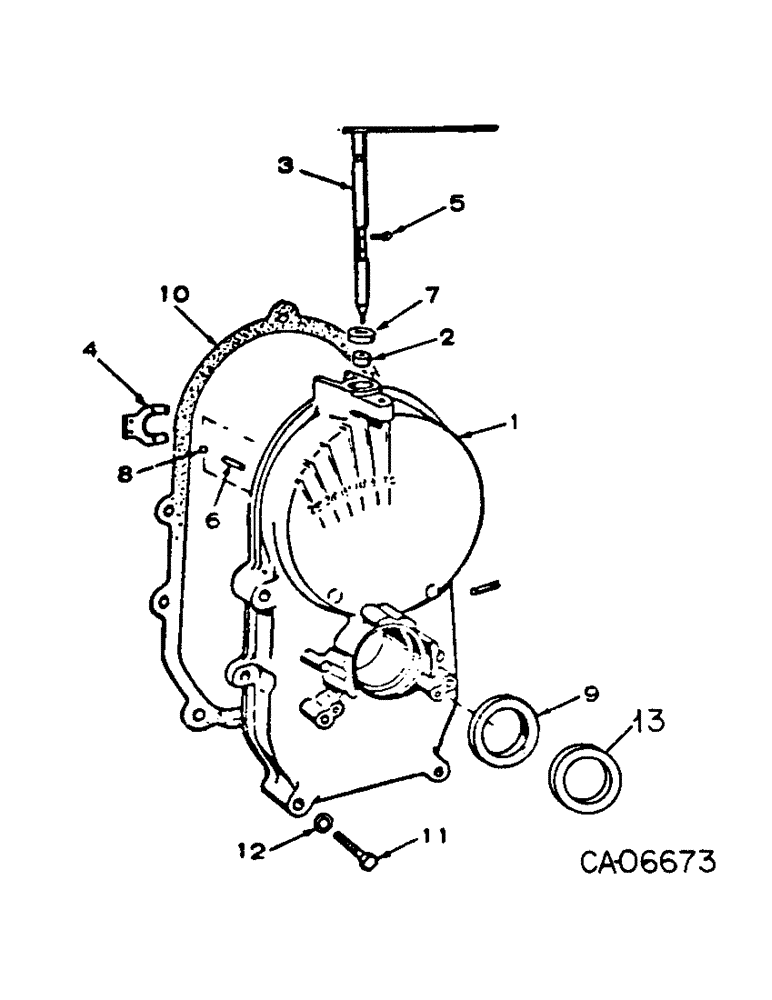

Запчасти Case 4125 (12-02) - POWER, GEAR CASE (04) - Drive Train

1

77055C91

GEAR

CASE ASSY, gear, includes ref nos. 2 thru 9 & 13

1шт.

2

74143C1

BALL BEARING

upper gov shaft sleeve

1шт.

3

77056C1

GOVERNOR

SHAFT ASSY, governor

1шт.

4

74145C1

FORK

YOKE GOVERNOR SHAFT

1шт.

5

159582

SCREW,Cross Pan Hd, #8 x 3/8"

no. 8 x 3/8 znp p/hdcr mach

2шт.

6

75317C1

PIN, roll

1шт.

7

74148C1

SEAL

SEAL, gov. shaft oil

1шт.

8

74147C1

BALL

BEARING, ball

1шт.

9

77057C1

SEAL, oil

1шт.

10

74149C1

GASKET

gear case

1шт.

11

25750R1

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8

5/16 x 1-3/4 phc type 8

5шт.

12

74152C1

WASHER

gear case mounting

5шт.

13

77058C1

SEAL, dust

1шт.
