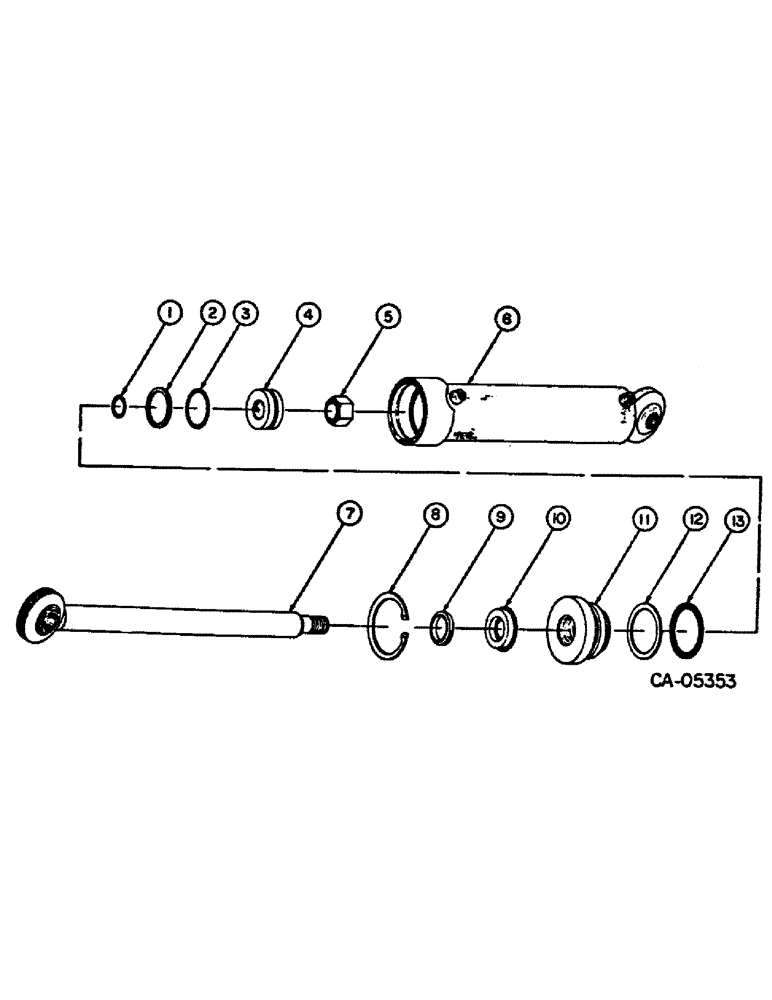

Запчасти Case 4120 (10-6) - HYDRAULICS, TILT CYLINDER (07) - HYDRAULICS

72377C91

CYLINDER ASSY, tilt

1шт.

1

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk

1шт.

2

72574C1

SEAL

piston

1шт.

3

27034R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 6, 90 Duro

2.050 x 2.256 x .103

1шт.

4

72387C1

PISTON

1шт.

5

19638R1

LOCK NUT,3/4"-16, GB

NUT, 3/4-16 nylon inert

1шт.

6

72388C1

BODY, cylinder

1шт.

7

72389C1

ROD

cylinder

1шт.

8

603625C1

SNAP RING,2.875", Int, #287

Ring, Snap, 2.875", Int, #287

1шт.

9

72310C1

WIPER SEAL

WIPER, rod

1шт.

10

72311C1

SEAL

rod

1шт.

11

72933C91

KIT

packing head

1шт.

12

23502R1

RING,Rect, 2.25" ID x 2.5" OD, Cl 5

WASHER, 2.234 x 2.502 x .134 backup

1шт.

13

343923R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

2.324 x 2.512 x .139

1шт.

75132C91

SEAL KIT

PACKAGE, o-ring & seal service

1шт.
