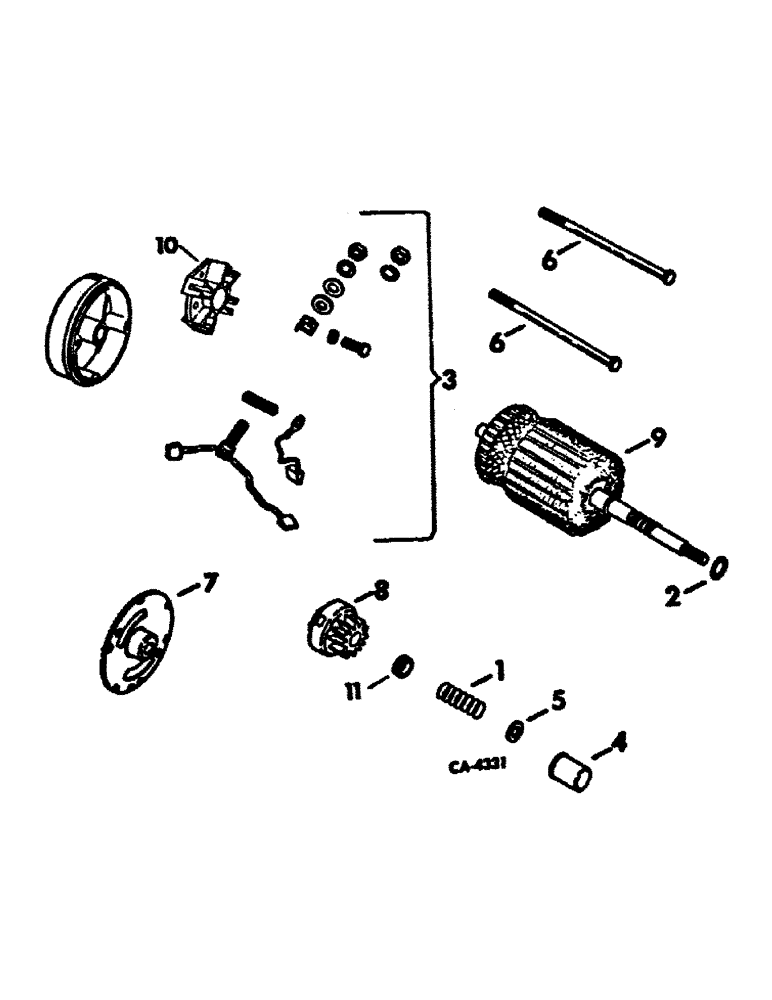

Запчасти Case 4120 (08-2) - ELECTRICAL, STARTER MOTOR (06) - ELECTRICAL

117167C93

STARTER MOTOR

STARTER ASSY, American Bosch 12507-29-M030SM

1шт.

117167C94

MOTOR HOUSING

STARTER ASSY, American Bosch 14925-27-M030SM, American Bosch XSM55-0242A

1шт.

1

117182C1

SPRING

anti-drift

1шт.

2

117183C1

WASHER, armature thrust

1шт.

3

117184C91

CYLINDER END CAP

CAP ASSY, commutator end

1шт.

4

117185C1

STOP

COVER, dust

1шт.

5

117186C1

STOP

SPACER, stop gear

1шт.

6

117187C1

BOLT, thru

2шт.

7

117188C1

CAP ASSY, drive end

1шт.

8

75802C1

KIT, drive

1шт.

8

132056C2

PACKAGE

KIT, drive, Used w/117167C93, 117167C94

1шт.

9

132057C1

ARMATURE

ASSY, For use w/starter 117167C93, 117167C94

1шт.

10

117194C1

HOLDER, brush

1шт.

117191C1

WASHER, spacing

1шт.

121637

LOCK WASHER

WASHER, 1/4 znd spring lock

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

117192C1

BUSHING

1шт.

117193C1

WASHER

1шт.

11

117195C1

SPACER

1шт.

117115C91

KIT, starter brush, Consists of

1шт.

NSS

NOT SOLD SEPARAT

SPRING - brush

4шт.

NSS

NOT SOLD SEPARAT

BRUSH ASSY

2шт.

NSS

NOT SOLD SEPARAT

BRUSH AND SCREW ASSY

1шт.

75803C1

NUT, stop

1шт.

75804C1

KIT, insulating hardware

1шт.

75807C1

KIT, brush holder

1шт.

72275C91

LIGHT ASSY, head, lighting attachment

3шт.

72611C1

CONNECTOR, lighting attachment

2шт.

72612C1

CABLE, jumper, lighting attachment

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap, lighting attachment

2шт.

72276C91

LIGHT ASSY, tail, lighting attachment

1шт.

72467C1

PLATE, tail light mtg, lighting attachment

1шт.

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

10-24 x 3/4 znd hex-hd mach, lighting attachment

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

Lighting attachment #10-24

2шт.

72611C1

CONNECTOR, lighting attachment

1шт.

72613C1

CABLE, jumper, lighting attachment

2шт.

72615C1

CONNECTOR, lighting attachment

1шт.

72611C1

CONNECTOR, lighting attachment

1шт.

72616C1

CABLE, jumper, lighting attachment

1шт.

647646C91

SWITCH, lighting attachment

1шт.

72281C1

CABLE, jumper, lighting attachment

2шт.

72278C1

CABLE, switch to ignition, lighting attachment

1шт.
