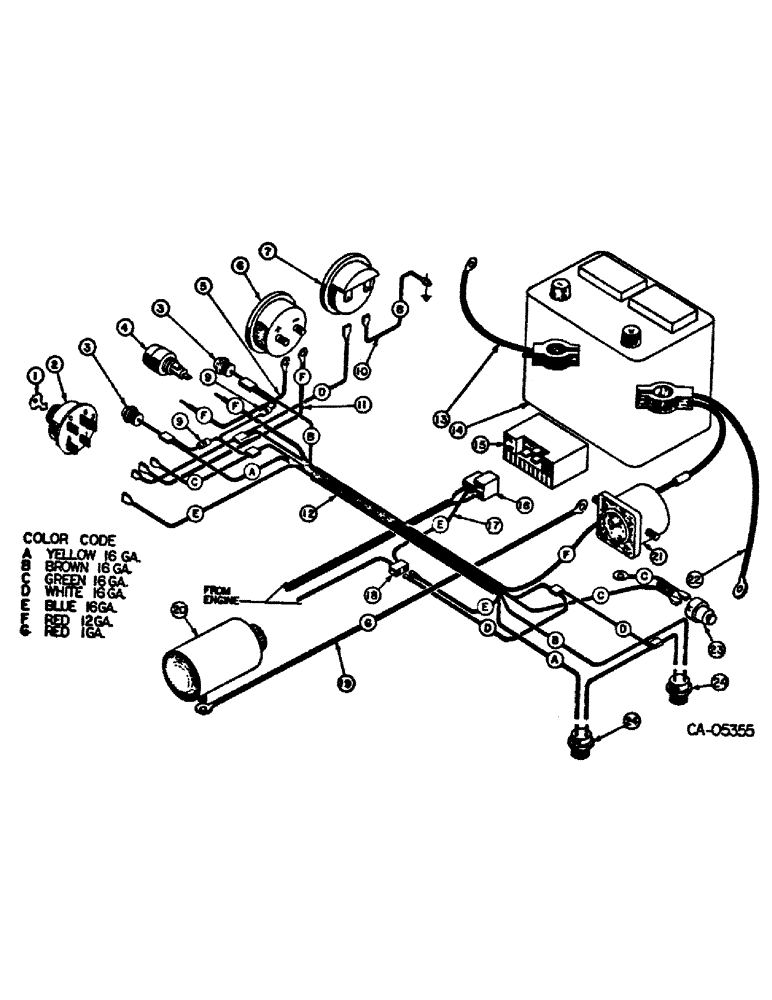

Запчасти Case 4120 (08-1) - ELECTRICAL (06) - ELECTRICAL

1

72243C1

KEY

ignition

1шт.

2

72541C1

SWITCH

ignition

1шт.

3

72596C91

LIGHT, indicator

2шт.

200557H1

BULB,C2V, #1815, 14V

replacement

2шт.

4

72245C1

HOLDER, fuse, 30 amp

1шт.

147686

FUSE,30 Amp, Type SFE

replacement, 30 amp

1шт.

5

72146C1

CABLE, ammeter, fuse wiring

1шт.

6

77592C91

KIT

ammeter, Replaces 72597C1

1шт.

7

72241C1

METER

hour

1шт.

9

72598C1

RECTIFIER

1шт.

10

72145C1

CABLE, jumper, hour meter to ground, For use with ammeter 72597C1

1шт.

10

77696C1

CABLE, gauge ground, For use with ammeter 77591C1

1шт.

11

72472C1

CABLE, jumper, Serial Range: ammeter-switch

1шт.

12

72471C1

HARNESS, wiring

1шт.

13

72136C1

CABLE

battery, neg

1шт.

14

538976R1

BATTERY, Prestolite 2226X, 12 volt

1шт.

15

75814C1

REGULATOR ASSY

1шт.

453007

SCREW

W/SPRING LOCK WASHER, 1/4-20 x 1 hex-hd mach

2шт.

75815C1

CONNECTOR

1шт.

16

72600C1

CONNECTOR, 3 prong

1шт.

17

72473C1

CABLE, 3 prong connector to 2 prong

1шт.

18

72588C1

CONNECTOR, 2 prong

1шт.

19

72474C1

CABLE, starter

1шт.

20

117167C93

STARTER MOTOR

STARTER ASSY, Serial Range: Refer-engine

1шт.

21

72589C1

RELAY

starter

1шт.

22

72136C1

CABLE

battery, pos

1шт.

23

121629C1

IGNITION SWITCH

SWITCH, neutral starting

1шт.

24

75824C1

SWITCH SENDER

2шт.
