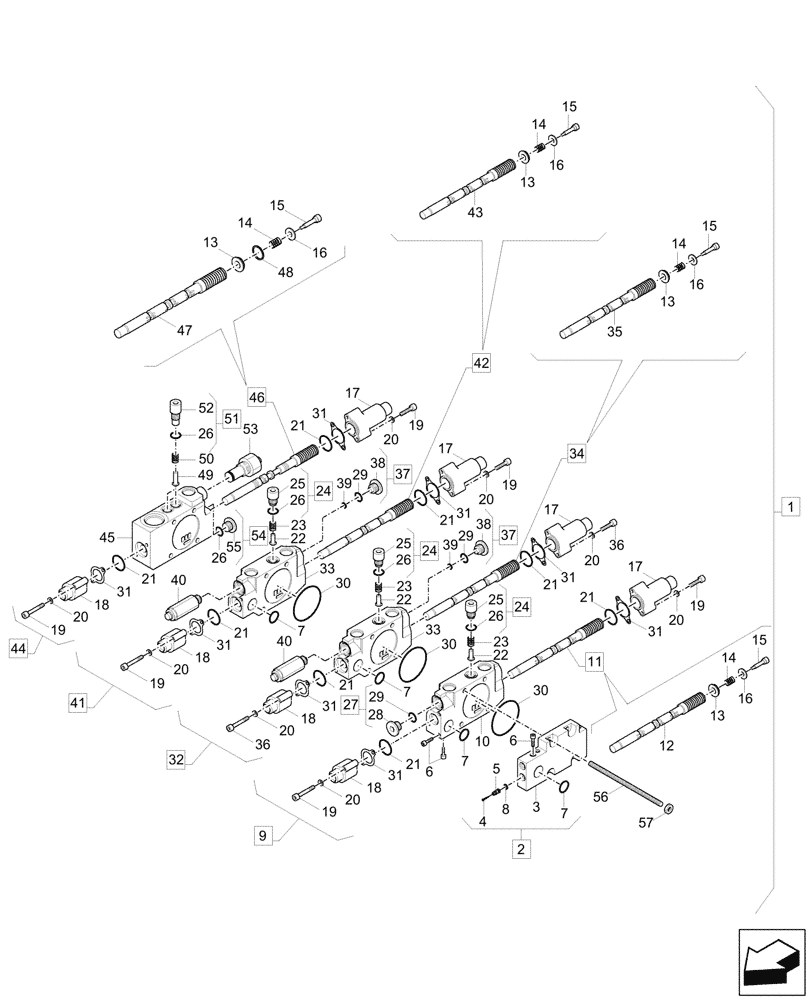

Запчасти Case CX60C (35.359.010) - CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

31M9-16150

CONTROL VALVE

ASSY, Incl 2, 9, 32, 41, 44, 56, 57

1шт.

1St Auxilliary Single Acting (Hammer), Var. 747093

1шт.

See Also Figure 35.359.020, 35.359.030, 35.359.040

1шт.

1

31M9-18150

CONTROL VALVE

ASSY, Incl 2, 9, 32, 41, 44, 56, 57

1шт.

See Also Figure 35.359.020, 35.359.030, 35.359.040

1шт.

1St Auxilliary 2-Way Joystick, Var. 747122

1шт.

2

XKCG-00318

COVER

ASSY, Incl 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

Cover, Incl in 2

1шт.

4

XKCG-00098

ORIFICE

1шт.

5

XKCG-00044

FILTER

1шт.

6

XKCG-00050

SCREW

3шт.

7

XKCG-00097

O-RING

4шт.

8

XKCG-00566

O-RING

1шт.

9

XKCG-00122

VALVE SECTION

Swing, ASSY, Incl 6, 7, 10, 11, 17 - 24, 27, 30, 31

1шт.

10

NSS

NOT SOLD SEPARAT

Body, Incl in 9

1шт.

11

XKCG-00126

KIT

Spool, Swing, ASSY, Incl 12 - 16

1шт.

12

NSS

NOT SOLD SEPARAT

Spool, Swing, Incl in 11

1шт.

13

XKCG-00109

SPRING SEAT

4шт.

14

XKCG-00108

SPRING

4шт.

15

NSS

NOT SOLD SEPARAT

Bolt, Incl in 11, 34, 42, 46

4шт.

16

XKCG-00106

SPRING SEAT

4шт.

17

XKCG-00118

CAP

4шт.

18

XKCG-00115

CAP

4шт.

19

XKCG-00117

ADJUSTING WRENCH

12шт.

20

XKCG-00116

WASHER

16шт.

21

XKCG-00119

O-RING

8шт.

22

XKCG-00090

POPPET

3шт.

23

XKCG-00091

SPRING

3шт.

24

XKCG-00092

PLUG

ASSY, Incl 25, 26

3шт.

25

XKCG-00104

PLUG

M14

3шт.

26

XKCG-00103

O-RING

5шт.

27

XKCG-00125

PLUG

ASSY, Incl 28, 29

2шт.

28

XKCG-00123

PLUG

PF3/8

1шт.

29

XKCG-00059

O-RING

3шт.

30

XKCG-00112

O-RING

3шт.

31

XKCG-00111

GASKET

8шт.

32

XKCG-00187

VALVE SECTION

Dozer, ASSY, Incl 7, 17, 18, 20 - 24, 30, 31, 33, 34, 36, 37, 40

1шт.

33

NSS

NOT SOLD SEPARAT

Body, Incl in 32, 41

2шт.

34

XKCG-00135

KIT

Spool, Dozer, ASSY, Incl 13 - 16, 35

1шт.

35

NSS

NOT SOLD SEPARAT

Spool, Dozer, Incl in 34

1шт.

36

XKCG-00073

BOLT

4шт.

37

XKCG-00113

PLUG

ASSY, Incl 29, 38, 39

2шт.

38

NSS

NOT SOLD SEPARAT

Plug, Incl in 37

2шт.

39

XKCG-00101

O-RING

2шт.

40

XKCG-00134

VALVE

2шт.

41

XKCG-00216

VALVE SECTION

Boom Swing, ASSY, Incl 7, 17 - 24, 30, 31, 33, 37, 40, 42

1шт.

42

XKCG-00218

KIT

Spool, Boom Swing, ASSY, Incl 13 - 16, 43

1шт.

43

NSS

NOT SOLD SEPARAT

Spool, Boom Swing, Incl in 42

1шт.

44

XKCG-00188

VALVE SECTION

Inlet, ASSY, Incl 17 - 21, 31, 45, 46, 49 - 51, 53, 54

1шт.

45

NSS

NOT SOLD SEPARAT

Body, Incl in 44

1шт.

46

XKCG-00145

SPOOL

Spool, Inlet, ASSY, Incl 13 - 16, 47, 48

1шт.

47

NSS

NOT SOLD SEPARAT

Spool, Inlet, Incl in 46

1шт.

48

XKCG-00105

SHIM

2шт.

49

XKCG-00144

POPPET

2шт.

50

XKCG-00143

SPRING

2шт.

51

XKCG-00142

PLUG

ASSY, Incl 26, 52

2шт.

52

NSS

NOT SOLD SEPARAT

Plug M14, Incl in 51

1шт.

53

XKCG-00588

HYDRAULIC VALVE

1шт.

54

XKCG-00140

CAP

PF1/4, ASSY, Incl 26, 55

1шт.

55

NSS

NOT SOLD SEPARAT

Cap, PF1/4, Incl in 54

1шт.

56

XKCG-00211

BOLT

4шт.

1St Auxilliary 2-Way Joystick, Var. 747122

1шт.

56

XKCG-00212

BOLT

4шт.

1St Auxilliary Single Acting (Hammer), Var. 747093

1шт.

57

XKCG-00201

NUT

4шт.
