(35.357.040) - PILOT CONTROLS, CONTROL VALVE, PEDAL, LINES

Запчасти Case CX60C (35.357.040) - PILOT CONTROLS, CONTROL VALVE, PEDAL, LINES (35) - HYDRAULIC SYSTEMS

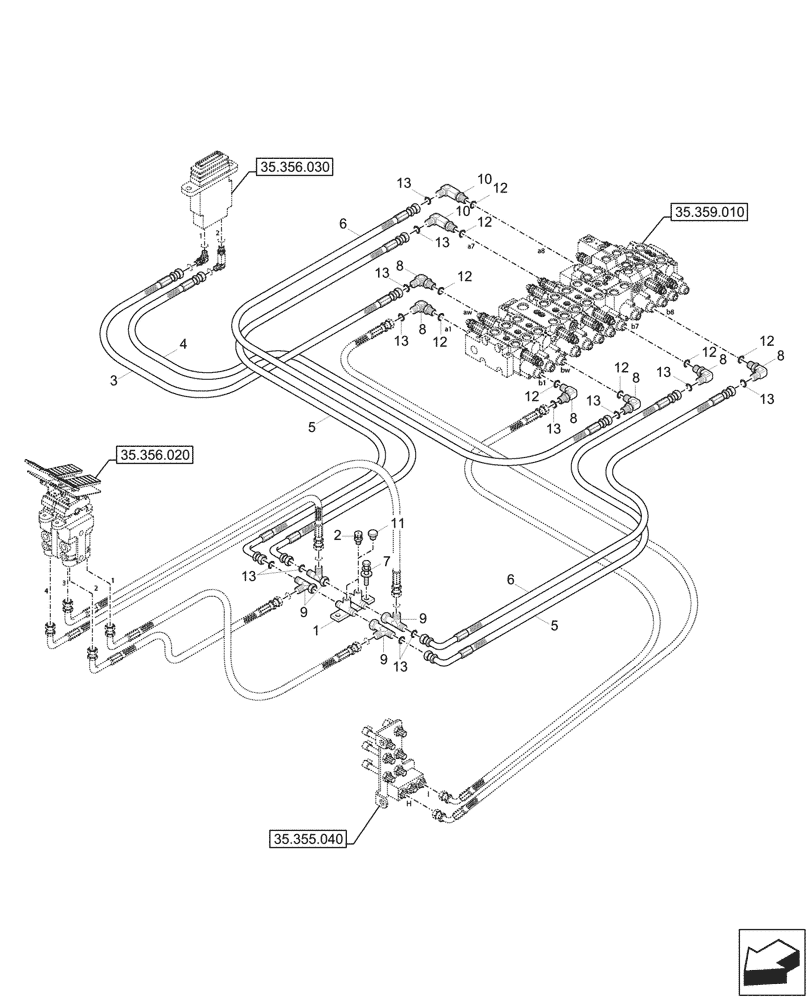

Схема запчастей Case CX60C - (35.357.040) - PILOT CONTROLS, CONTROL VALVE, PEDAL, LINES (35) - HYDRAULIC SYSTEMS
35.355.040
3
9
8
10
8
6
12
8
2
6
8
13
8
12
12
10
13
12
12
13
5
13
9
5
12
7
12
13
8
9
11
13
4
13
12
13
13
1
13
35.359.010
35.356.020
35.356.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

31MH-20360

HYDRAULIC VALVE

1шт.

2

31E5-40540

SWITCH

2шт.

With Travel Alarm, Var. 747453

1шт.

3

P910-042015

HYDRAULIC HOSE

1шт.

4

P910-042018

HYDRAULIC HOSE

1шт.

5

X420-042013

HYDRAULIC HOSE,9/16 - 18 UNF x 650mm

2шт.

6

X420-042014

HYDRAULIC HOSE

2шт.

7

S037-102526

BOLT,M10 x 1.5 x 25mm

2шт.

8

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

6шт.

9

X840-515151

TEE,9/16 - 18 UNF

4шт.

10

31N6-25110

ELBOW,PF 1/4 x 9/16 - 18 UNF

2шт.

11

P220-430201

PLUG

2шт.

Without Travel Alarm, Var. 747994

1шт.

12

S631-011004

O-RING,PF 1/4

8шт.

13

S621-011001

O-RING,9/16 - 18 UNF

12шт.
