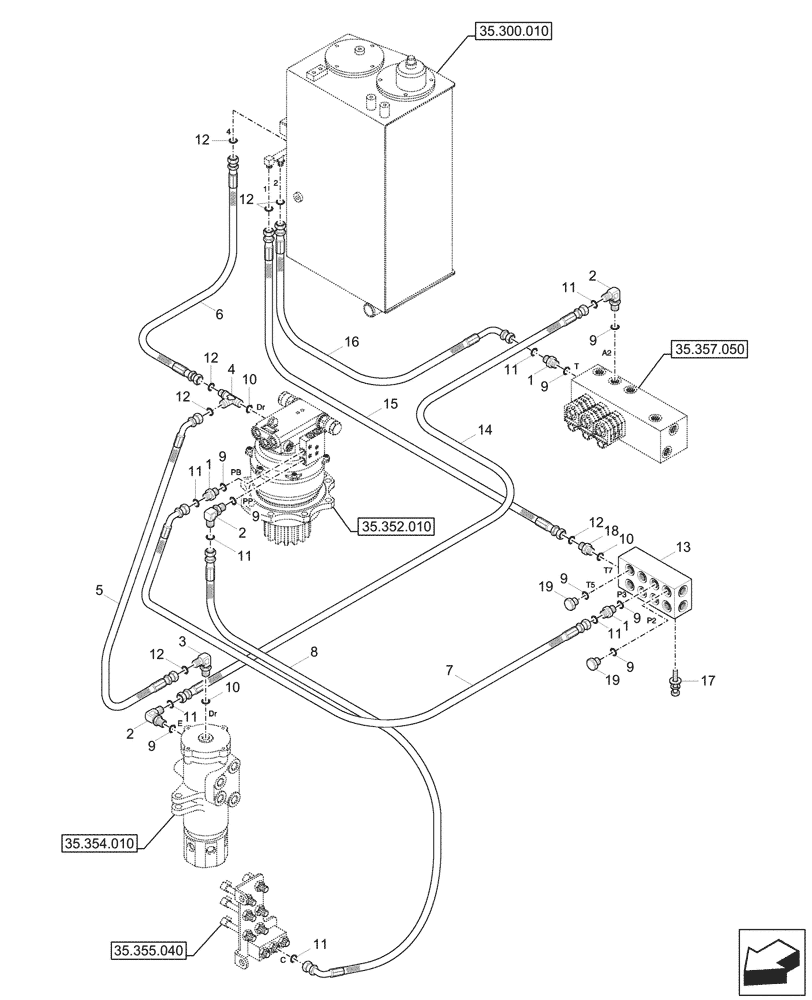

Запчасти Case CX60C (35.357.010) - PILOT CONTROLS, HYDRAULIC OIL RESERVOIR, LINES (35) - HYDRAULIC SYSTEMS

1

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

2шт.

2

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

3шт.

3

X520-110002

ELBOW,PF 3/8 x 11/16 - 16 UNF

1шт.

4

X810-065252

TEE

1шт.

5

P920-062014

HYDRAULIC HOSE

1шт.

6

X400-062024

HYDRAULIC HOSE

1шт.

7

X410-042010

HYDRAULIC HOSE,9/16 - 18 UNF x 500mm

1шт.

8

X410-042037

HYDRAULIC HOSE

1шт.

9

S631-011004

O-RING,PF 1/4

8шт.

10

S631-014004

O-RING

3шт.

11

S621-011001

O-RING,9/16 - 18 UNF

7шт.

12

S621-012001

O-RING

7шт.

13

31M8-12681

BLOCK

1шт.

14

X400-042016

HYDRAULIC HOSE

1шт.

15

X400-062020

HYDRAULIC HOSE

1шт.

16

X420-042013

HYDRAULIC HOSE,9/16 - 18 UNF x 650mm

1шт.

17

S035-082526

BOLT,M8 x 1.25 x 25mm

2шт.

18

X500-110002

HYD CONNECTOR,PF 3/8 x 11/16 - 16 UNF

1шт.

19

P220-110102

PLUG

2шт.
