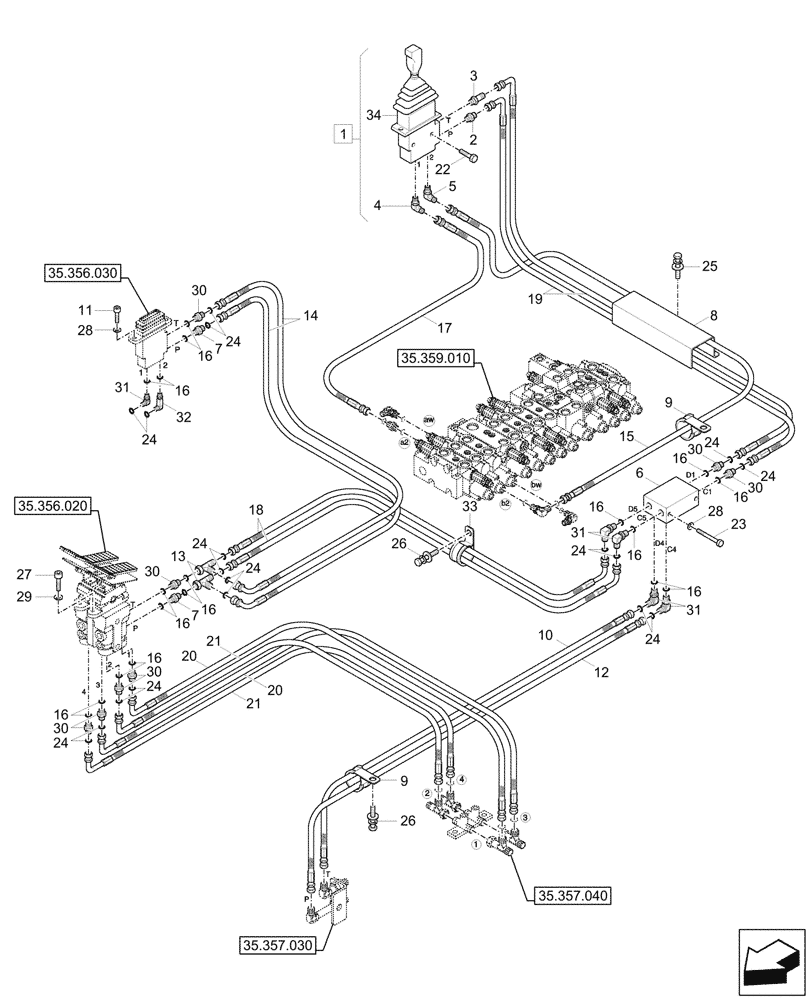

Запчасти Case CX60C (35.355.060) - PILOT CONTROLS, DOZER, LINES (35) - HYDRAULIC SYSTEMS

1

31M9-20090

LEVER

RCV, Dozer, ASSY, Incl 2 - 5, 34

1шт.

2

31N6-25060

HYD CONNECTOR,Connector, PF 1/4 x 9/16 - 18 UNF

1шт.

3

X511-104513

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

Long

1шт.

4

31N6-25110

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

5

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

6

31ML-20111

BLOCK

1шт.

7

31N6-25060

HYD CONNECTOR,Connector, PF 1/4 x 9/16 - 18 UNF

2шт.

8

31M9-20110

COVER

1шт.

9

31L7-10270

CLAMP

2шт.

10

P910-042019

HYDRAULIC HOSE

1шт.

11

S109-080206

BOLT

2шт.

12

P910-042020

HYDRAULIC HOSE

1шт.

13

X840-515151

TEE,9/16 - 18 UNF

2шт.

14

P930-042017

HYDRAULIC HOSE

1шт.

15

P910-042047

HYDRAULIC HOSE

1шт.

16

S631-011004

O-RING,PF 1/4

18шт.

17

P910-042050

HYDRAULIC HOSE

1шт.

18

P930-042014

HYDRAULIC HOSE

2шт.

19

P930-042024

HYDRAULIC HOSE

2шт.

20

P930-042027

HYDRAULIC HOSE

2шт.

21

P930-042029

HYDRAULIC HOSE

2шт.

22

S015-080356

BOLT

2шт.

23

S015-080806

BOLT,M8 x 1.25 x 80mm

2шт.

24

S621-012001

O-RING

18шт.

25

S035-081526

BOLT,M8 x 1.25 x 15mm

3шт.

26

S037-102026

BOLT,M10 x 1.5 x 20mm

3шт.

27

S109-100306

BOLT

4шт.

28

S411-080006

WASHER

4шт.

29

S411-100006

WASHER

4шт.

30

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

8шт.

31

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

5шт.

32

31N6-25110

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

33

31L7-10210

CLAMP

1шт.

34

NSS

NOT SOLD SEPARAT

Lever, Dozer, Incl in 1

1шт.
