Запчасти Case CX60C (35.355.050) - JOYSTICK, HYDRAULIC LINE, SELECTOR, VALVE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

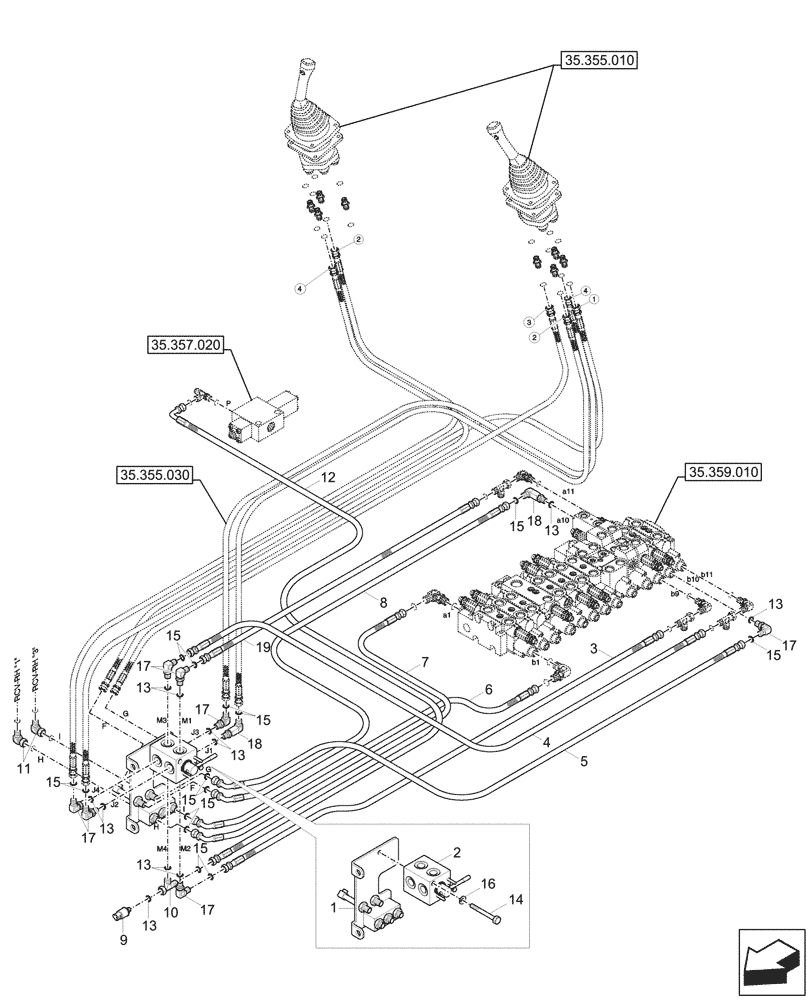

Схема запчастей Case CX60C - (35.355.050) - JOYSTICK, HYDRAULIC LINE, SELECTOR, VALVE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS
35.357.020
1
4
3
13
7
12
15
19
14
13
8
15
15
2
16
17
13
11
15
15
13
13
9
17
15
17
17
10
15
17
18
13
13
15
6
5
18
35.359.010
35.355.030
35.355.010

Артикул

Название

Примечание

Количество

1

31ML-22260

TERMINAL

1шт.

With Pattern Change, Var. 747068

1шт.

2

31N6-22050

VALVE,PF 1/4

1шт.

With Pattern Change, Var. 747068

1шт.

3

31ML-22180

TERMINAL

1шт.

With Pattern Change, Var. 747068

1шт.

4

X400-042017

HYDRAULIC HOSE

1шт.

With Pattern Change, Var. 747068

1шт.

5

X410-042019

HYDRAULIC HOSE

1шт.

6

X410-042011

HYDRAULIC HOSE

1шт.

7

X410-042016

HYDRAULIC HOSE

1шт.

8

X410-042029

HYDRAULIC HOSE

1шт.

9

31Q4-40830

SENSOR

1шт.

With Pattern Change, Var. 747068

1шт.

10

31NA-22310

ELBOW

1шт.

With Pattern Change, Var. 747068

1шт.

11

X850-515100

90 ELBOW

2шт.

12

X420-042038

HYDRAULIC HOSE

1шт.

13

S631-011004

O-RING,PF 1/4

11шт.

14

S015-080806

BOLT,M8 x 1.25 x 80mm

2шт.

With Pattern Change, Var. 747068

1шт.

15

S621-012001

O-RING

14шт.

16

S411-080006

WASHER

2шт.

With Pattern Change, Var. 747068

1шт.

17

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

6шт.

With Pattern Change, Var. 747068

1шт.

18

31N6-25110

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

With Pattern Change, Var. 747068

1шт.

19

X400-042024

HYDRAULIC HOSE

1шт.

With Pattern Change, Var. 747068

1шт.

Выбрано товаров: 30
