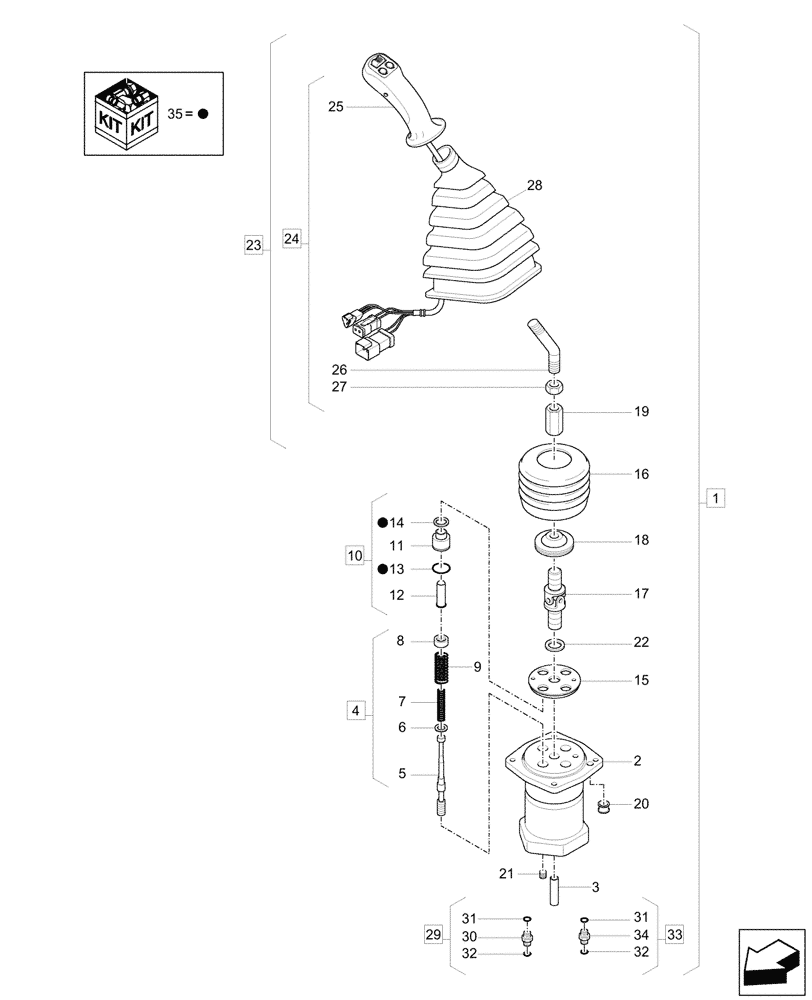

Запчасти Case CX60C (35.355.020) - VAR - 747122 - JOYSTICK, PROPORTIONAL VALVE, REMOTE CONTROL (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
31KA-21111
LH, ASSY, Incl 2 - 4, 9, 10, 15 - 23, 29, 33
JOYSTICK
1шт.
1
31KA-21121
RH, ASSY, Incl 2 - 4, 9, 10, 15 - 23, 29, 33
JOYSTICK
1шт.
2
NSS
NOT SOLD SEPARAT
Case, Incl in 1
1шт.
3
NSS
NOT SOLD SEPARAT
Bushing, Incl in 1
1шт.
4
XKAY-02271
KIT
Spool, ASSY, Incl 5 - 8
1шт.
5
NSS
NOT SOLD SEPARAT
Spool, Incl in 4
4шт.
6
NSS
NOT SOLD SEPARAT
Shim, Incl in 4
1шт.
7
NSS
NOT SOLD SEPARAT
Spring, Incl in 4
4шт.
8
NSS
NOT SOLD SEPARAT
Seat, Incl in 4
4шт.
9
XKAY-01230
SPRING
4шт.
10
XKAY-02272
PLUG
ASSY, Incl 11 - 14
1шт.
11
NSS
NOT SOLD SEPARAT
Plug, Incl in 10
4шт.
12
NSS
NOT SOLD SEPARAT
Rod, Incl in 10
4шт.
13
NSS
NOT SOLD SEPARAT
O-Ring, Incl in 10
4шт.
14
NSS
NOT SOLD SEPARAT
Seal, Incl in 10
4шт.
15
XKAY-02264
SPACER
1шт.
17
XKAY-00049
JOINT
1шт.
19
XKAY-00047
NUT
1шт.
20
XKAY-00074
BUSHING
1шт.
21
NSS
NOT SOLD SEPARAT
Plug, Incl in 1
4шт.
22
XKAY-02265
PLATE
1шт.
23
XKAY-02444
Handle, LH, ASSY, Incl 24, 28
HANDLE
1шт.
23
XKAY-02445
Handle, RH, ASSY, Incl 24, 28
HANDLE
1шт.
24
NSS
NOT SOLD SEPARAT
Handle, RH, ASSY, Incl 25 - 27
1шт.
24
NSS
NOT SOLD SEPARAT
Handle, LH, ASSY, Incl 25 - 27
1шт.
25
NSS
NOT SOLD SEPARAT
Handle, LH, Incl in 24
1шт.
25
NSS
NOT SOLD SEPARAT
Handle, RH, Incl in 24
1шт.
26
NSS
NOT SOLD SEPARAT
Bar, Incl in 24
1шт.
27
NSS
NOT SOLD SEPARAT
Nut, Incl in 24
1шт.
28
NSS
NOT SOLD SEPARAT
Boot, Incl in 23
1шт.
29
XKAY-02260
KIT
Connector, Port P, ASSY, Incl 30 - 32
1шт.
30
NSS
NOT SOLD SEPARAT
Connector, Incl in 29
1шт.
31
NSS
NOT SOLD SEPARAT
O-Ring, Incl in 29, 33
6шт.
32
NSS
NOT SOLD SEPARAT
O-Ring, Incl in 29, 33
6шт.
33
XKAY-02261
KIT
Connector, Port 1, 2, 3, 4, T, ASSY, Incl 31, 32, 34
1шт.
34
NSS
NOT SOLD SEPARAT
Connector, Incl in 33
5шт.
35
XKAY-02259
SEAL KIT
ASSY, Incl 13, 14
1шт.
Выбрано товаров: 39
