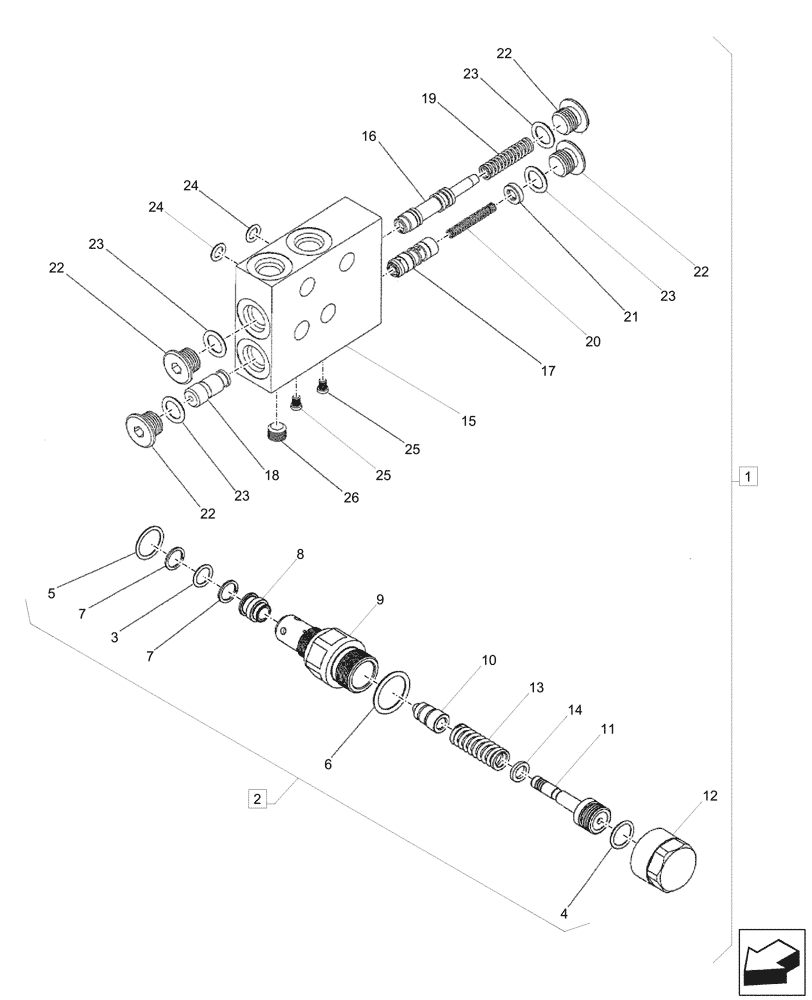

Запчасти Case CX60C (35.352.030) - SWING REDUCTION UNIT, VALVE (35) - HYDRAULIC SYSTEMS

1

XJDK-00170

HYDRAULIC VALVE

Relief, ASSY, Incl 2, 8 - 26

1шт.

2

XJDK-00100

SEAL KIT

ASSY, Incl 3 - 7

1шт.

3

XJDK-00020

O-RING

1шт.

4

XJDK-00030

O-RING

1шт.

5

XJDK-00091

O-RING

1шт.

6

XJDK-00092

O-RING

1шт.

7

XJDK-00093

BACK-UP RING

2шт.

8

NSS

NOT SOLD SEPARAT

Seat, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Retainer, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Poppet, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Piston, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Cap, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Piston, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Stopper, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

22

XJDK-00018

PLUG

4шт.

23

XJDK-00019

O-RING

4шт.

24

XJDK-00058

O-RING

2шт.

25

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

26

XJDK-00172

PLUG

1шт.
