(35.352.010) - SWING REDUCTION UNIT, COMPONENTS

Запчасти Case CX60C (35.352.010) - SWING REDUCTION UNIT, COMPONENTS (35) - HYDRAULIC SYSTEMS

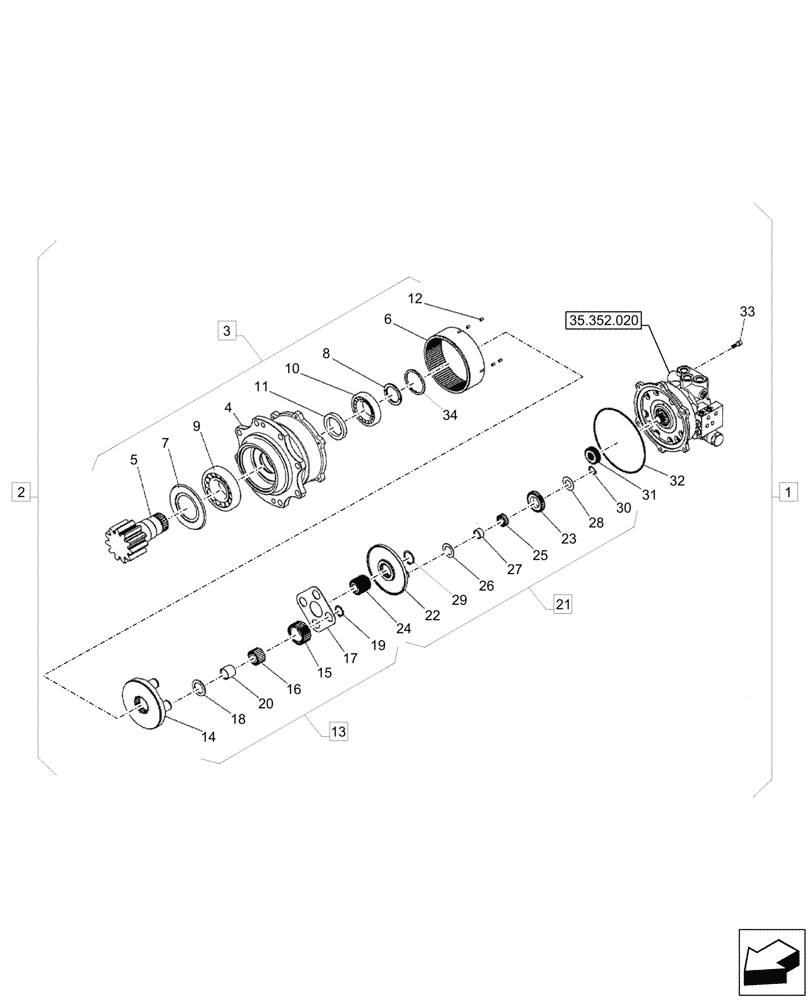

Схема запчастей Case CX60C - (35.352.010) - SWING REDUCTION UNIT, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.352.020
22
9
18
6
14
20
15
1
10
32
27
7
29
4
19
34
23
28
8
3
31
5
30
16
13
25
2
12
24
33
11
26
21
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

31M9-10170

HYDRAULIC MOTOR

Swing, ASSY, Incl 2

1шт.

2

XJDK-00162

GEAR

Reduction, ASSY, Incl 3, 13, 21, 31 - 34

1шт.

3

XJDK-00173

PINION

Kit, ASSY, Incl 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

Body, Incl in 3

1шт.

5

NSS

NOT SOLD SEPARAT

Pinion Shaft, Incl in 3

1шт.

6

NSS

NOT SOLD SEPARAT

Internal Gear, Incl in 3

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Incl in 3

1шт.

8

NSS

NOT SOLD SEPARAT

Collar, Incl in 3

2шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Incl in 3

1шт.

10

NSS

NOT SOLD SEPARAT

Bearing, Incl in 3

1шт.

11

NSS

NOT SOLD SEPARAT

Oil Seal, Incl in 3

1шт.

12

NSS

NOT SOLD SEPARAT

Pin, Incl in 3

4шт.

13

XJDK-00174

CARRIER

1, Kit, ASSY, Incl 14 - 20

1шт.

14

NSS

NOT SOLD SEPARAT

Carrier, Incl in 13

1шт.

15

NSS

NOT SOLD SEPARAT

Gear B1, Incl in 13

4шт.

16

NSS

NOT SOLD SEPARAT

Needle, Incl in 13

92шт.

17

NSS

NOT SOLD SEPARAT

Plate, Incl in 13

1шт.

18

NSS

NOT SOLD SEPARAT

Washer, Incl in 13

4шт.

19

XJDK-00046

SNAP RING

4шт.

20

NSS

NOT SOLD SEPARAT

Ring, Incl in 13

4шт.

21

XJDK-00175

CARRIER

2, Kit, ASSY, Incl 22 - 30

1шт.

22

NSS

NOT SOLD SEPARAT

Carrier, Incl in 21

1шт.

23

NSS

NOT SOLD SEPARAT

Gear B2, Incl in 21

3шт.

24

NSS

NOT SOLD SEPARAT

Gear S1, Incl in 21

1шт.

25

NSS

NOT SOLD SEPARAT

Needle, Incl in 21

69шт.

26

NSS

NOT SOLD SEPARAT

Washer, Incl in 21

3шт.

27

NSS

NOT SOLD SEPARAT

Ring, Incl in 21

3шт.

28

NSS

NOT SOLD SEPARAT

Washer, Incl in 21

3шт.

29

NSS

NOT SOLD SEPARAT

Ring, Incl in 21

1шт.

30

NSS

NOT SOLD SEPARAT

Ring, Incl in 21

3шт.

31

XJDK-00159

GEAR

1шт.

32

XJDK-00160

O-RING

1шт.

33

XJDK-00106

SCREW

6шт.

34

XJDK-00161

RING

1шт.
