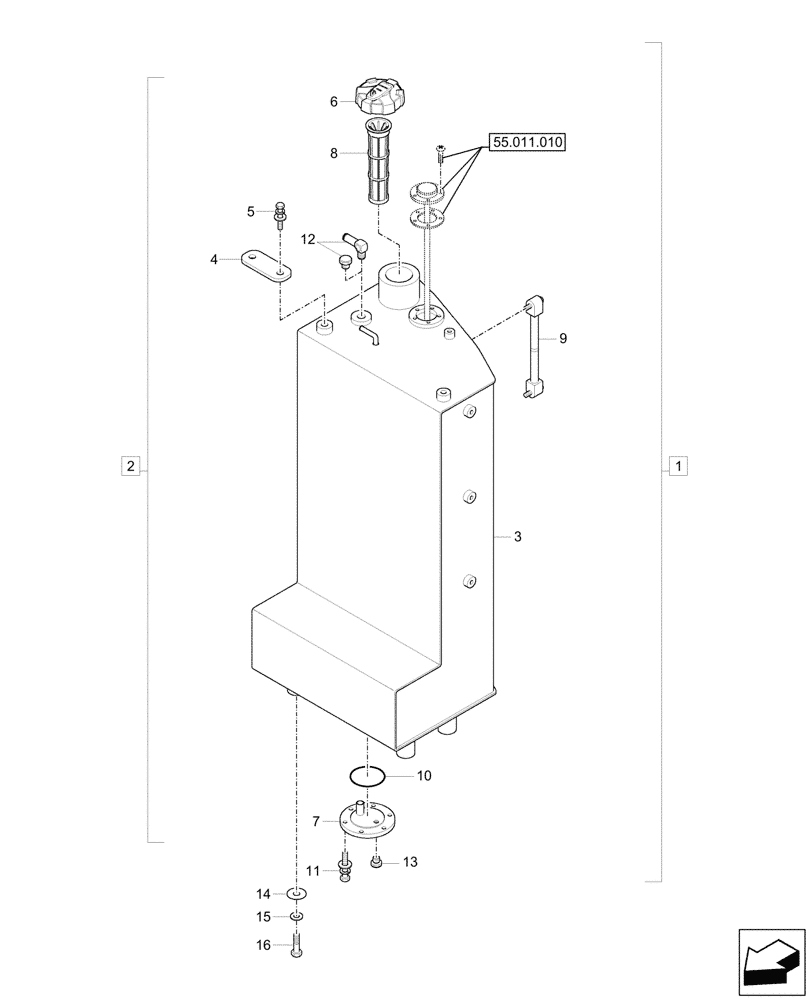

Запчасти Case CX60C (10.216.010) - FUEL TANK, COMPONENTS (10) - ENGINE

1

3KML-03100

TANK

ASSY, Hydraulic Oil and Fuel Tank, Incl 2, 8 - 13

1шт.

2

3LML-03100

TANK

ASSY, Hydraulic Oil and Fuel Tank, Incl 3 - 7

1шт.

3

33ML-02012CG

FUEL TANK

1шт.

4

31ML-01161CG

PLATE

1шт.

5

S037-122526

BOLT

2шт.

6

3LML-02130

CAP

1шт.

7

35M9-02160CG

COVER

1шт.

8

31QA-02080

FILTER STRAINER

1шт.

9

33Q6-02600

FUEL GAUGE

1шт.

10

S632-080001

O-RING

1шт.

11

S035-082526

BOLT,M8 x 1.25 x 25mm

6шт.

12

P220-430103

PLUG

1шт.

Without Fuel Lift Pump, Var. 747091

1шт.

12

11M6-51190

ELBOW

1шт.

With Fuel Lift Pump, Var. 747092

1шт.

13

P220-110102

PLUG

1шт.

14

31N8-01300

SHIM

1.0mm Thk

4шт.

15

S441-160006

WASHER

4шт.

16

S017-16055D

BOLT

4шт.
