/ / / / / / / / (90.150.030) - CAB, TILTABLE

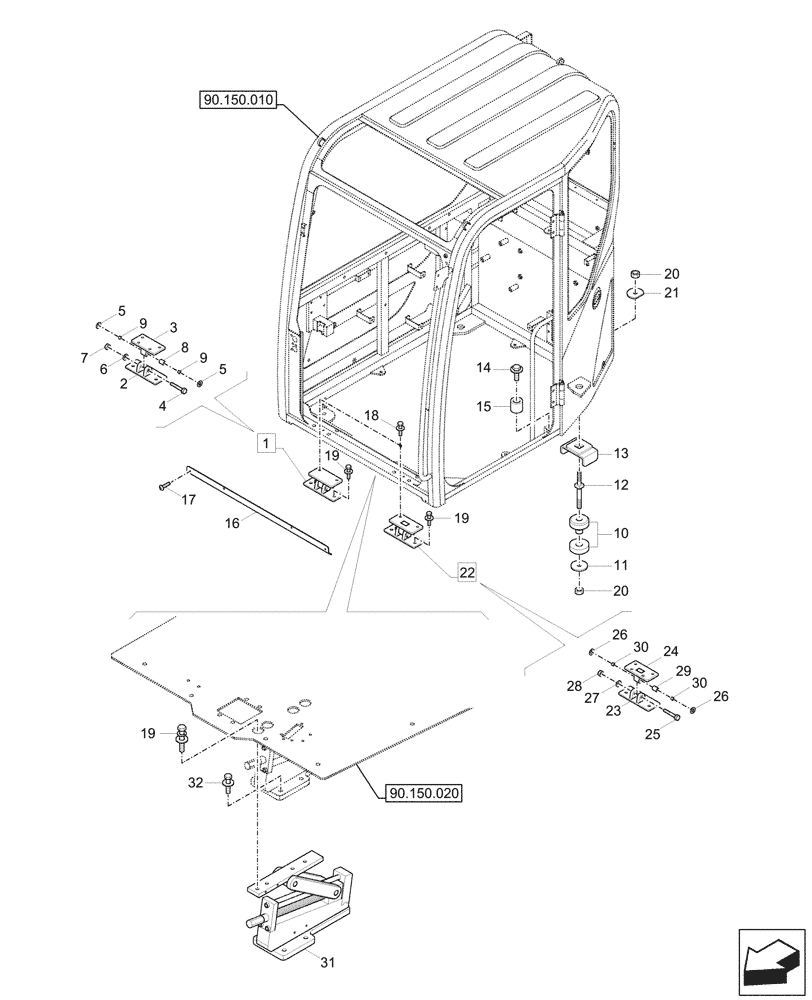

Запчасти Case CX60C (90.150.030) - CAB, TILTABLE (90) - PLATFORM, CAB, BODYWORK AND DECALS
31
9
30
30
13
9
8
25
21
10
3
27
26
2
29
12
6
19
28
32
4
22
5
24
19
19
7
26
17
11
20
15
20
16
18
14
23
1
5
90.150.020
90.150.010
1
71ML-04012
HINGE
RH, ASSY, Incl 2 - 9
1шт.
2
NSS
NOT SOLD SEPARAT
Hinge, Incl in 1
1шт.
3
NSS
NOT SOLD SEPARAT
Hinge, Incl in 1
1шт.
4
NSS
NOT SOLD SEPARAT
Pin, Incl in 1
1шт.
5
NSS
NOT SOLD SEPARAT
Shim, Incl in 1
2шт.
6
S441-160006
WASHER
2шт.
7
S275-160006
NUT
1шт.
8
NSS
NOT SOLD SEPARAT
Rubber Seal, Incl in 1
1шт.
9
S731-016020
BUSHING
2шт.
10
71FQ-34010
RUBBER MOUNTING
2шт.
11
71M8-01950
WASHER
2шт.
12
71ML-00811
BOLT
2шт.
13
71ML-01681CG
PLATE
2шт.
14
71M8-02080
BOLT
1шт.
15
71M8-02090
PIPE
1шт.
16
71ML-03511CG
COVER
1шт.
17
S002-06015B
SCREW
4шт.
18
S037-122556
BOLT
4шт.
19
S037-123056
BOLT
14шт.
20
S205-12100B
NUT
4шт.
21
71ML-01970
WASHER
2шт.
22
71ML-04100
HINGE
LH, ASSY, Incl 23 - 30
1шт.
23
NSS
NOT SOLD SEPARAT
Hinge, Incl in 22
1шт.
24
NSS
NOT SOLD SEPARAT
Hinge, Incl in 22
1шт.
25
NSS
NOT SOLD SEPARAT
Pin, Incl in 22
1шт.
26
NSS
NOT SOLD SEPARAT
Shim, Incl in 22
2шт.
27
S441-160006
WASHER
1шт.
28
S275-160006
NUT
2шт.
29
NSS
NOT SOLD SEPARAT
Rubber Seal, Incl in 22
1шт.
30
S731-016020
BUSHING
2шт.
31
71ML-12162
ACTUATOR
Tilt ASSY
1шт.
32
S037-124556
BOLT
W/ Washer
4шт.
