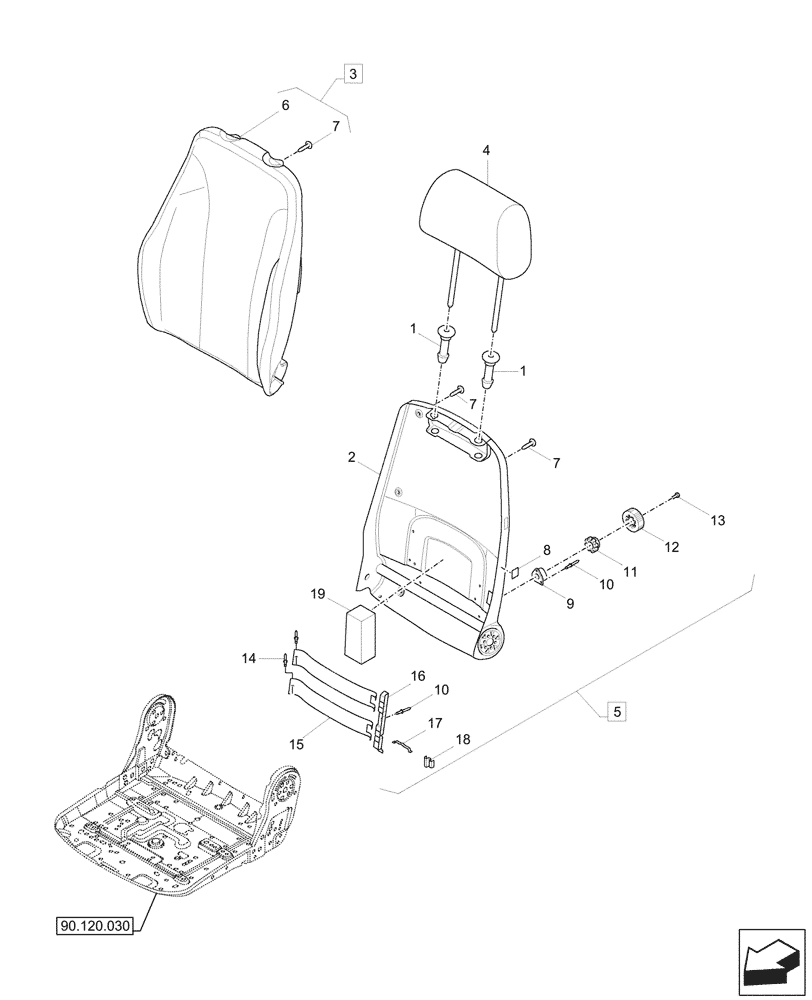

Запчасти Case CX60C (90.120.040) - DRIVER SEAT, BACKREST (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

ZGBH-00004

BUSHING

2шт.

2

ZGBH-00166

BACKREST

1шт.

3

ZGBH-00251

SEAT CUSHION

ASSY, Incl 6, 7

1шт.

4

ZGBH-00165

SEAT HEADREST

1шт.

5

ZGBH-00241

SUPPORT

ASSY, Incl 8 - 19

1шт.

6

NSS

NOT SOLD SEPARAT

Cushion, Incl in 3

1шт.

7

NSS

NOT SOLD SEPARAT

Screw, Incl in 3

6шт.

8

NSS

NOT SOLD SEPARAT

Sticker, Incl in 5

1шт.

9

NSS

NOT SOLD SEPARAT

Brake Spring, Incl in 5

1шт.

10

NSS

NOT SOLD SEPARAT

Rivet, Incl in 5

3шт.

11

NSS

NOT SOLD SEPARAT

Wheel, Incl in 5

1шт.

12

NSS

NOT SOLD SEPARAT

Handle, Incl in 5

1шт.

13

NSS

NOT SOLD SEPARAT

Screw, Incl in 5

1шт.

14

NSS

NOT SOLD SEPARAT

Rivet, Incl in 5

3шт.

15

NSS

NOT SOLD SEPARAT

Plate, Incl in 5

2шт.

16

NSS

NOT SOLD SEPARAT

Winkel, Incl in 5

1шт.

17

NSS

NOT SOLD SEPARAT

Rods, Incl in 5

1шт.

18

NSS

NOT SOLD SEPARAT

Carrier, Incl in 5

1шт.

19

NSS

NOT SOLD SEPARAT

Sponge, Incl in 5

1шт.
