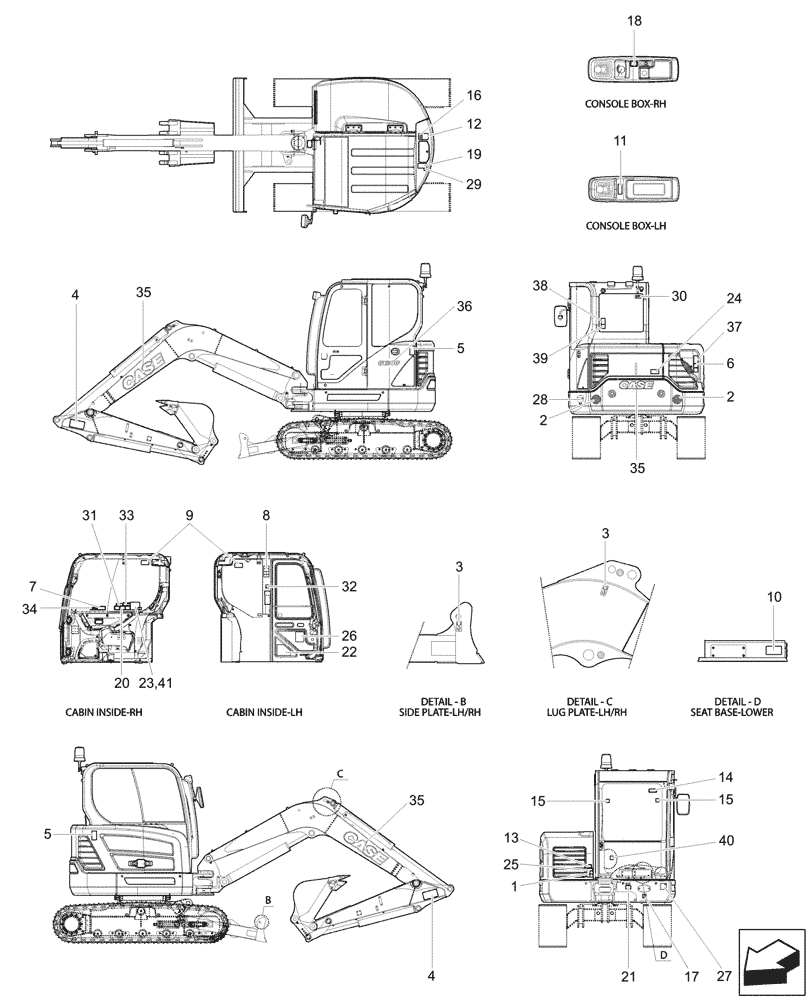

Запчасти Case CX60C (90.108.010) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

91N6-02122

Battery Accident

DECAL

1шт.

2

91ML-04020

DECAL

Reflecting

2шт.

3

91M8-05110

DECAL

Lifting Point

4шт.

4

91M8-06111

Keep Clear, Attachment

DECAL

2шт.

5

91M8-07021

Keep Clear, Side

DECAL

2шт.

6

91M8-07111

Caution, ENG

DECAL

1шт.

7

97Q1-17300

DECAL

Control, Boom Swing

1шт.

1St Aux Single Act (Hammer), Var. 747093

1шт.

7

97Q1-17310

Control, Boom / Swing, 2 Way

DECAL

1шт.

1St Aux 2-Way Joystick, Var. 747122

1шт.

8

91M9-07243

Cautions Cab

DECAL

1шт.

9

91M8-07251

Safety Front Window

DECAL

2шт.

10

91M8-07270

DECAL

A/C Filter

1шт.

11

91M8-07300

DECAL

Console Tilting

1шт.

12

91N6-03112

Hydraulic Oil

DECAL

1шт.

13

91MJ-02110

DECAL

Battery Position

1шт.

14

91M9-07150

DECAL

Wiper Window, Front

1шт.

15

91M9-07112

Stay Fix Cab

DECAL

2шт.

16

91Q6-03230

DECAL

Fuel Shut Off

1шт.

17

91ML-04710

DECAL

Stay Fix Cab

1шт.

18

91M9-07391

Ideogram

DECAL

1шт.

19

91M8-01140

DECAL

Fueling

1шт.

20

91ML-04111

DECAL

Warning, Frame

1шт.

21

91MJ-04110

DECAL

Grease

1шт.

22

97ML-17174

Service Instruction

DECAL

1шт.

23

9MM9-03100

Lifting Chart, ASSY, Incl 41

DECAL

1шт.

Std Counterweight, Var. 747995

1шт.

23

9MM9-03200

Lifting Chart, ASSY, Incl 41

DECAL

1шт.

Add Counterweight Heavy, Var. 747084

1шт.

24

91M8-07011

Keep Clear, Rear

DECAL

1шт.

25

91S8-01350

DECAL

ECM Connector

1шт.

26

9LM9-07370

Control, Cab

DECAL

1шт.

With Pattern Change, Var. 747068

1шт.

27

91N6-22070

DECAL

Noise, LWA 97 DB

1шт.

28

91N6-03201

Accumulator

DECAL

1шт.

29

98Q6-07390

DECAL

Ultra Low Sulfur Diesel

1шт.

30

91Q4-02201

Beacon

DECAL

1шт.

With Beacon, Var. 747070

1шт.

31

91Q4-07180

DECAL

Water Separator

1шт.

32

91Q6-07280

DECAL

Hammer

1шт.

33

91ML-07720

DECAL

Cab, Tilt / Caution

1шт.

34

97M9-07380

DECAL

Lubrication Oil

1шт.

35

9MM9-23100

Case, 135 x 591.3mm

DECAL

3шт.

36

9MM9-10020

CX60C

DECAL

2шт.

37

91M9-07200

Refrigerant

DECAL

1шт.

38

91Q6-07290

DECAL

Fire Extinguisher

1шт.

With Fire Extinguisher, Var. 747095

1шт.

39

9KM9-07260

Safety Rear Window

DECAL

1шт.

40

9KM9-07210

Master Switch

DECAL

1шт.

41

9MM9-03110

DECAL

1шт.

Std Counterweight, Var. 747995

1шт.

Short Arm (1.48M), Var. 747320

1шт.

Rubber Track, Var. 9552711

1шт.

41

9MM9-03120

DECAL

1шт.

Std Counterweight, Var. 747995

1шт.

Rubber Track, Var. 9552711

1шт.

Long Arm (1.9M), Var. 747329

1шт.

41

9MM9-03130

DECAL

1шт.

Std Counterweight, Var. 747995

1шт.

Short Arm (1.48M), Var. 747320

1шт.

Rubber Pad, Var. 9552710

1шт.

41

9MM9-03140

DECAL

1шт.

Std Counterweight, Var. 747995

1шт.

Long Arm (1.9M), Var. 747329

1шт.

Rubber Pad, Var. 9552710

1шт.

41

9MM9-03160

DECAL

1шт.

Std Counterweight, Var. 747995

1шт.

Long Arm (1.9M), Var. 747329

1шт.

Track Pad, Var. 9552611, 9552612

1шт.

41

9MM9-03220

DECAL

1шт.

Rubber Track, Var. 9552711

1шт.

Long Arm (1.9M), Var. 747329

1шт.

Add Counterweight Heavy, Var. 747084

1шт.

41

9MM9-03240

DECAL

1шт.

Long Arm (1.9M), Var. 747329

1шт.

Rubber Pad, Var. 9552710

1шт.

Add Counterweight Heavy, Var. 747084

1шт.

41

9MM9-03260

DECAL

1шт.

Long Arm (1.9M), Var. 747329

1шт.

Add Counterweight Heavy, Var. 747084

1шт.

Track Chain, Var. 9552610

1шт.
