(90.105.020) - INSPECTION DOOR

Запчасти Case CX60C (90.105.020) - INSPECTION DOOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

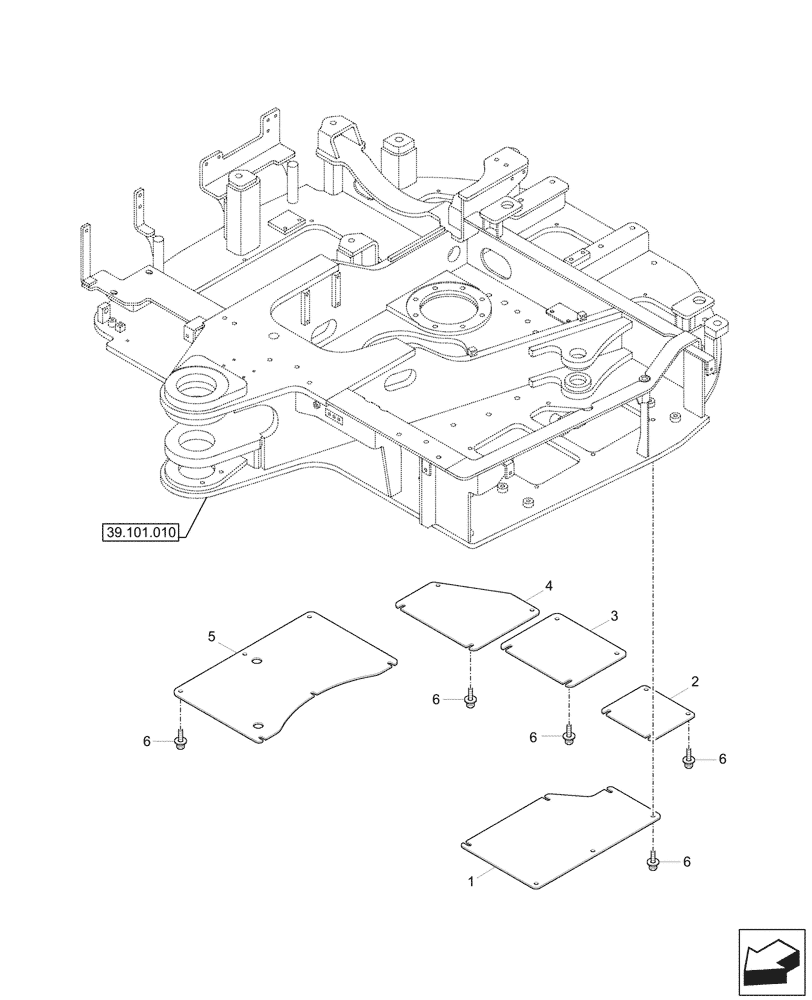

Схема запчастей Case CX60C - (90.105.020) - INSPECTION DOOR (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.101.010
1
3
6
4
6
6
2
5
6
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

41ML-10011CG

COVER

Main Control Valve

1шт.

2

41ML-10021CG

COVER

Fuel Tank

1шт.

3

41ML-10031CG

COVER

Hydraulic Tank

1шт.

4

41ML-10041CG

COVER

Pump

1шт.

5

41ML-10052CG

COVER

Engine

1шт.

6

S035-081556

BOLT

24шт.
