(55.512.010) - CONSOLE, ELECTRONIC CONTROLS

Запчасти Case CX60C (55.512.010) - CONSOLE, ELECTRONIC CONTROLS (55) - ELECTRICAL SYSTEMS

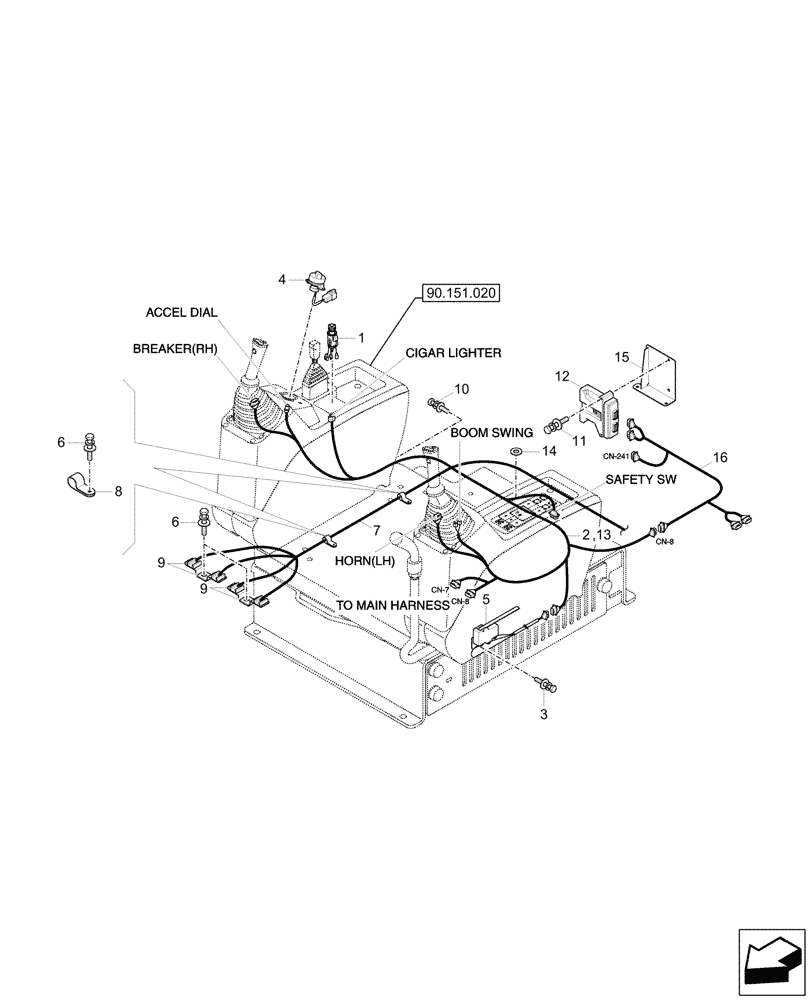

Схема запчастей Case CX60C - (55.512.010) - CONSOLE, ELECTRONIC CONTROLS (55) - ELECTRICAL SYSTEMS
90.151.020
14
11
2
3
4
5
9
13
12
9
15
6
6
1
8
10
7
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

21S4-01110

CIGARETTE LIGHTER

1шт.

2

21Q1-40601

WIRE HARNESS

Console

1шт.

Auxiliary, Hammer, Var. 747093

1шт.

3

S035-062026

BOLT

4шт.

4

21Q4-20812

THROTTLE

1шт.

5

21M9-20920

SWITCH

Limit

1шт.

6

S037-102026

BOLT,M10 x 1.5 x 20mm

5шт.

7

21ML-20302

WIRE HARNESS

Bottom

1шт.

8

31L7-10200

CLAMP,25mm ID

2шт.

9

21N4-01130

PLATE

7шт.

10

S035-082026

BOLT,M8 x 1.25 x 20mm

2шт.

11

S035-066526

BOLT,M6 x 1 x 65m

2шт.

Auxiliary, Joystick, Var. 747122

1шт.

12

21Q9-90100

CONTROLLER

PVG32

1шт.

Auxiliary, Joystick, Var. 747122

1шт.

13

21ML-40600

WIRE HARNESS

Console

1шт.

Auxiliary, Joystick, Var. 747122

1шт.

14

S403-162006

WASHER

1шт.

Auxiliary, Joystick, Var. 747122

1шт.

15

21ML-95361

BRACKET

1шт.

Auxiliary, Joystick, Var. 747122

1шт.

16

21ML-41301

WIRE HARNESS

EX-EPPR

1шт.

Auxiliary, Joystick, Var. 747122

1шт.

Выбрано товаров: 23
