Запчасти Case CX60C (55.510.010) - CAB ROOF, RADIO, ROOM LAMP, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

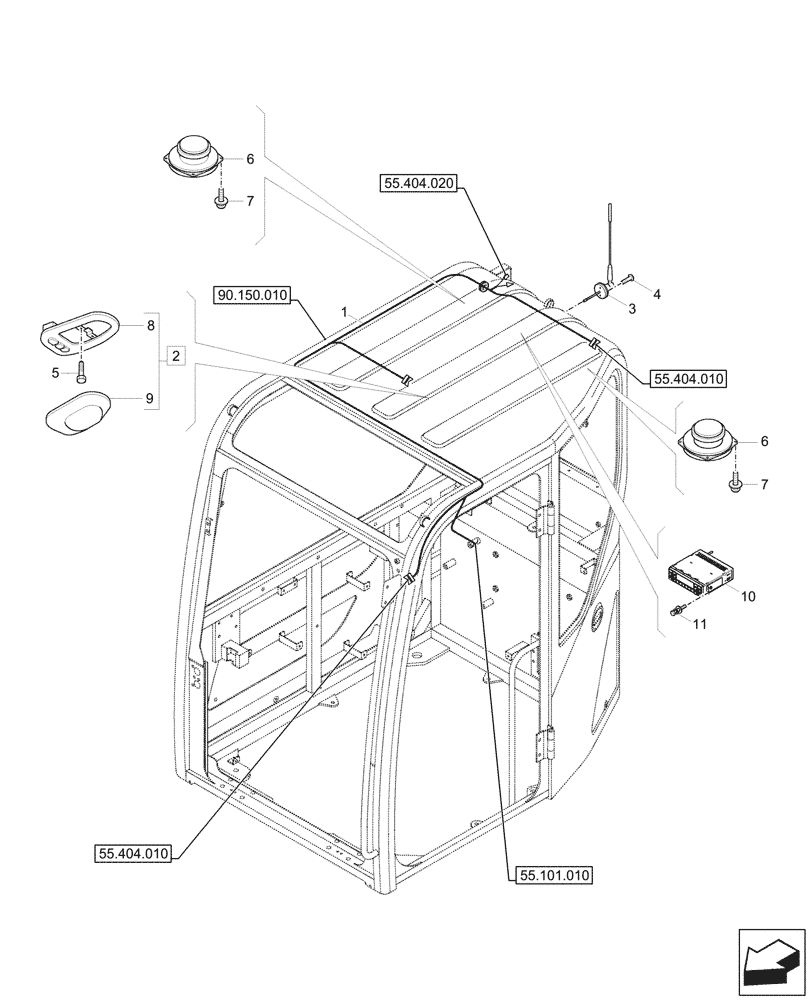

Схема запчастей Case CX60C - (55.510.010) - CAB ROOF, RADIO, ROOM LAMP, WIRE HARNESS (55) - ELECTRICAL SYSTEMS
55.101.010
2
5
9
11
55.404.010
6
7
1
7
3
8
6
55.404.010
4
10
90.150.010
55.404.020

Артикул

Название

Примечание

Количество

1

21ML-44202

ELECTRIC CABLE

1шт.

2

21M9-36140

LAMP BASE

12V, ASSY, Incl 8, 9

1шт.

3

21N6-10410

ANTENNA

1шт.

4

S151-040156

SCREW

2шт.

5

S035-061526

BOLT

2шт.

6

21LB-20401

SPEAKER

2шт.

7

S131-041616

SCREW

8шт.

8

NSS

NOT SOLD SEPARAT

Room Lamp, Incl in 2

1шт.

9

NSS

NOT SOLD SEPARAT

Cover Lamp, Incl in 2

1шт.

10

21M9-16000

RADIO

1шт.

Radio and USB, Var. 747992

1шт.

11

S131-051546

CAPTIVE WASHER SCREW

6шт.

Выбрано товаров: 12
