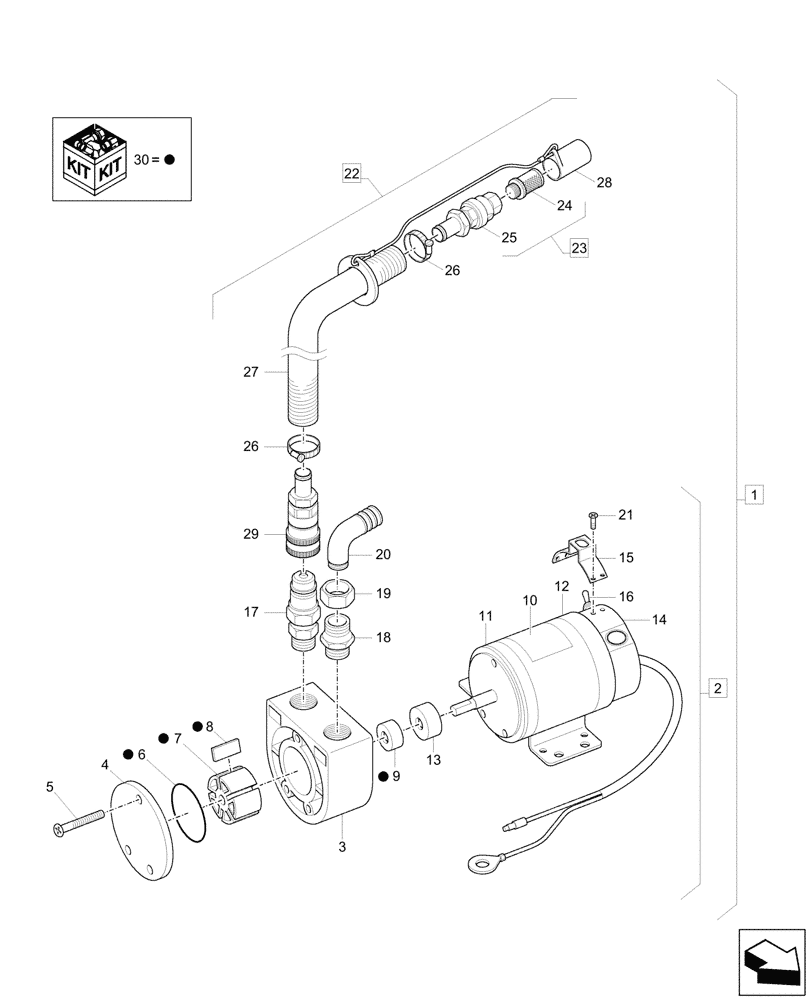

Запчасти Case CX60C (55.011.020) - VAR - 747092 - FUEL TRANSFER PUMP (55) - ELECTRICAL SYSTEMS

1

21ML-60050

SERVICE KIT

ASSY, Incl 2, 22

1шт.

2

21ML-60060

HYDRAULIC PUMP

ASSY, Incl 3 - 21

1шт.

3

NSS

NOT SOLD SEPARAT

Body, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Cover, Incl in 2

1шт.

5

NSS

NOT SOLD SEPARAT

Screw, Incl in 2

1шт.

6

21EM-45050

O-RING

1шт.

7

21EM-45061

ROTOR

1шт.

8

21EM-45071

PLATE

5шт.

9

21EM-45080

SEAL

1шт.

10

21EM-45091

DECAL

1шт.

11

NSS

NOT SOLD SEPARAT

Cover, Front, Incl in 2

1шт.

12

NSS

NOT SOLD SEPARAT

Cover, Rear, Incl in 2

1шт.

13

NSS

NOT SOLD SEPARAT

Bearing, Incl in 2

1шт.

14

21EM-45100

TOOL BOX

1шт.

15

NSS

NOT SOLD SEPARAT

Cover, Incl in 2

1шт.

16

NSS

NOT SOLD SEPARAT

Switch, Incl in 2

4шт.

17

31M8-50015

CHECK VALVE

1шт.

18

33G8-17003B

FITTING

3шт.

19

21EM-45800

NUT

3шт.

20

21EM-45900

ELBOW

1шт.

21

NSS

NOT SOLD SEPARAT

Screw, Incl in 2

4шт.

22

21ML-60070

HOSE

ASSY, Incl 23, 26 - 29

1шт.

23

33D8-04015-01

HYDRAULIC VALVE

ASSY, Incl 24, 25

1шт.

24

33L1-17001

SCREEN

1шт.

25

NSS

NOT SOLD SEPARAT

Valve, Incl in 23

1шт.

26

S520-027000

HOSE CLAMP

1шт.

27

21M5-51143

FUEL HOSE

1шт.

28

21EM-46300

CAP

1шт.

29

21K4-51110

CHECK VALVE

1шт.

30

21EM-46201

SERVICE KIT

ASSY, Incl 6 - 9

1шт.
