/ / / / / / / / (48.120.030) - VAR - 9552711 - ROLLER, RUBBER TRACK (400MM)

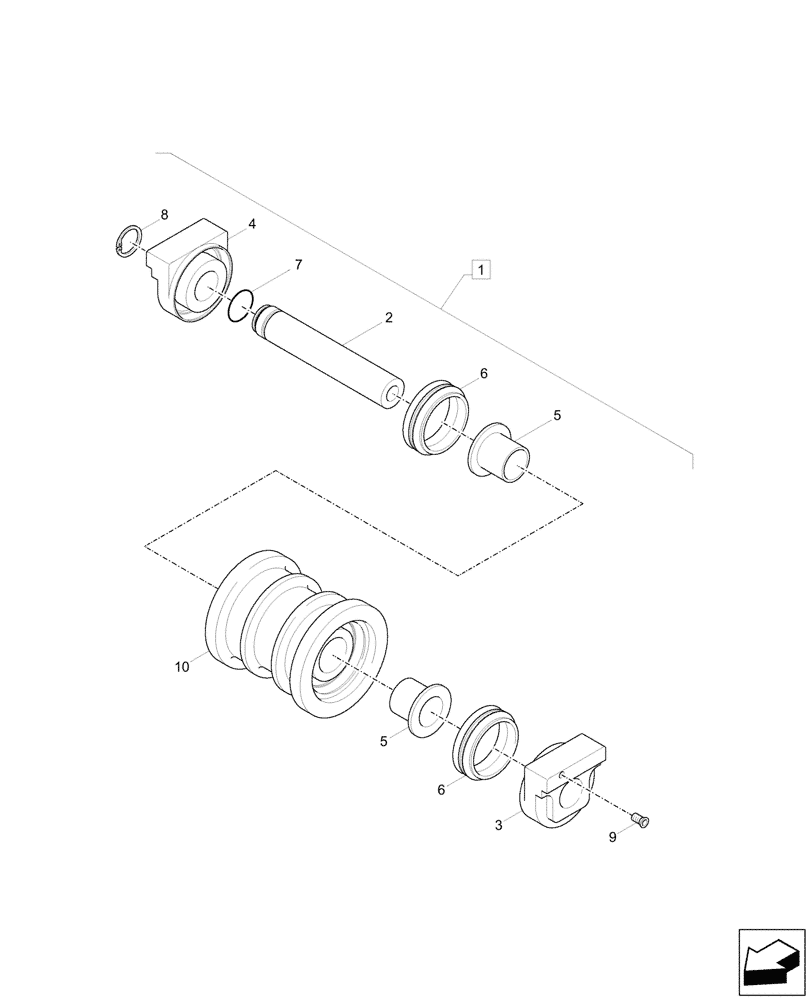

Запчасти Case CX60C (48.120.030) - VAR - 9552711 - ROLLER, RUBBER TRACK (400MM) (48) - TRACKS & TRACK SUSPENSION
9
2
6
5
8
10
5
6
4
7
1
3
1
8LM8-12010CG
ROLLER
ASSY, Incl 2 - 10
12шт.
2
81M8-11110
SHAFT
1шт.
3
81M8-11120
SUPPORT
LH
1шт.
4
81M8-11130
SUPPORT
RH
1шт.
5
81M5-55052
BUSHING
2шт.
6
81M5-55041
SEAL
2шт.
7
S632-030001
O-RING
1шт.
8
S601-030004
RING
1шт.
9
P220-430201
PLUG
1шт.
10
NSS
NOT SOLD SEPARAT
Roller, Incl in 1
1шт.
