(35.737.030) - VAR - 747081 - DIPPER CYLINDER, SAFETY VALVE, LINE

Запчасти Case CX60C (35.737.030) - VAR - 747081 - DIPPER CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS

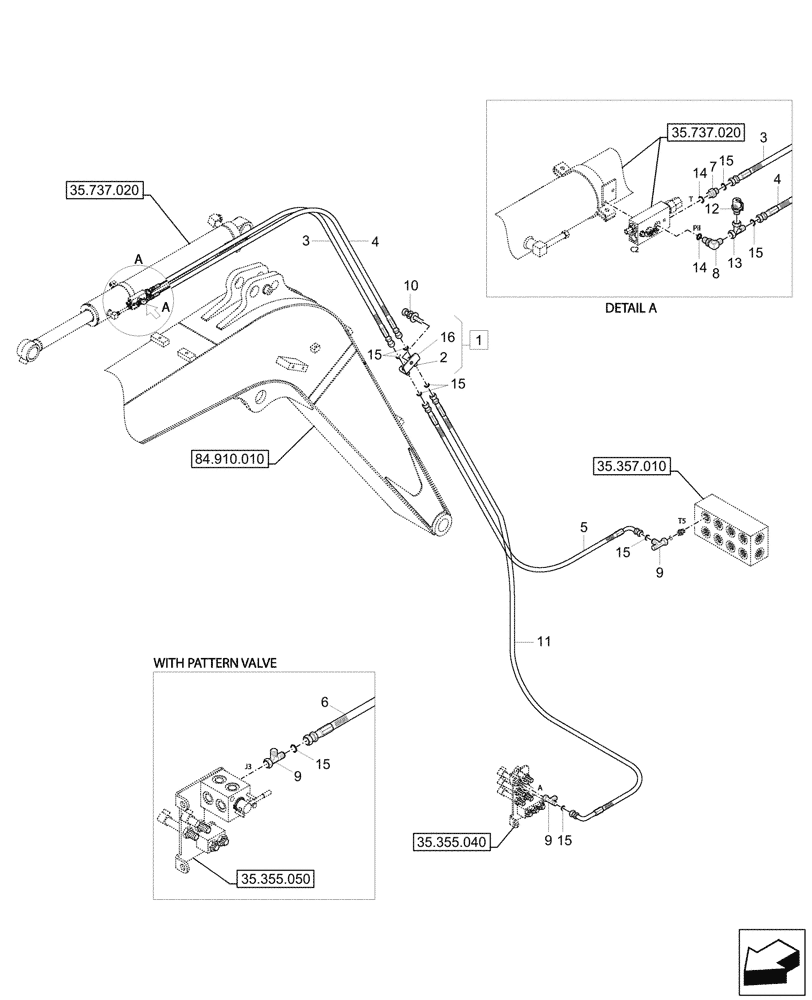

Схема запчастей Case CX60C - (35.737.030) - VAR - 747081 - DIPPER CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS
14
14
15
15
5
3
11
3
9
13
2
12
10
15
16
8
15
15
4
9
7
4
9
15
15
1
84.910.010
35.737.020
35.737.020
35.355.050
6
35.355.040
35.357.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

31M8-90131

TERMINAL

ASSY, Incl 2, 16

1шт.

2

X540-120001

HYD CONNECTOR

2шт.

3

P910-042044

HYDRAULIC HOSE

1шт.

4

P910-042045

HYDRAULIC HOSE

1шт.

5

31ML-96650

HOSE

1шт.

6

31ML-96660

HOSE

1шт.

With Pattern Change, Var. 747068

1шт.

7

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

1шт.

8

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

9

X840-515151

TEE,9/16 - 18 UNF

2шт.

10

S037-102016

BOLT

1шт.

11

31ML-96620

HOSE

1шт.

Without Pattern Change, Var. 747069

1шт.

12

31EK-11130

SCREW,M16

1шт.

13

31N6-66080

TEE

1шт.

14

S631-011004

O-RING,PF 1/4

2шт.

15

S621-011001

O-RING,9/16 - 18 UNF

8шт.

16

NSS

NOT SOLD SEPARAT

Terminal, Incl in 1

1шт.
