(35.736.030) - VAR - 747083 - BOOM CYLINDER, SAFETY VALVE, LINE

Запчасти Case CX60C (35.736.030) - VAR - 747083 - BOOM CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS

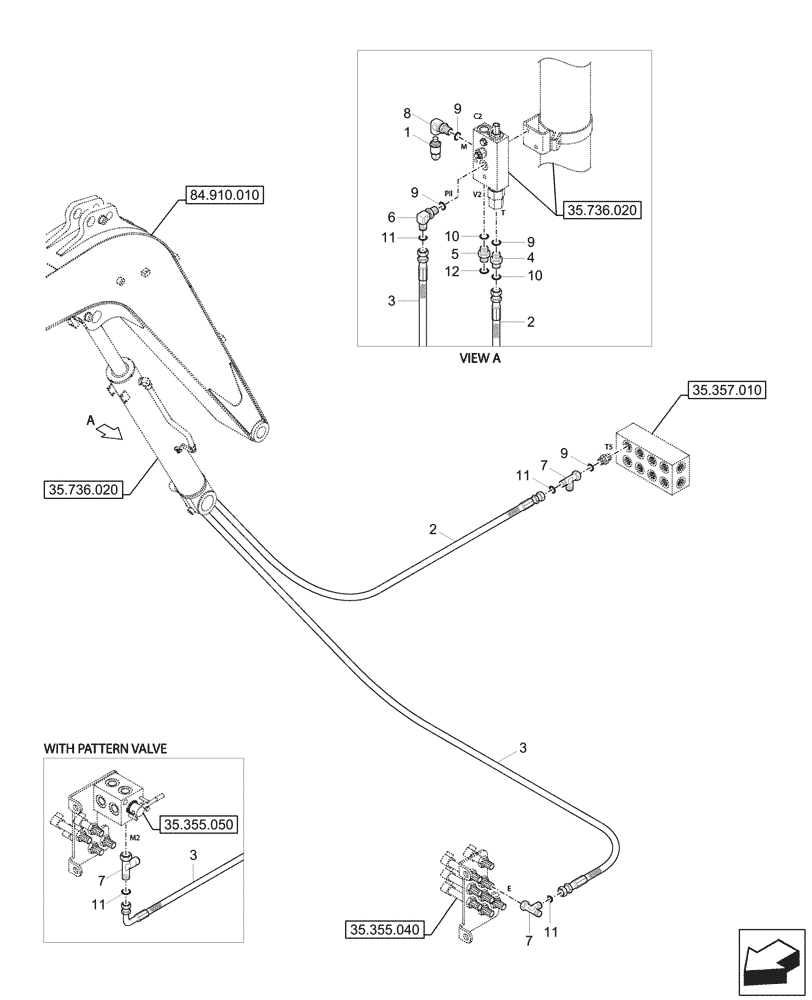

Схема запчастей Case CX60C - (35.736.030) - VAR - 747083 - BOOM CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS
84.910.010
11
7
7
2
4
11
10
9
8
2
3
9
7
6
3
1
10
5
11
3
11
9
9
12
35.736.020
35.736.020
35.355.050
35.355.040
35.357.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

31Q4-40800

SENSOR

Pressure

1шт.

2

P910-042044

HYDRAULIC HOSE

1шт.

3

P930-042068

HYDRAULIC HOSE

1шт.

With Pattern Change, Var. 747068

1шт.

3

P910-042068

HYDRAULIC HOSE

1шт.

Without Pattern Change, Var. 747069

1шт.

4

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

1шт.

5

X500-110003

HYD CONNECTOR,PF 1/2 x 13/16 - 16 UNF

1шт.

6

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

7

X840-515151

TEE,9/16 - 18 UNF

2шт.

8

31E5-11110

ADAPTER

1шт.

9

S631-011004

O-RING,PF 1/4

4шт.

10

S631-018004

O-RING

1шт.

11

S621-011001

O-RING,9/16 - 18 UNF

5шт.

12

S621-014001

O-RING

1шт.
